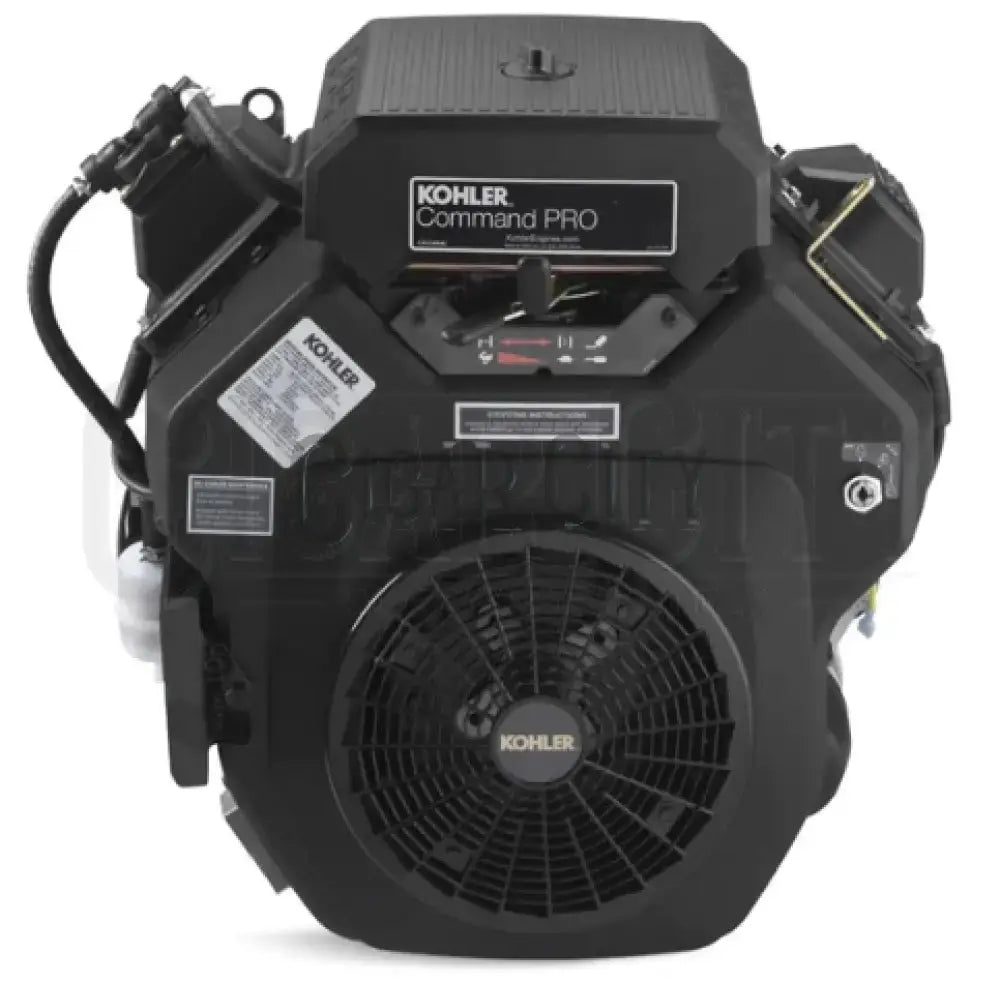

Kohler CH730 Bare Engine

Kohler CH730 Bare Engine

23.5 hp, Kohler Command Pro Engine, 725cc, CH730-3000, 1 1/8" x 4" Crankshaft,

Replaces Old Kohler Engine Spec# 68503, 68591, 68518, CH730-0039,, CH730-3201, PSCH730-0039, CH730-3300

This engine is derated on paper for 23.5, but is really a 25hp unit.

• Overhead Valve Design
• Hydraulic Valve Lifters
• Engine Mounted Oil Cooler
• Cast-Iron Cylinder Liners
• PTO Sleeve Bearing (Side Load)
• Electronic Ignition
• Large Capacity Dual Element Air Cleaner
• High Efficiency Grass Screen and Fan
• Closed Breather System
• Stellite Exhaust Valves
• Full Pressure Lubrication
• Large Capacity In-Line Fuel Filter
• Easy Access Valve Cover Oil Fill-Yellow
• Oil Level Dipstick-Yellow
• Large Capacity Oil Filter, Dual Oil Drain
• Oil Sentry (Switch Installed and Wired but Unconnected)
• Variable Speed Governor
• High Performance Accelerator Pump Carburetor
• Fuel Shutdown Solenoid, Smart-Choke Carburetor
• Mechanical Fuel Pump
• High Performance Spark Plugs
• 12 Volt Solenoid Shift Starter
• 20 Amp Alternator, Regulated
• Fixed Grass Screen Guard
• Engine Controls- Key Switch, Throttle and Choke Controls
• Crankshaft- 2401402, 24014345, 1.125 inch (1 1/8 inch)(28.575 mm) Diameter x 4.0 inch (101.5 mm) PTO Length, 0.25 inch (1/4) (9.5 mm) Keyway, Drilled and Tapped 1.5 inch (38 mm) Deep, 7/16-20 UNF
• PTO Face-5.625 inch (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 inch  (17 mm) Deep, 7.75 inch (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 inch (21 mm) Deep
• 7 inch (178 mm) Diameter Pilot
• Old UPC 650531985101 CH730-3201
