X-Jet M5 Injection System

Xjet m5 Twist System

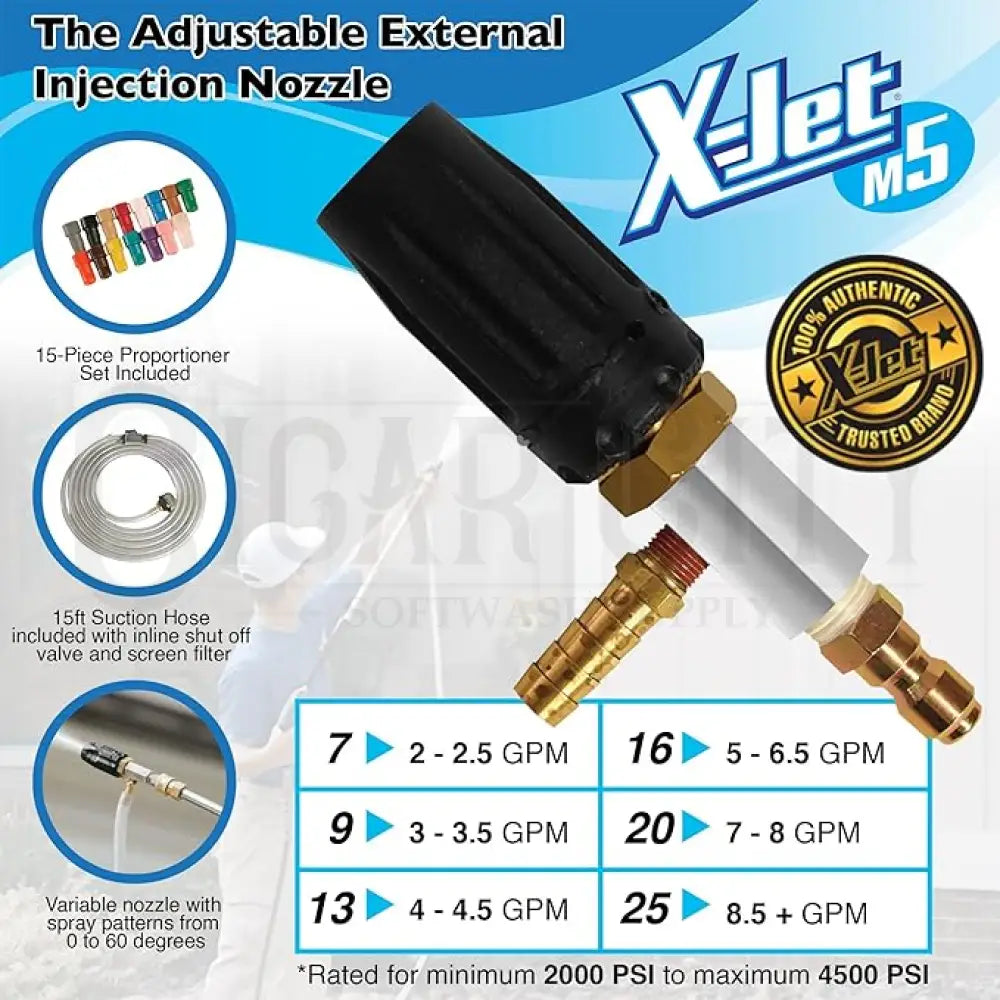

15ft of hose and 14 color-coded chemical proportions.

#13 Oriface 4-4.5gpm machines

#16 Oriface 5-6.5gpm machines

#20 Oriface 7-8gpm machines

#25 Oriface 8+gpm machines

Keep chemicals out of your power washer, and control spray angle with just a twist, with the XJETM5-13K nozzle!

This easy to use item attaches to both your pressure washer wand and its own special X-Jet suction hose (included). As pressurized water exits your spray lance, through the X-Jet nozzle, the suction hose draws and proportions the appropriate amount of chemical from a separate tank. The mixing happens in the nozzle! Simply twist the X-Jet M5 to change spray patterns from 5° to 60°, without the need for multiple tips.

Dimensions: 5.38" x 1.25" x 2.38"

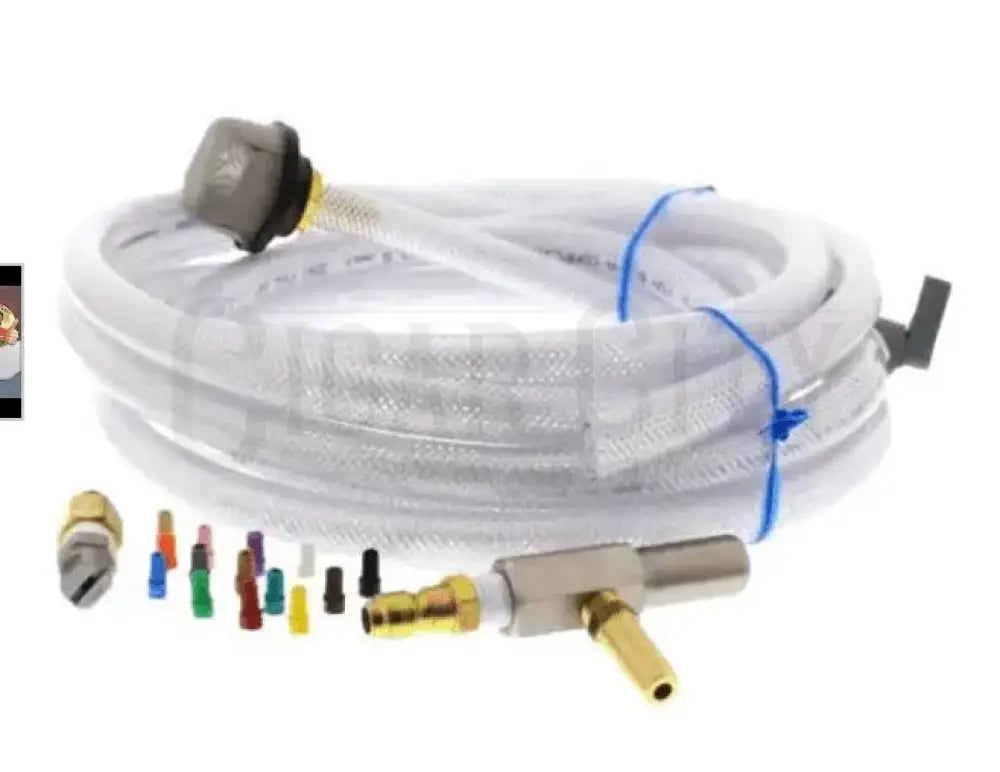

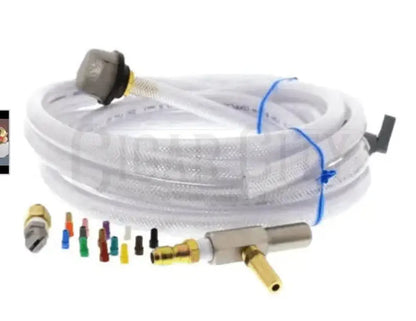

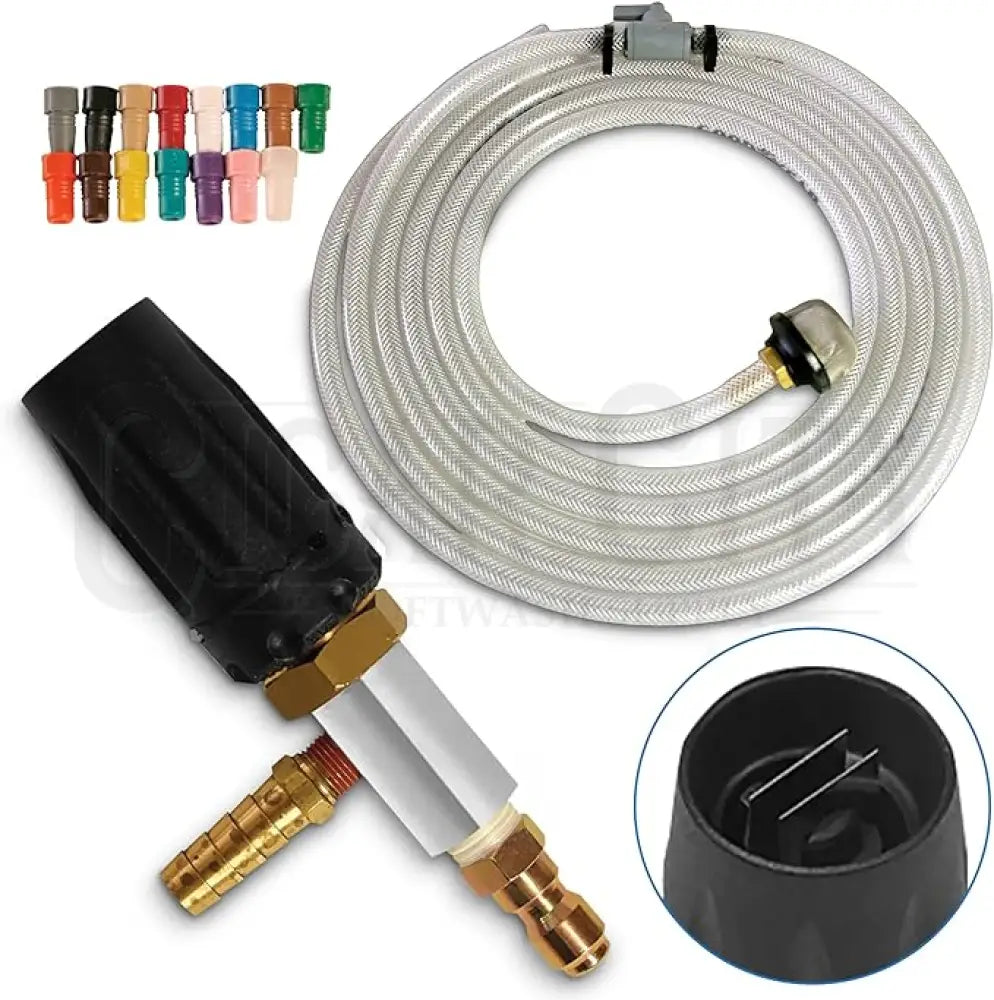

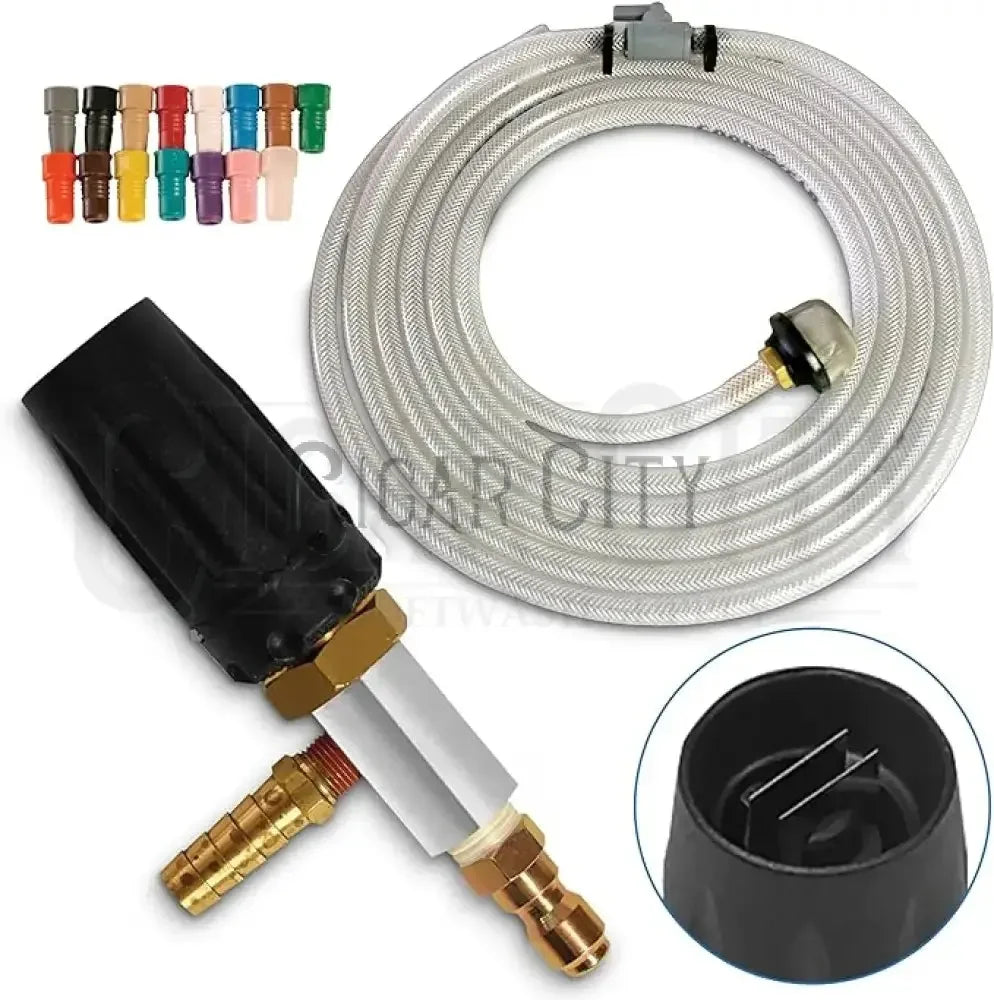

Includes:

• 15-foot X-Jet Suction Hose with hose barb
• Twist-adjust M5 nozzle for spray patterns between 5° and 60°
• Quick connect plug
• 15-piece color-coded proportioner tip set
• Shut off ball valve
• Mushroom strainer

Additional specifications:

• Fully adjustable spray patterns
• Maximum pressure: 4000 PSI
• Maximum temperature: 190° F
• Inlet: 1/4" quick connect plug
• Chemical port: 1/8" MPT x 3/8" hose barb
• Projects chemicals up to 40 feet or more depending on pressure washer
• Apply soap and rinse with the same nozzle - just remove the chemical suction tube
• Great for power washing houses and other residential pressure washing tasks!
• Weight: 4 lbs.
