Tsunami Filtration Package #8- 1/4" Water Separator & Regulator Combo (20 CFM) 21999-0414

Tsunami Filtration Package #8 – 1/4″ Water Separator & Regulator Combo (20 CFM)
Model 21999‑0414

Overview

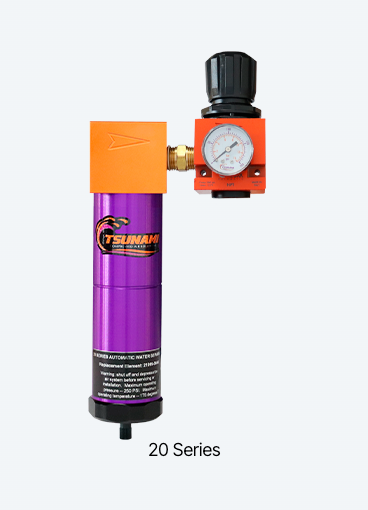

The Tsunami Filtration Package #8 provides superior point‑of‑use air treatment by combining a high‑efficiency water separator and a precision air regulator in a single compact unit. Designed for workshops, machinery, robotics, and pneumatic tool applications, it ensures reliable downstream performance with minimal maintenance.

Key Features

• Water Separation: Removes up to 1 quart of liquid per minute and filters particulate matter down to 10 microns with 99 % efficiency.

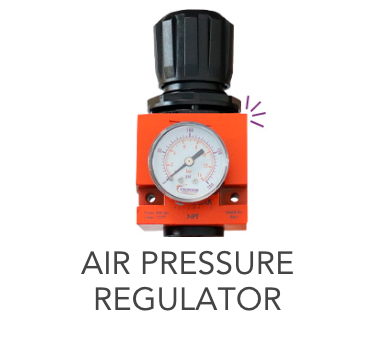

• Precision Regulation: Maintains consistent, adjustable output pressure to protect downstream components and optimize tool performance.

• Durable Construction: Heads and housing machined from 6061 aircraft‑grade aluminum, anodized inside and out for enhanced corrosion resistance.

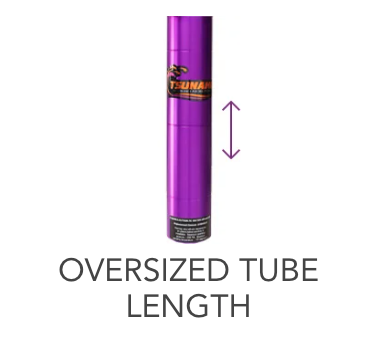

• Oversized Filter Tube: Leverages gravity and airflow dynamics for superior moisture and contaminant separation.

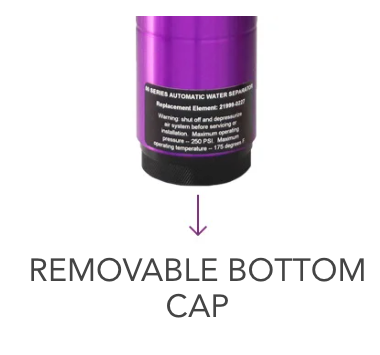

• User‑Friendly Drain: Includes an automatic float drain and machined port designed for optional electronic drain installation; bottom cap is easily removable for fast servicing.

• Mounting Bracket Included: Simplifies installation near compressors or tool stations.

Applications
Well‑suited for pneumatic systems in laser cutters, air tools, tire changers, automotive lifts, robotics, machine tools, and more.

Specifications

• Flow Rate: 20 CFM (standard 20‑series)

• Connections: 1/4″ NPT inlet/outlet

• Max Pressure: 250 PSI

• Temperature Range: up to 175 °F

• Efficiency: 99% particulate removal at 10 microns; up to 95% at 1 micron

• Construction: 6061 aluminum alloy, anodized finish

• Weight: approximately 3 lb; dimensions approx. 10.5″ H × 4″ W × 3.5″ D

• Includes: water separator, regulator, mounting bracket, float drain (electronic drain sold separately)

Benefits

• Extends air tool and equipment lifespan by removing moisture and debris

• Stabilizes air pressure to match tool specifications and reduce wear

• Robust build designed for professional environments and continuous use

• Easy maintenance with quick servicing and reliable float drain operation

• Compact footprint fits neatly into existing air systems

Compliance & Warranty

• Prop 65 compliant; not for potable water applications

• Backed by a one‑year manufacturer warranty
