Honda GX200 AR45 Gas Roof Pump Electric Start

This machine is Special Ordered and not typically carried in stock, please call for current lead times. By making this purchase you acknowledge the wait time and we will ship this product when it arrives.

This product ships LTL to ensure safe delivery.

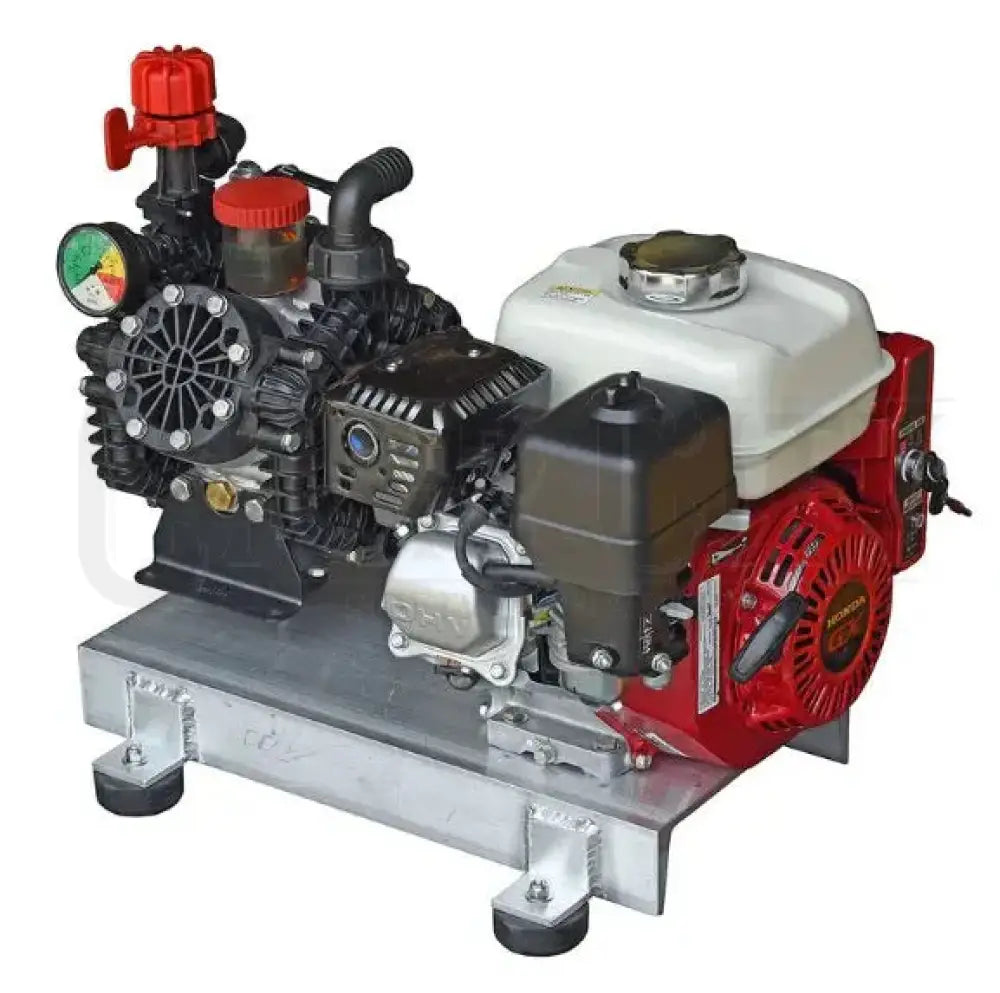

Custom aircraft grade aluminum base with mounting tabs allows you to mount this AR45LFPGRGCI & Honda GX200 Electric Start Engine Assembly on your skid or trailer sprayer with ease. The AR diaphragm pump is manufactured with poly heads and manifolds for maximum corrosion resistance.  The Honda engine has both recoil and electric start - 12V power source is required. For quality brands and quality manufacturing Sprayer Depot is your source for spray equipment.

Annovi Reverberi AR45LFP-GR-GCI liquid fertilizer and pesticide low pressure diaphragm pump. Three semi-hydraulic diaphragms. Single male cardan shaft. For use in the gardening or professional agricultural sectors, base-mounted in combination with PTO’s, electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.

• Semi-hydraulic three-diaphragm pump, for use with aggressive products in low pressure systems
• Parts in contact with the liquids being pumped are: reinforced polypropylene, Kynar and AISI 316 L. Diaphragms in BlueFlex and Viton®
• Three-diaphragm design for smoother operation, lower pulsation and less hammer effect
• Crankcase shell is precision die cast. Splash lubricated oiling system with a clear oil tank for visual oil level checking
• Remote level monitoring sensor on request
• Oil drainage stopper
• Piston and ring design offers an efficient “oil cushion” system to protect the diaphragm
• New-design diaphragms and keepers prevent contact tearing even in heavy-duty operating conditions
• Spherical sector profile valves offer lower flow resistance and improved volumetric efficiency
• Heavy duty mounting rails, AISI 304 SST fasteners. Drive types: Cardan shaft or keyed solid shaft Available with reduction gearbox for internal combustion engines, pulley fixtures or flanges for hydraulic motors.

• AR45LFPGRGCI:

  • Max flow: 11 gpm
  • Max pressure: 290 psi
  • Includes pressure regulator and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Max fluid temperature: 140°F

  Honda GX200 Electric Start Engine:

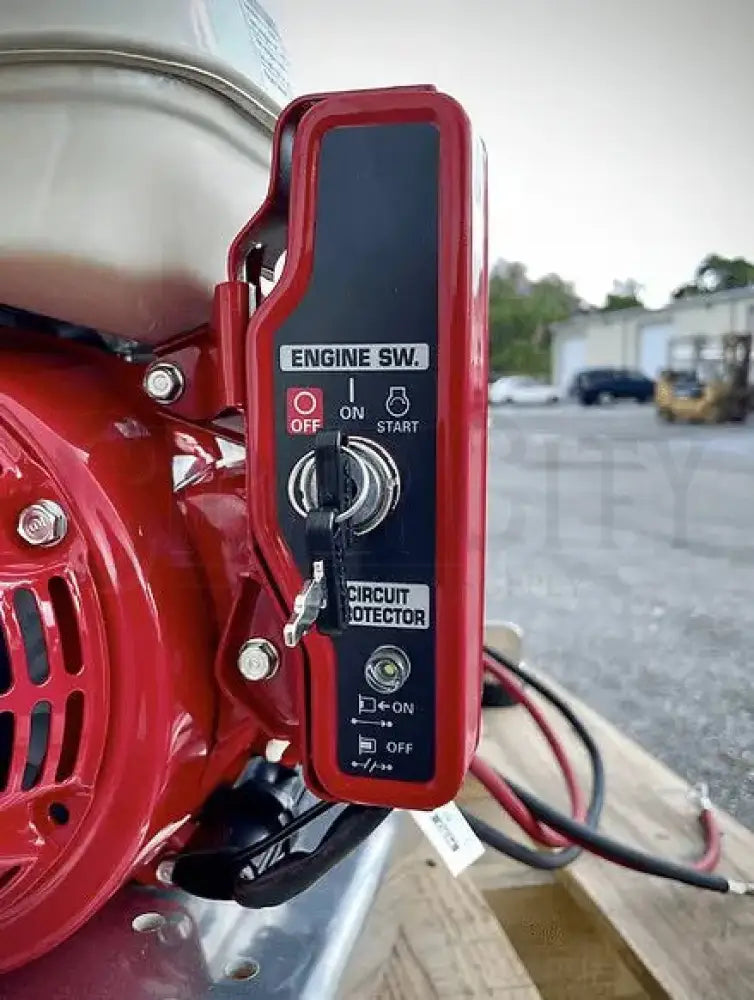

  • 12V Power Source Required
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Electric and recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)
