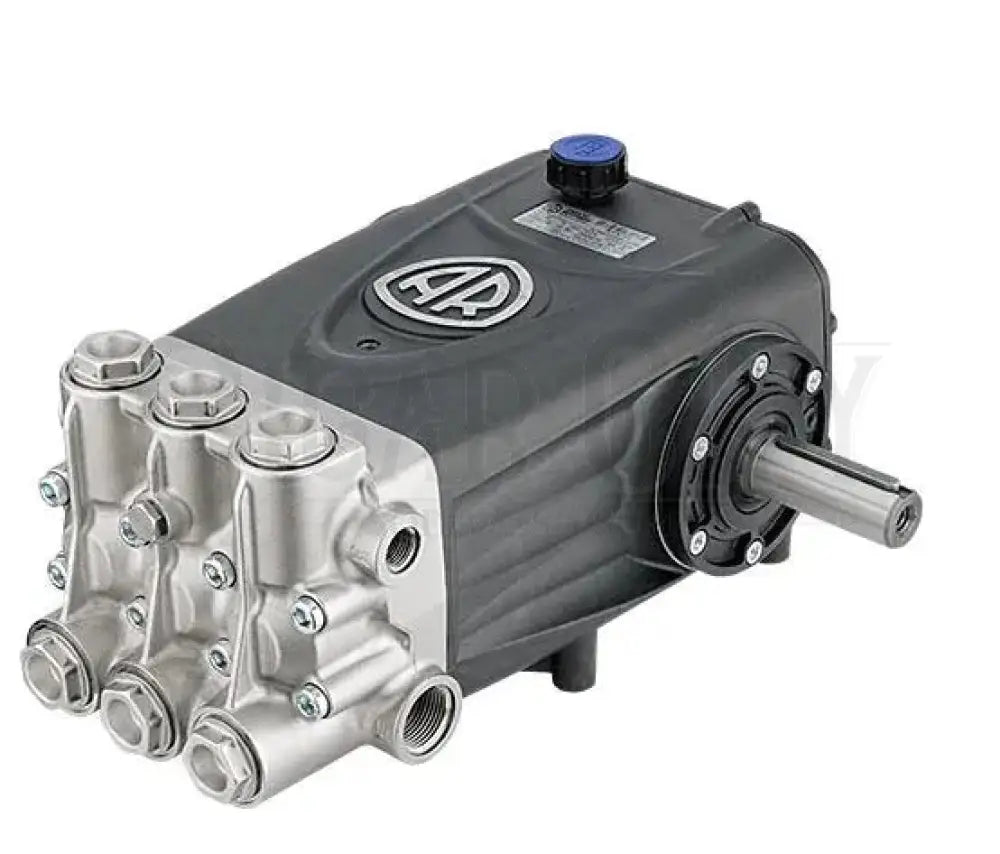

AR North America RTX60 Triplex Plunger Pump - 15.8 GPM, 4350 PSI, 1450 RPM

AR North America RTX60 Triplex Plunger Pump - 15.8 GPM, 4350 PSI, 1450 RPM

Regular price $2,309.10
Regular price Sale price $2,309.10
Sale Sold out
Shipping calculated at checkout.

Annovi Reverberi AR RTX60 horizontal gas engine triplex plunger pump is rated up to 14 GPM at max 4350 PSI spins a 30 x 80mm solid shaft at 1450 RPM using a 1”F inlet and 1/2"F discharge thread. N version with a gas engine flange.

Annovi Reverberi RTX60 Triplex Plunger Pump 1" F Inlet, 1/2" F Outlet that spins at 1,450 RPM in the N version.

Features incude:


  • 3-piston alternating volumetric pumps for use on cleaning units and industrial systems
  • Can be coupled to various types of motors, directly or with flexible joint
  • Pump body and cover in die-cast aluminum alloy
  • Side cover may be blind or incorporate oil sight glass
  • Rear cover with oil drain outlet
  • Pistons driven by crank-connecting rod mechanism
  • Pump shaft in pressed high-strength steel
  • Oversized friction bearings
  • Connecting rods in die-cast special low-friction zinc-aluminum alloy
  • Bronze connecting rods available
  • One-piece ceramic pistons
  • Pump head in pressed brass or steel
  • Double gasket sealing system
  • Intake and delivery valves have plugs for easier maintenance



Max GPM 14
Max L/Min 53
Max PSI 4350
MaxBar 300
Power EBHP 41.8
Bore Dia mm 25
Stroke mm 28
Crankshaft ID Stamp 1
Inlet 1" F
Outlet 1/2" F
Max Temp 140° F
Oil Capacity (oz) 76oz
Weight 72
Shaft Size 30 X 80
Shaft Version Solid
Max RPM 1450
