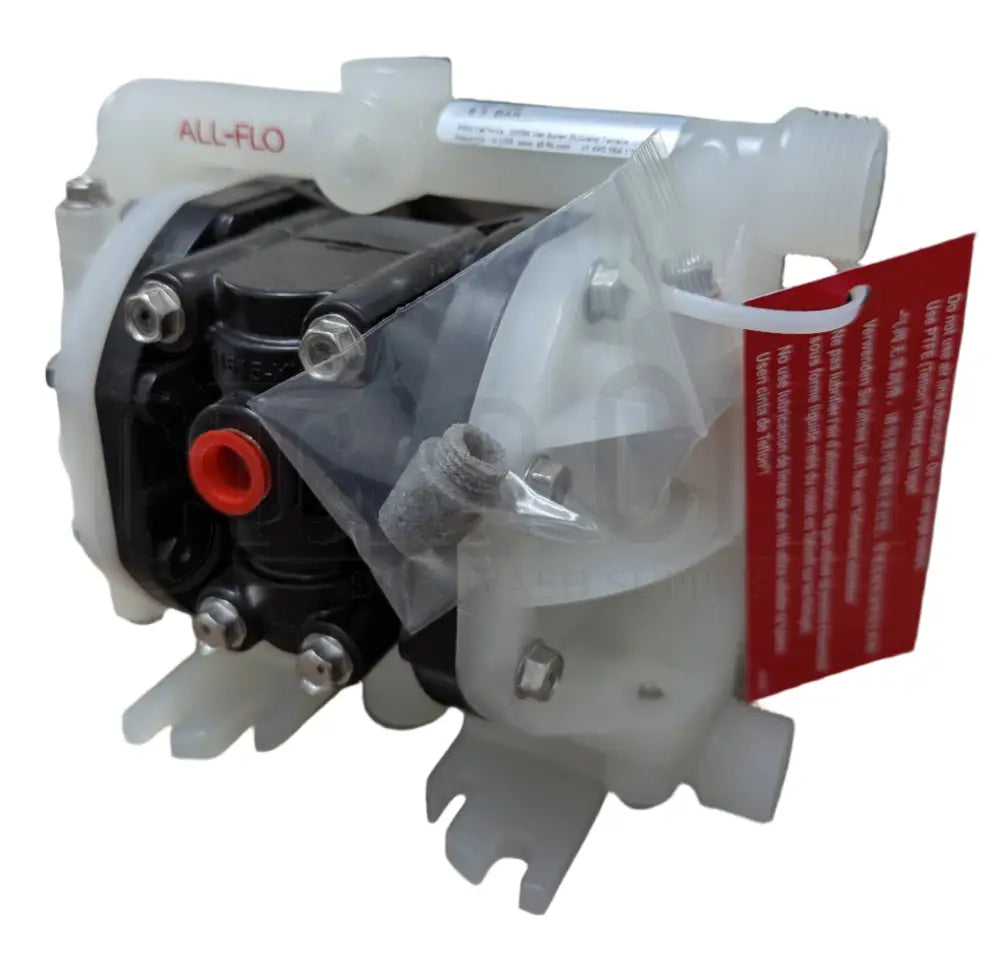

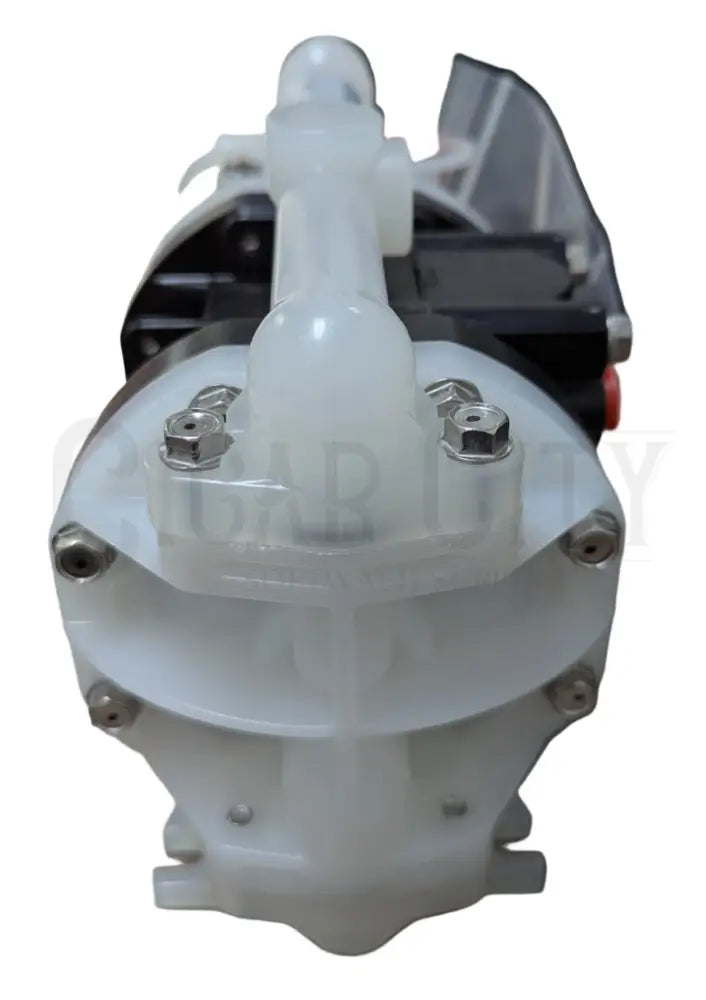

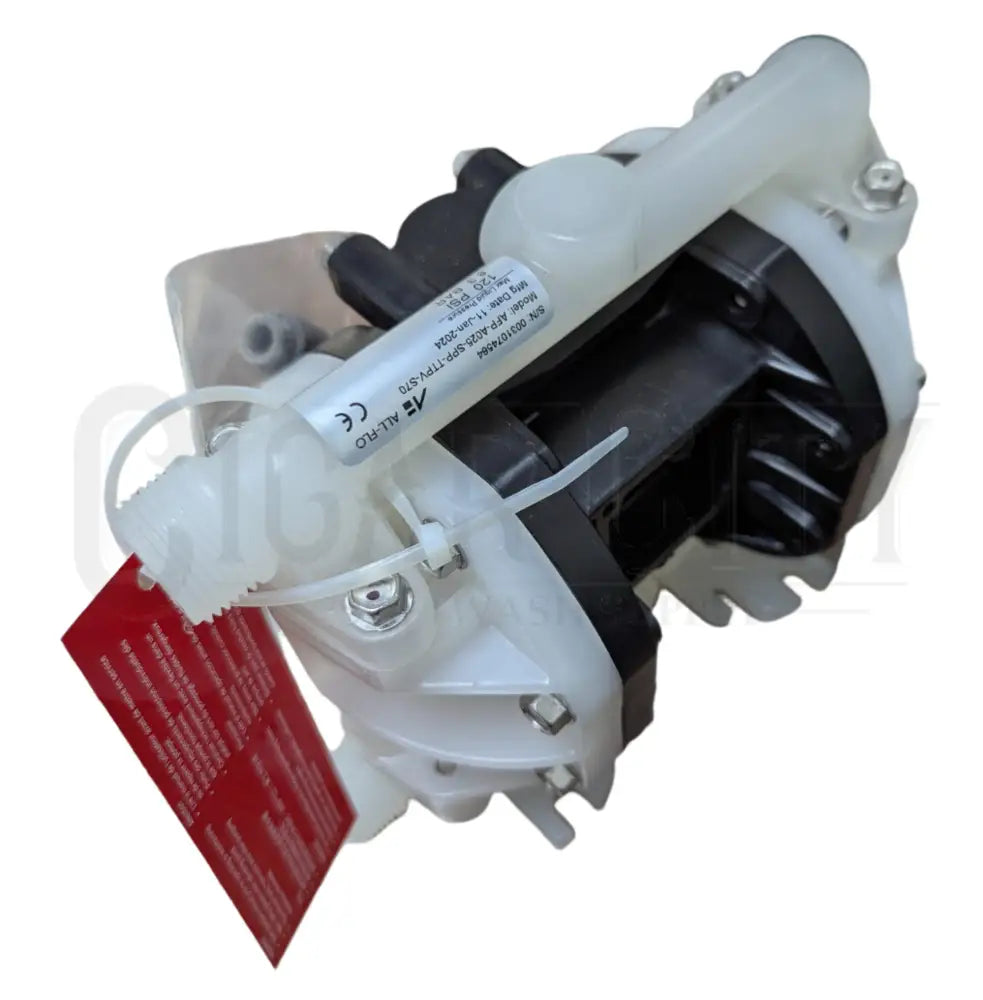

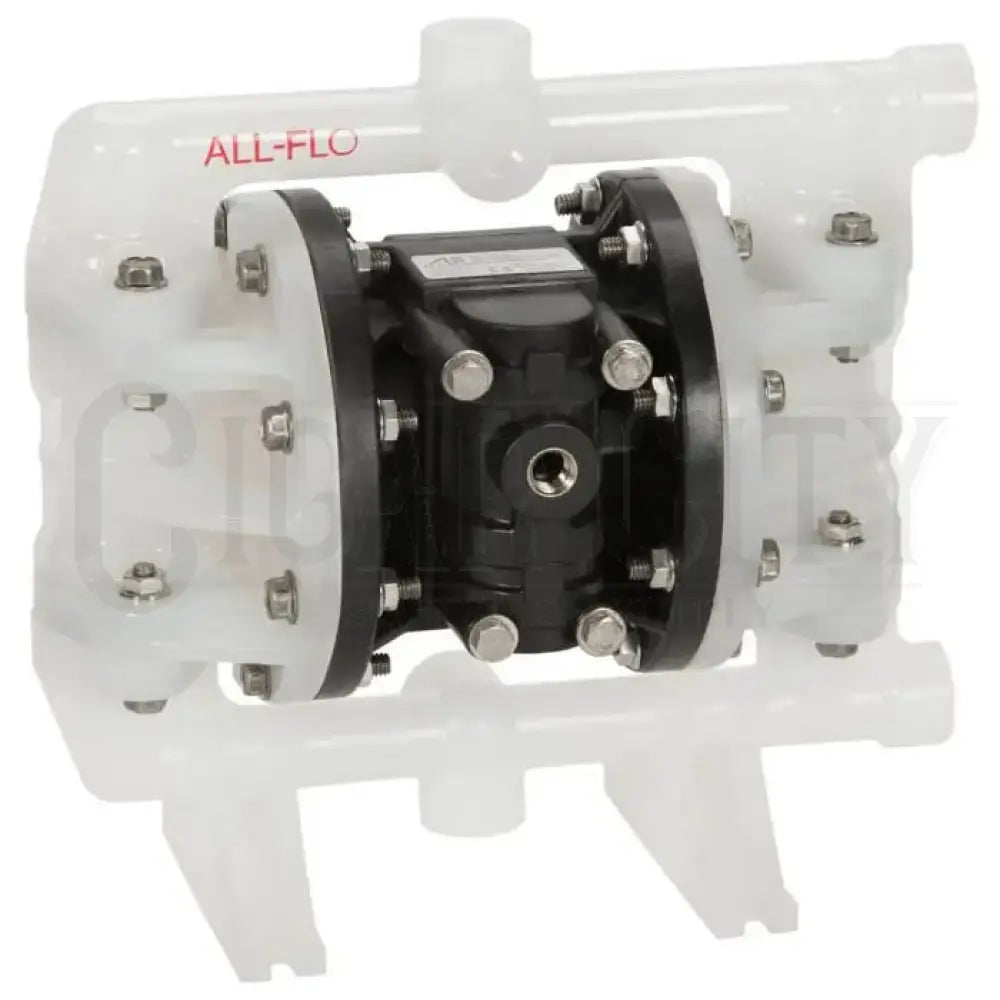

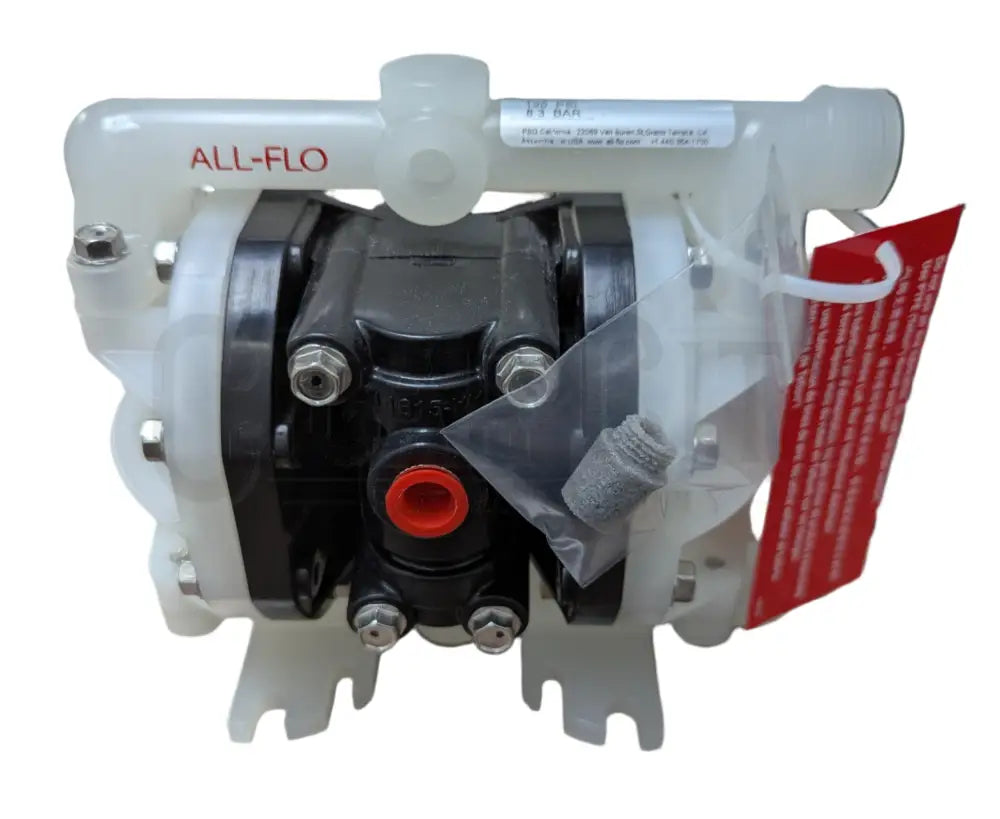

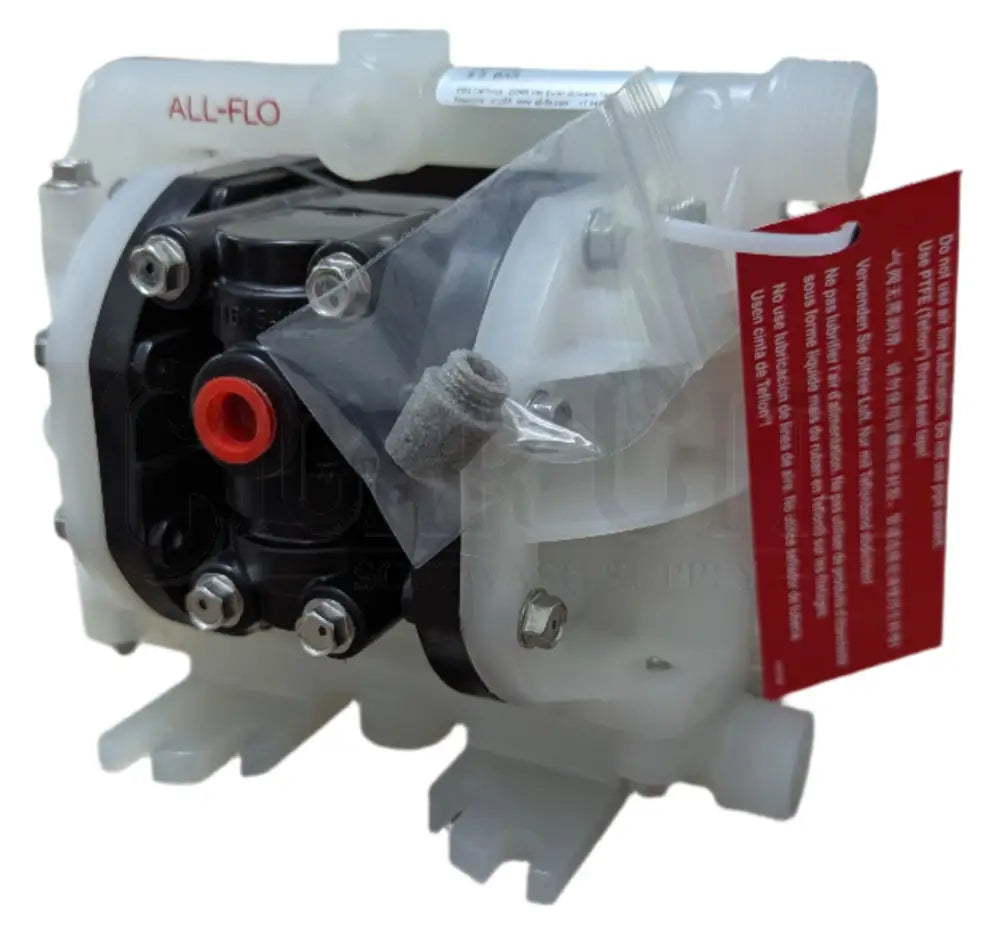

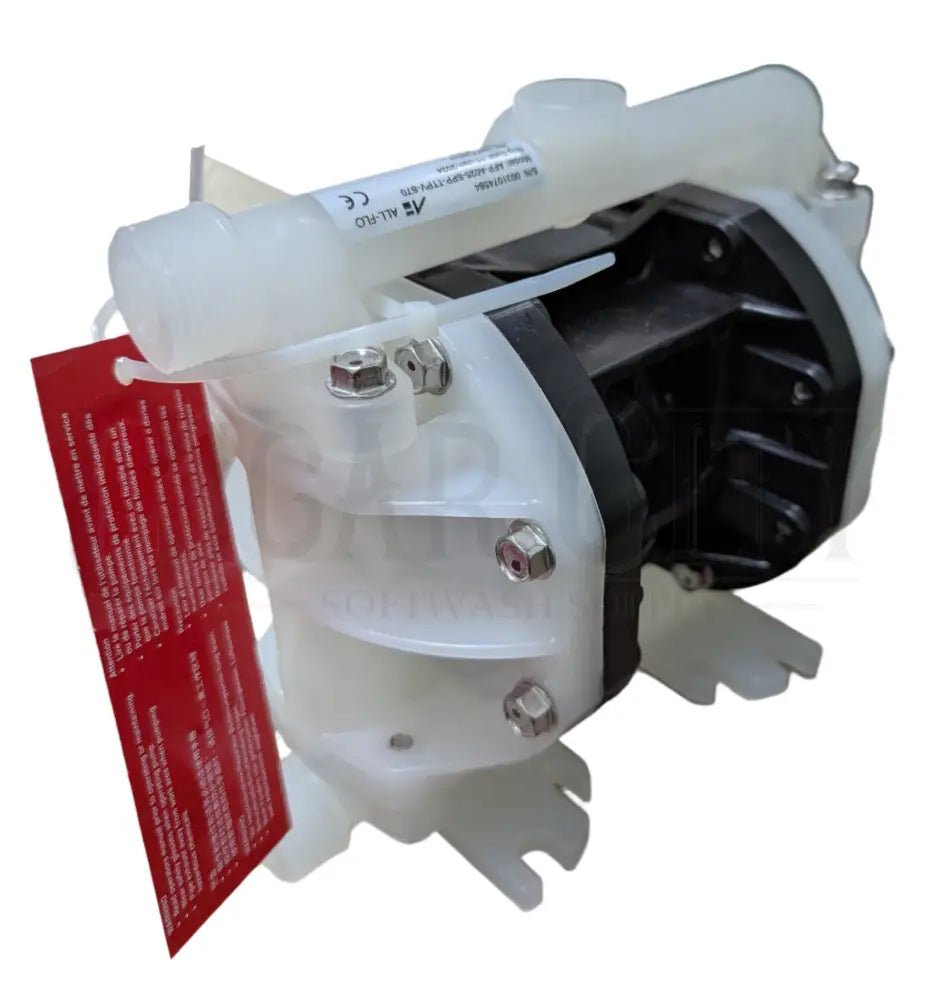

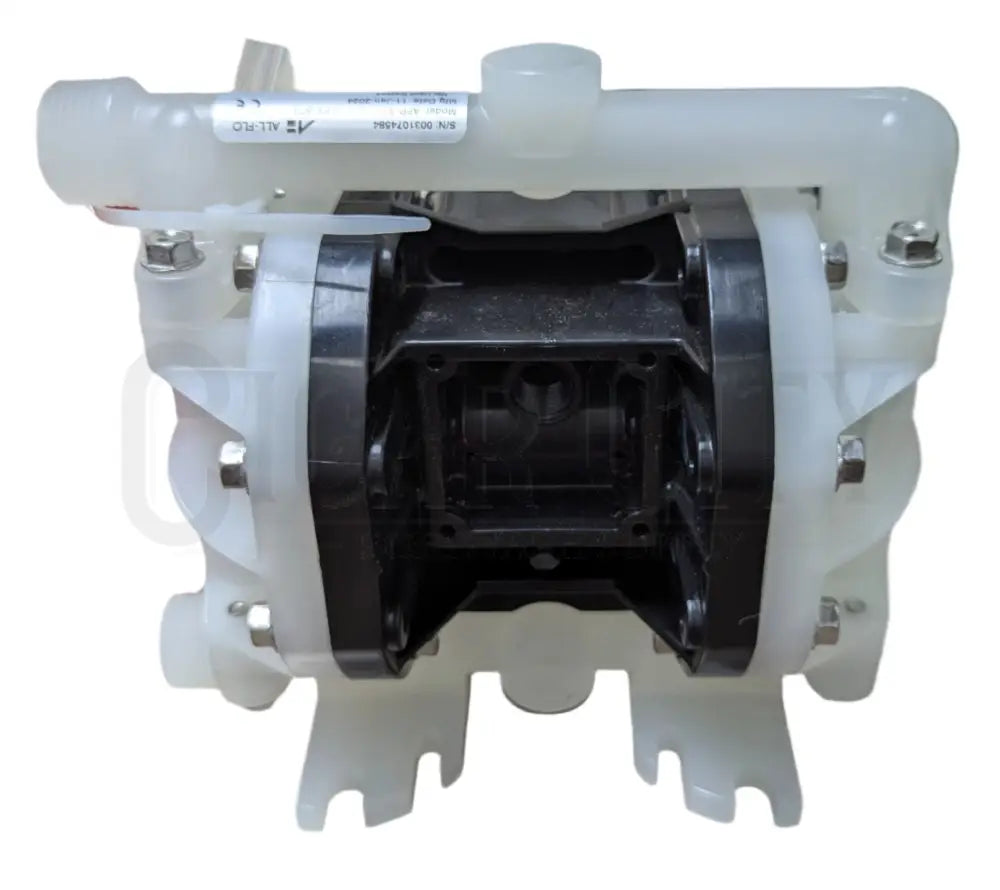

The All-Flo A025-SPP-TTPV-S70-R is a 1/4-inch air-operated double diaphragm (AODD) pump capable of delivering up to 5.7 gallons per minute. Equipped with Viton elastomers, it is ideal for handling aggressive chemicals, solvents, and fuels where high chemical resistance is required.
This lightweight and compact pump is perfect for applications in chemical transfer, industrial processing, and fluid handling in harsh environments. Engineered for reliability, it provides smooth operation, minimal maintenance, and exceptional durability.
Specifications
Feature
Detail
Manufacturer
All-Flo
Part Number
A025-SPP-TTPV-S70-R
Size
1/4" (Inlet & Outlet)
Flow Rate
Up to 5.7 GPM
Material (Wetted Parts)
Polypropylene housing with Viton diaphragms, valve balls, and seals
Air Inlet Size
1/4" NPT
Max Pressure
100 PSI
Application
Chemical transfer, fuel handling, industrial use
Key Features
Chemical Resistant: Viton components for superior compatibility with harsh fluids.
Compact & Lightweight: Ideal for tight installations and portable applications.
Reliable Performance: Smooth, consistent operation with minimal downtime.
Low Maintenance: Simple design with easy access to service parts.
Versatile Use: Suitable for chemicals, fuels, and industrial fluids.
