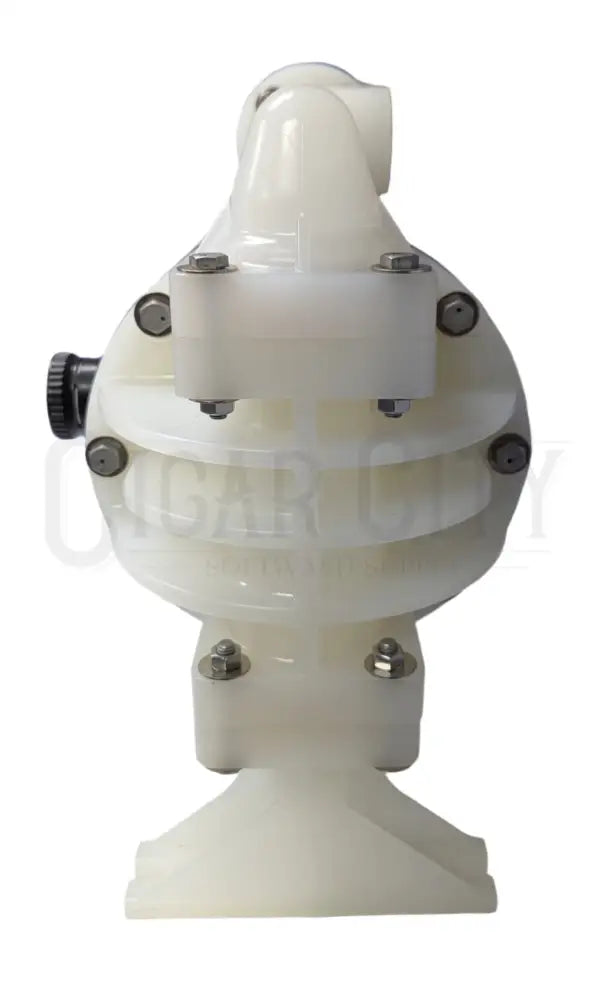

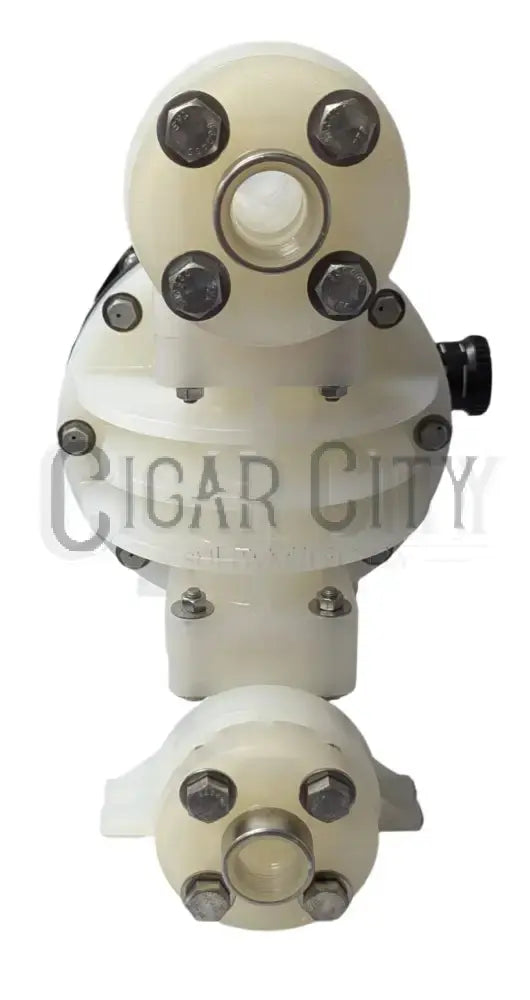

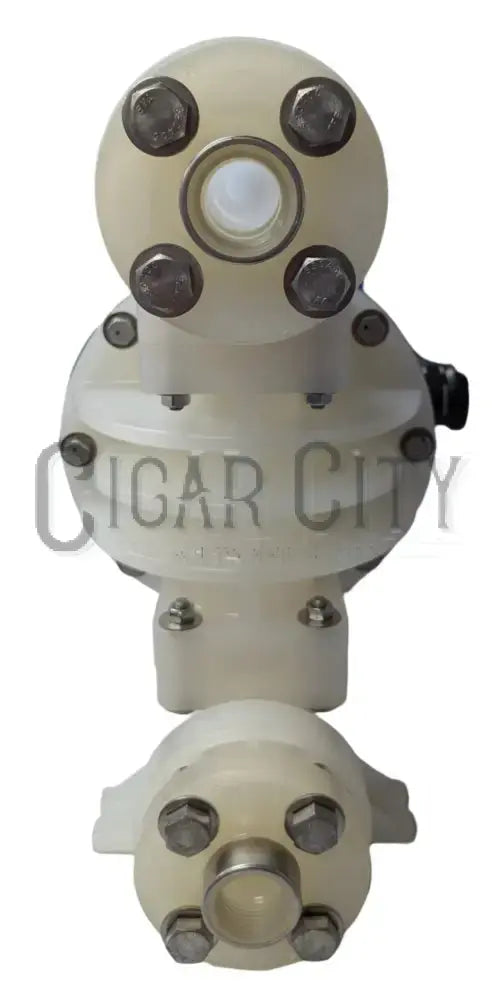

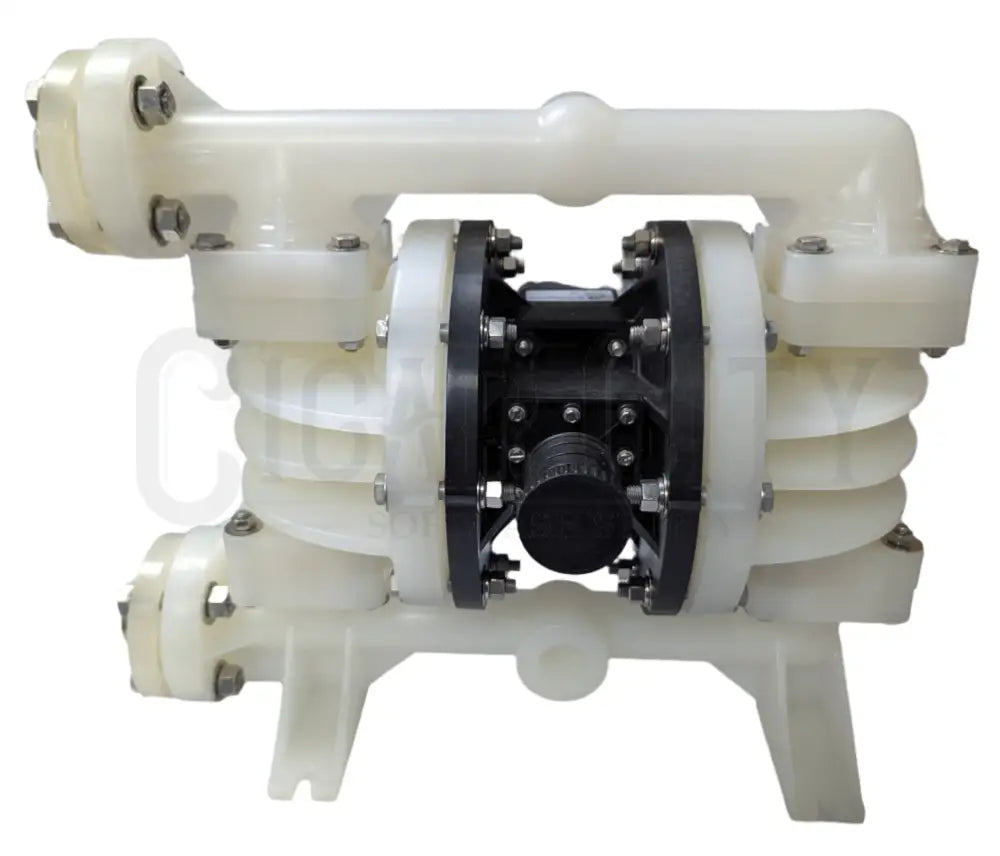

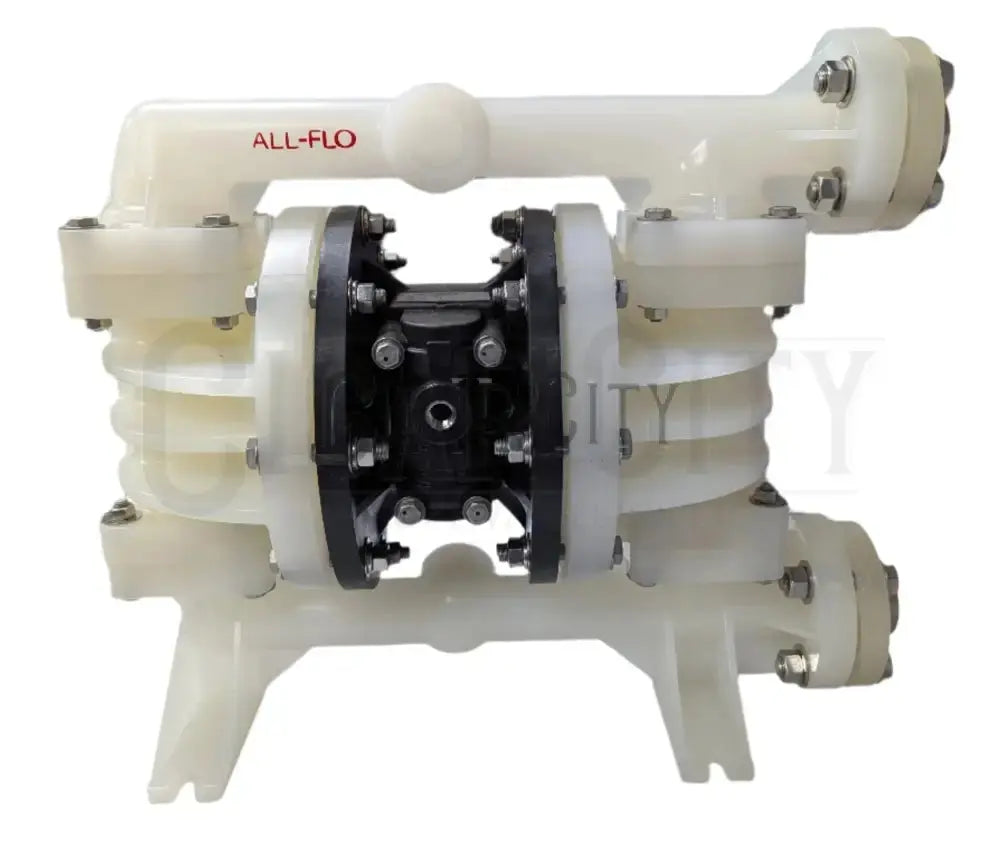

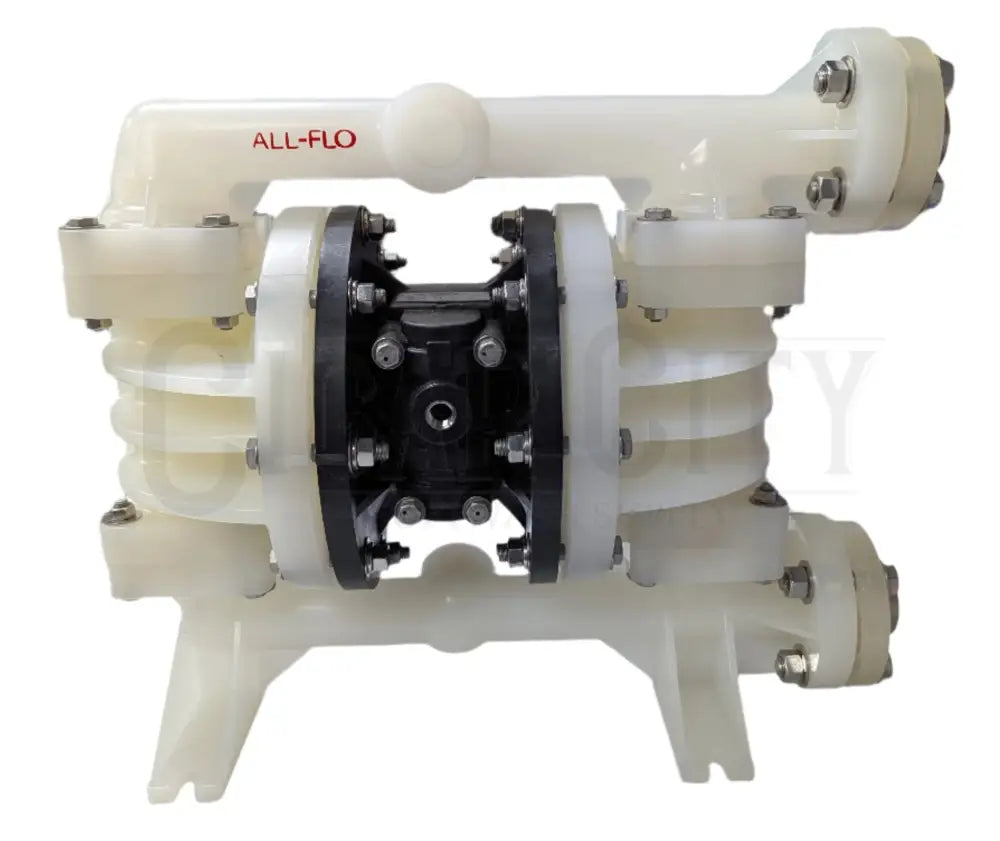

All-Flo 1" 41GPM Air Pump Viton

All-Flo 1" 41GPM Air Pump Viton

$1,599.00
$1,599.00
Sale Sold out
Shipping calculated at checkout.

All-Flo 1" Air Pump

41GPM

PRODUCT DETAILS

Manufacturer All-Flo
SKU A100-FPP-TTPT-S70
Model Number A100-FPP-TTPT-S70
Product Series A Series
Item Code A
For Potable Water Use No

ENGINE/MOTOR DETAILS

Engine/Motor Brand None
Fuel Type Air
Muffler/Exhaust Included
Muffler Material Plastic
Operational Volume (dB @23ft) 80.0

WARRANTY

Pump Warranty 5 Years

ORIGIN

Built In United States (Assembly)

OTHER INFORMATION

Weight (Lbs.) 26
Ship Weight (Lbs.) 36
Free Shipping Yes
Unit Dimensions 8.88" D x 17.26" W x 16.32" H
Agency Compliance CARB (California), EPA
California Destination-Operators-Buyers Warning Click Here For California Proposition 65 Warning
Stk. Itm. No

REPAIR KITS & PARTS (SOLD SEPARATELY)

Replacement Rod Assembly 32000-00
Replacement Air End Repair Kit AAK-100-P
Replacement Air Valve Assembly AMK-100-P
Replacement Pilot Sleeve Assembly APK-100-P
Wet End Repair Kit (Diaphragms, Valves, O-rings) AWE-100-TTPT-P

DOCUMENTS

Pump Curve
Brochure/Specification
Brochure/Specification 2
Owner Manual
Parts Manual
How To Read A Pump Curve
Warranty T & C
Chemical Compatibility Reference
Pump Selection Guidebook
Diaphragm Pump Application Questions
Diaphragm Pump Application Questions (Detailed)

PUMP DETAILS

Pump Type Double Diaphragm Pump
Pump Style Diaphragm Pump
Inlet Diameter 1"
Outlet Diameter 1"
Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) 41.0
Max Total Head (Static) 276 Feet @ 120 PSI Pressure Inlet/Outlet PSIG
Max Air Pressure (PSI) 120
Max Suction Lift (Dry, @ Sea Level) 15 Feet
Max Suction Lift (Wet, @ Sea Level) 26 Feet
Max Suction Lift (Dry, If W/PTFE, @ Sea Level) 10 Feet
Solids Handling Yes
Max Solids Handling (Inches) 0.25"
Self Priming Pump Yes, Dry Prime
Valve Type Ball
Air Inlet Size 0.25"
Air Section Material Polypropylene
Fluid Chamber Material Polypropylene
Inner Chamber (Air Section) Material Polypropylene
Diaphragm Material (Elastomer) PTFE (Teflon) (PTFE Curve)
Ball-Valve Material PTFE (Teflon)
Valve Seat Material Polypropylene
O-Ring Material PTFE (Teflon)
Port Type(s) ANSI Flange
Fluid Porting Suction Right - Discharge Right
Max Temp Of Elastomers 150 F
Altitude Affected Yes
