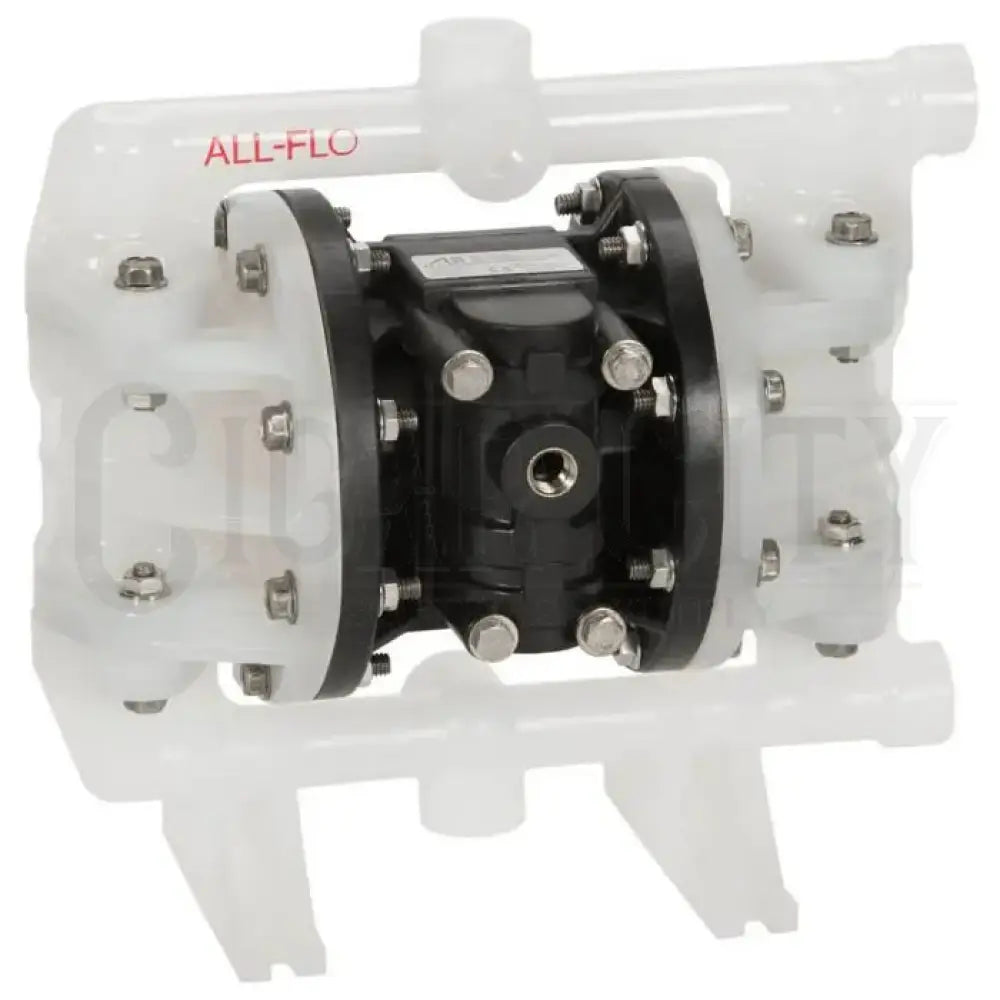

All-Flo 1/2" 17GPM Air Pump Santoprene A050-SPP-SSPE-S70-R
All-Flo 1/2" 17GPM Air Pump Santoprene A050-SPP-SSPE-S70-R
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
All-Flo Double Diaphragm Pump - A050-SPP-SSPE-S70, 1/2", Polypropylene, Santoprene, 17 GPM, 120 PSI
PRODUCT DETAILS
| Manufacturer | All-Flo |
|---|---|
| SKU | A050-SPP-SSPE-S70 |
| Model Number | A050-SPP-SSPE-S70 |
| Product Series | A Series |
| Item Code | A |
| For Potable Water Use | No |
ENGINE/MOTOR DETAILS
| Engine/Motor Brand | None |
|---|---|
| Fuel Type | Air |
| Muffler/Exhaust | Included |
| Muffler Material | Plastic |
| Operational Volume (dB @23ft) | 86.0 |
WARRANTY
| Pump Warranty | 5 Years |
|---|
ORIGIN
| Built In | United States (Assembly) |
|---|
OTHER INFORMATION
| Weight (Lbs.) | 11 |
|---|---|
| Ship Weight (Lbs.) | 16 |
| Free Shipping | Yes |
| Unit Dimensions | 7.33" D x 12.04" W x 11.36" H |
| Agency Compliance | CARB (California), EPA |
| California Destination-Operators-Buyers Warning | Click Here For California Proposition 65 Warning |
| QSP | 5 |
| Stk. Itm. | No |
REPAIR KITS & PARTS (SOLD SEPARATELY)
| Drum Kit | ADK-050-S-P |
|---|---|
| Replacement Rod Assembly | 33000-00 |
| Replacement Air End Repair Kit | AAK-050-P |
| Replacement Air Valve Assembly | AMK-050-P |
| Replacement Pilot Sleeve Assembly | APK-050-P |
| Wet End Repair Kit (Diaphragms, Valves, O-rings) | AWE-050-SSPE-S |
DOCUMENTS
PUMP DETAILS
| Pump Type | Double Diaphragm Pump |
|---|---|
| Pump Style | Diaphragm Pump |
| Inlet Diameter | 0.5" |
| Outlet Diameter | 0.5" |
| Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) | 17.0 |
| Max Total Head (Static) | 276 Feet @ 120 PSI Pressure Inlet/Outlet PSIG |
| Max Air Pressure (PSI) | 120 |
| Max Suction Lift (Dry, @ Sea Level) | 15 Feet |
| Max Suction Lift (Wet, @ Sea Level) | 26 Feet |
| Max Suction Lift (Dry, If W/PTFE, @ Sea Level) | 10 Feet |
| Solids Handling | Yes |
| Max Solids Handling (Inches) | 0.125" |
| Self Priming Pump | Yes, Dry Prime |
| Valve Type | Ball |
| Air Inlet Size | 0.25" |
| Air Section Material | Polypropylene |
| Fluid Chamber Material | Polypropylene |
| Inner Chamber (Air Section) Material | Polypropylene |
| Diaphragm Material (Elastomer) | Santoprene (TPE Curve) |
| Ball-Valve Material | Santoprene |
| Valve Seat Material | Polypropylene |
| O-Ring Material | EPDM |
| Port Type(s) | BSP, NPT |
| Fluid Porting | Suction Right - Discharge Right (NPT-BSP Only) |
| Max Temp Of Elastomers | 150 F |
| Altitude Affected | Yes |
