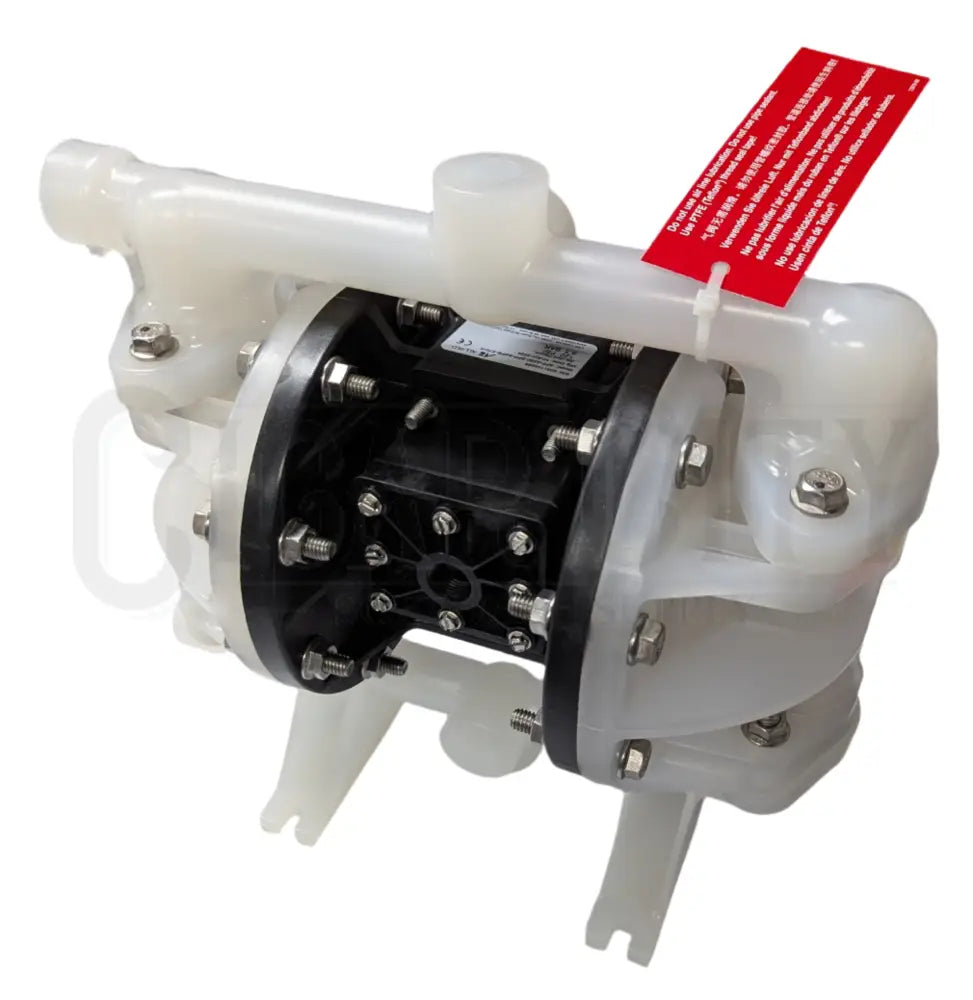

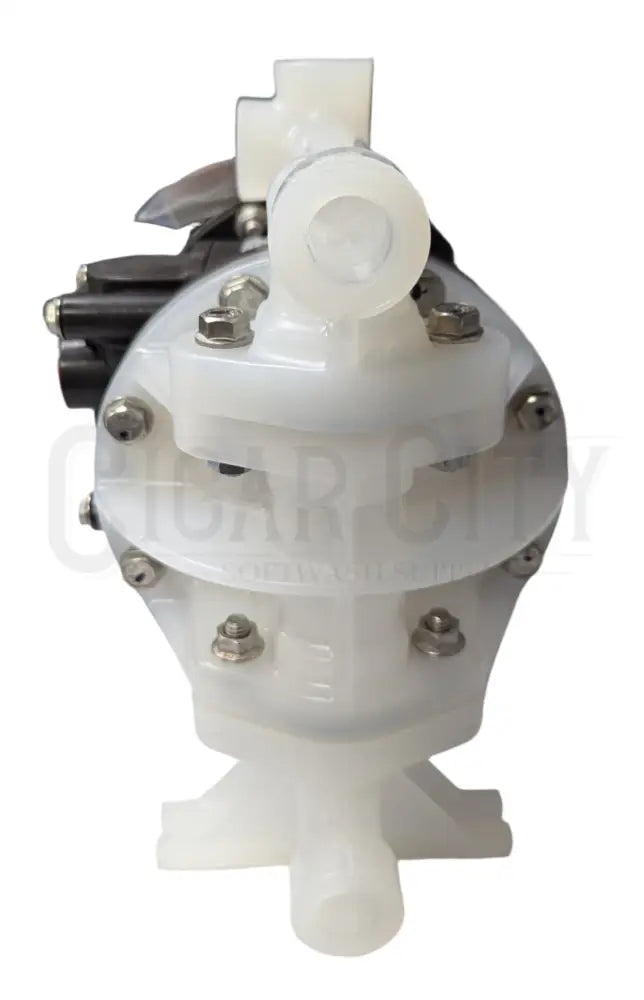

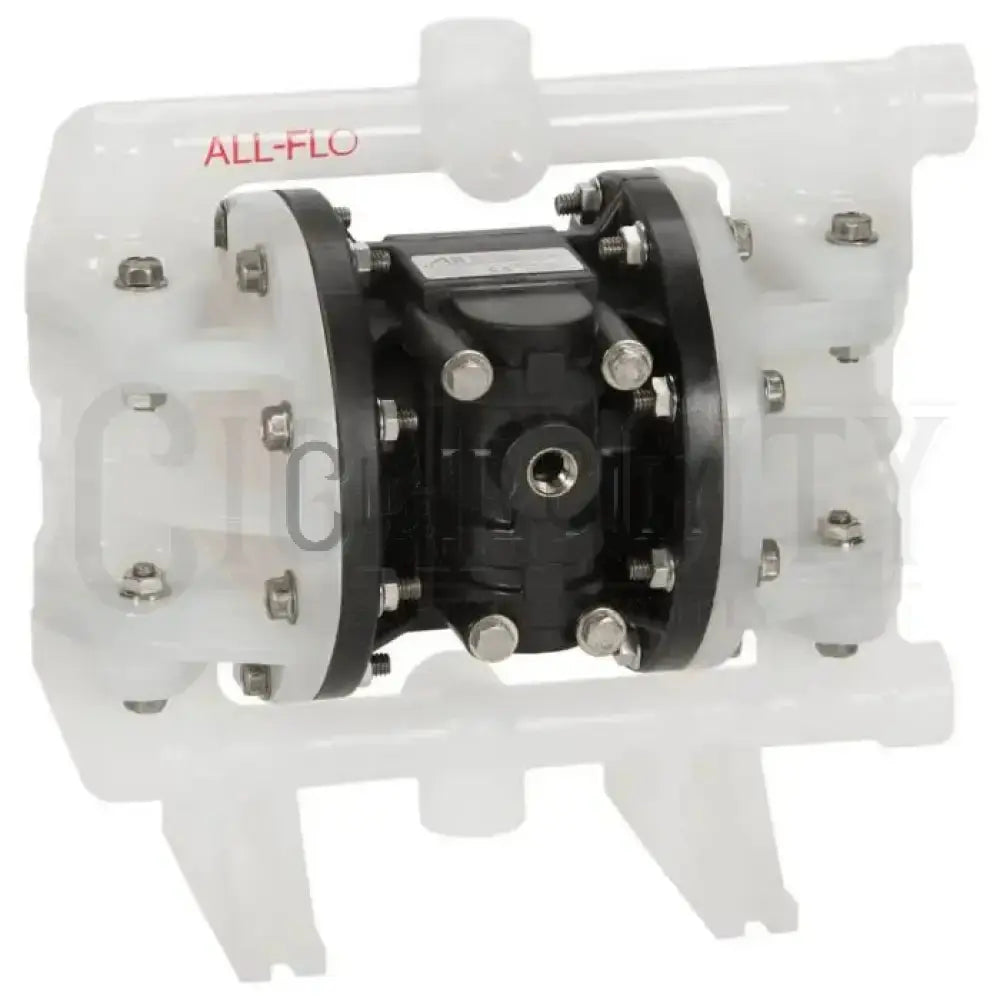

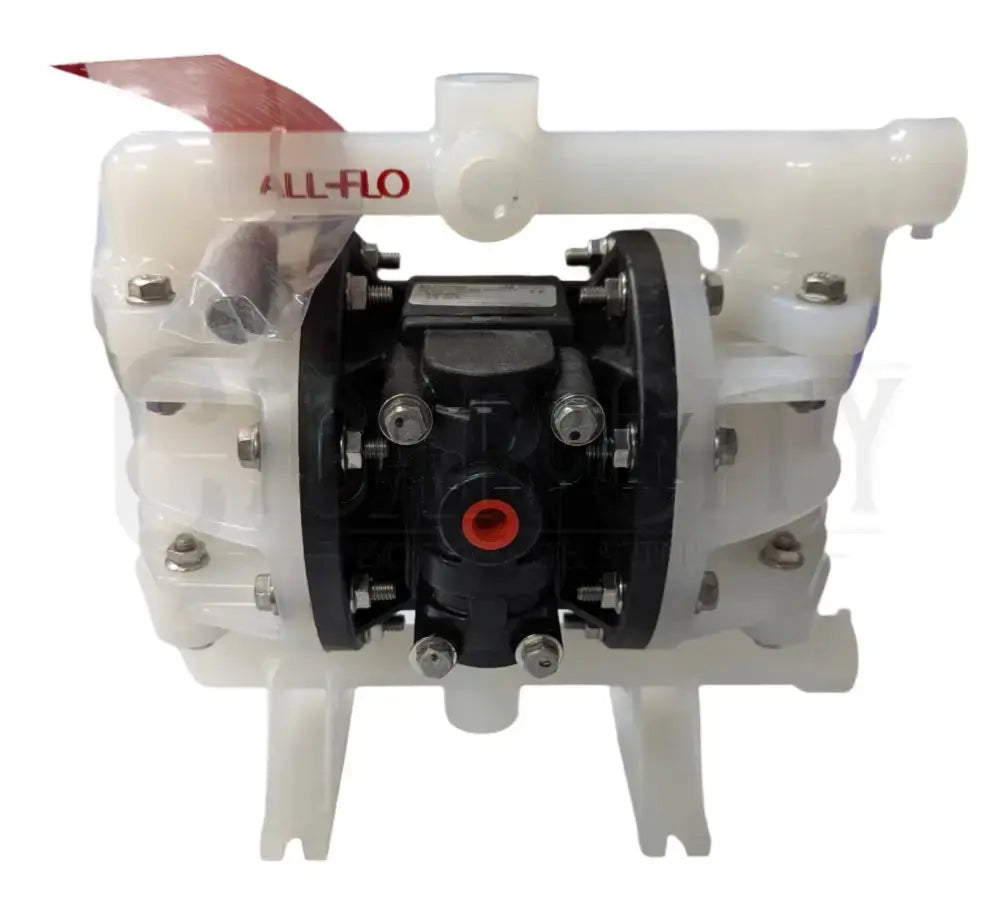

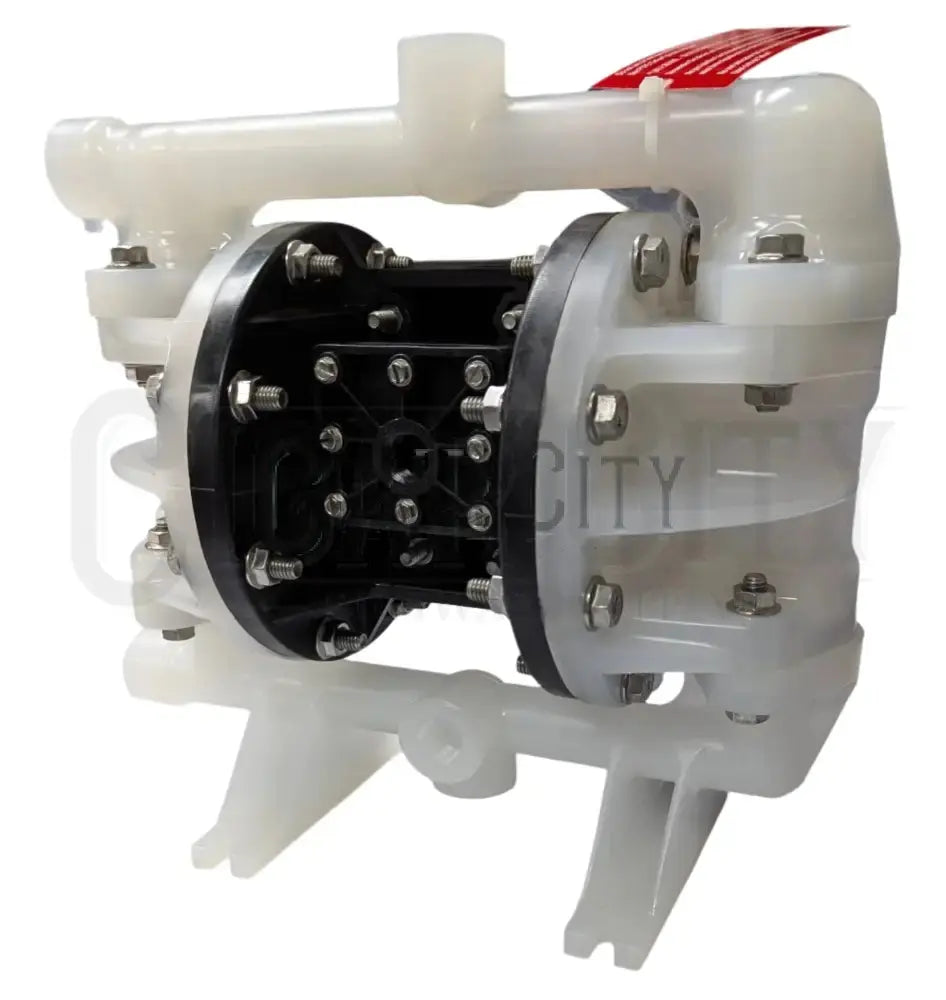

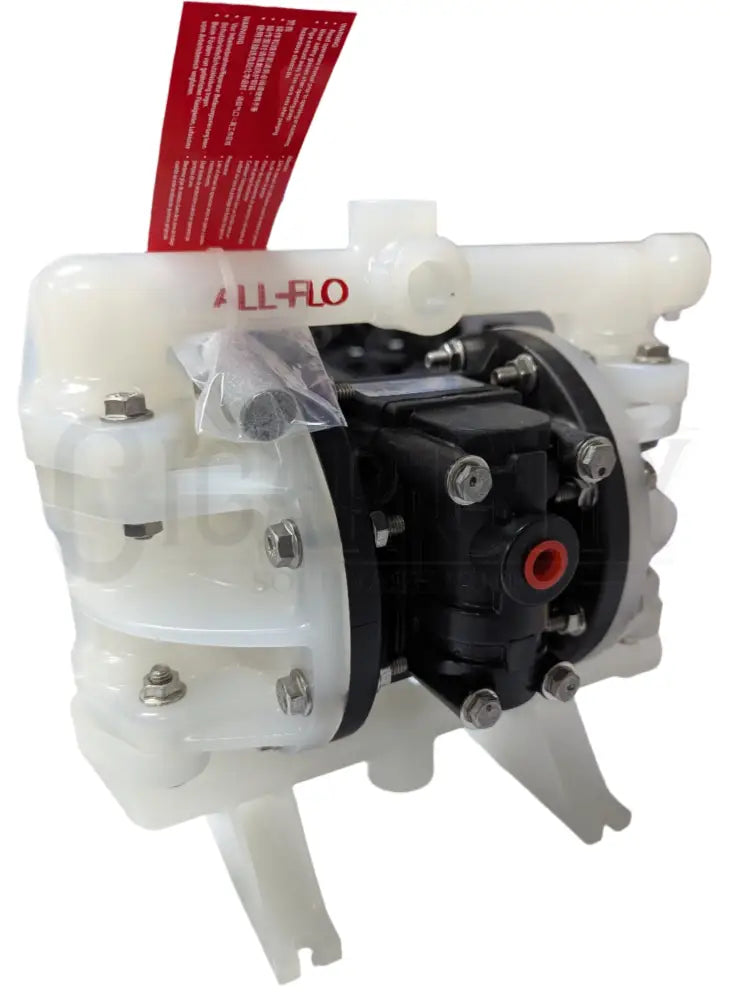

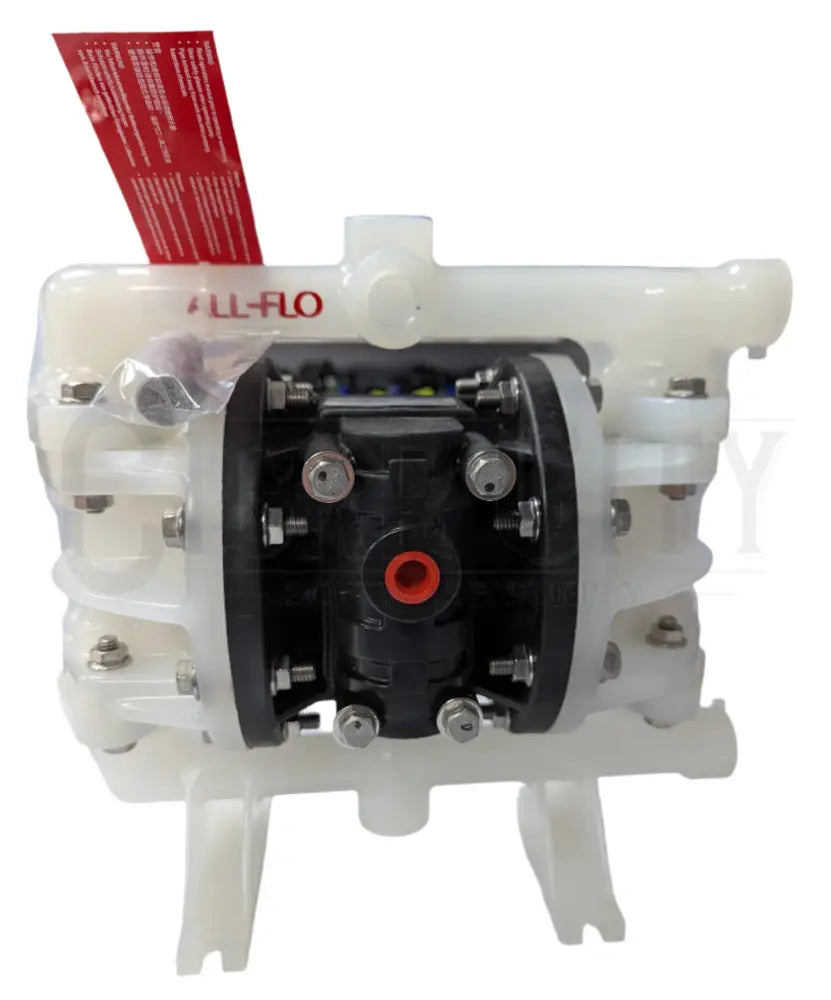

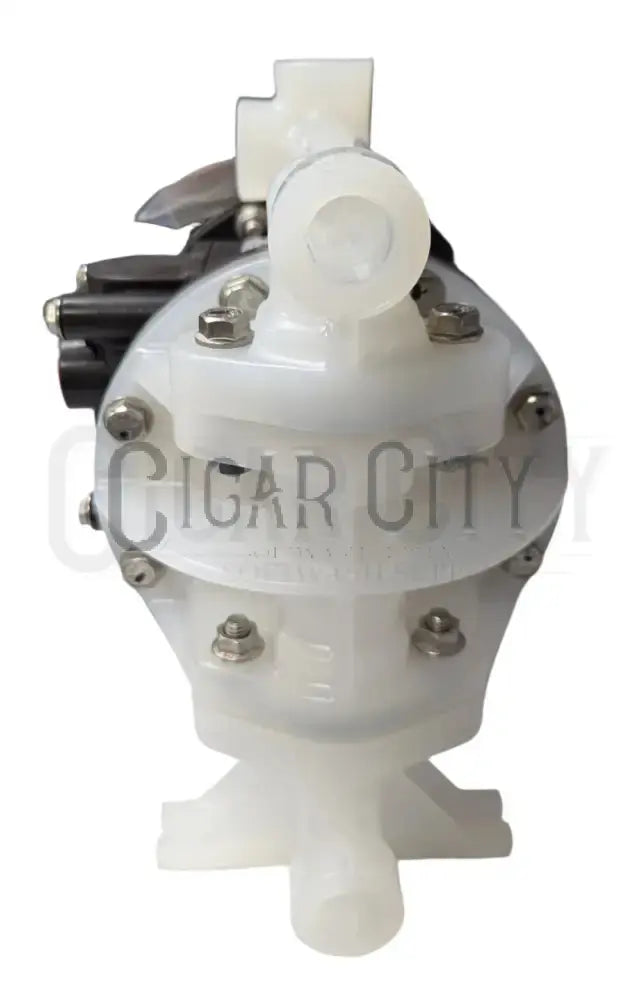

All-Flo 1/2" 17GPM Air Pump Viton/FKM
All-Flo 1/2" 17GPM Air Pump Viton/FKM
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
All-Flo Double Diaphragm Pump -
| AFP-A050-SPP-TTPV-S70 |
, 1/2", PVDF, Viton, 17 GPM, 120 PSI
| Pump Type | Double Diaphragm Pump |
|---|---|
| Pump Style | Diaphragm Pump |
| Inlet Diameter | 1/2" |
| Outlet Diameter | 1/2" |
| Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) | 17.0 |
| Max Total Head (Static) | 276 Feet @ 120 PSI Pressure Inlet/Outlet PSIG |
| Max Air Pressure (PSI) | 120 |
| Max Suction Lift (Dry, @ Sea Level) | 15 Feet |
| Max Suction Lift (Wet, @ Sea Level) | 26 Feet |
| Max Suction Lift (Dry, If W/PTFE, @ Sea Level) | 10 Feet |
| Solids Handling | Yes |
| Max Solids Handling (Inches) | 0.125" |
| Self Priming Pump | Yes, Dry Prime |
| Valve Type | Ball |
| Air Inlet Size | 0.25" |
| Air Section Material | Polypropylene |
| Fluid Chamber Material | PVDF (Kynar) |
| Inner Chamber (Air Section) Material | Polypropylene |
| Diaphragm Material (Elastomer) | VITON (Rubber Curve) |
| Ball-Valve Material | VITON |
| Valve Seat Material | PVDF (Kynar) |
| O-Ring Material | VITON |
| Port Type(s) | BSP, NPT |
| Fluid Porting | Suction Right - Discharge Right (NPT-BSP Only) |
| Max Temp Of Elastomers | 180 F |
| Altitude Affected | Yes |
