The X-Jet Long Range Injection Nozzle allows you to project chemicals vertically up to 40 feet or more, depending on the power of your pressure washer. You don't have to run caustic chemicals through your pumps, hose reels, guns, lances, or quick connects destroying them anymore. Instead, use the color-coded proportioners to inject and proportion soaps, chemicals, or other liquids at high pressure. Apply soap and rinse with the same nozzle! Easily wash and remove mold, dirt, and mildew from structures without needing ladders or scaffolding. This has fixed long-range and short-range spray patterns. The X-Jet Nozzles work with almost any pressure washer, hot or cold, from 1000 PSI to 6000 PSI, with a Max Temperature of 190° F.

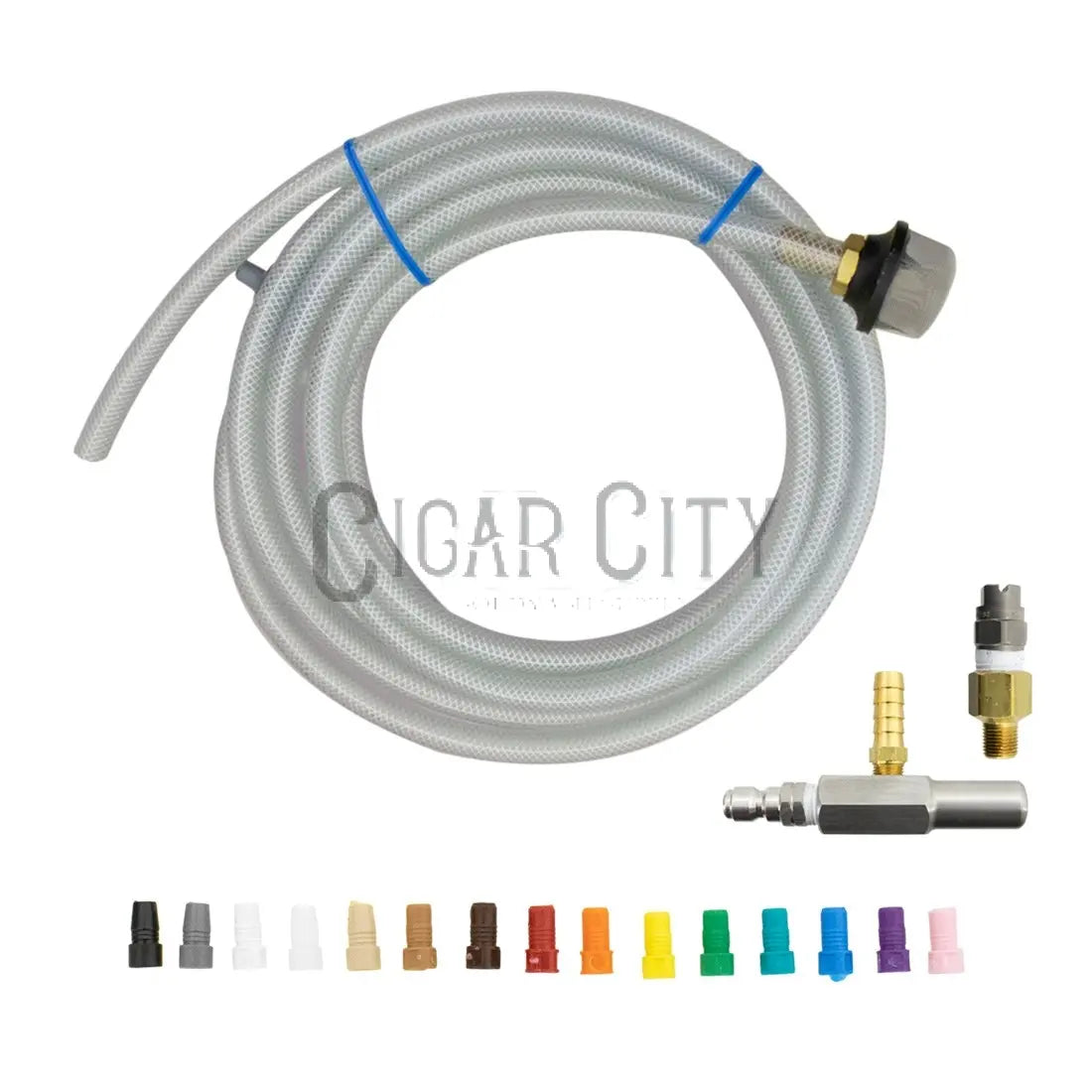

Includes:

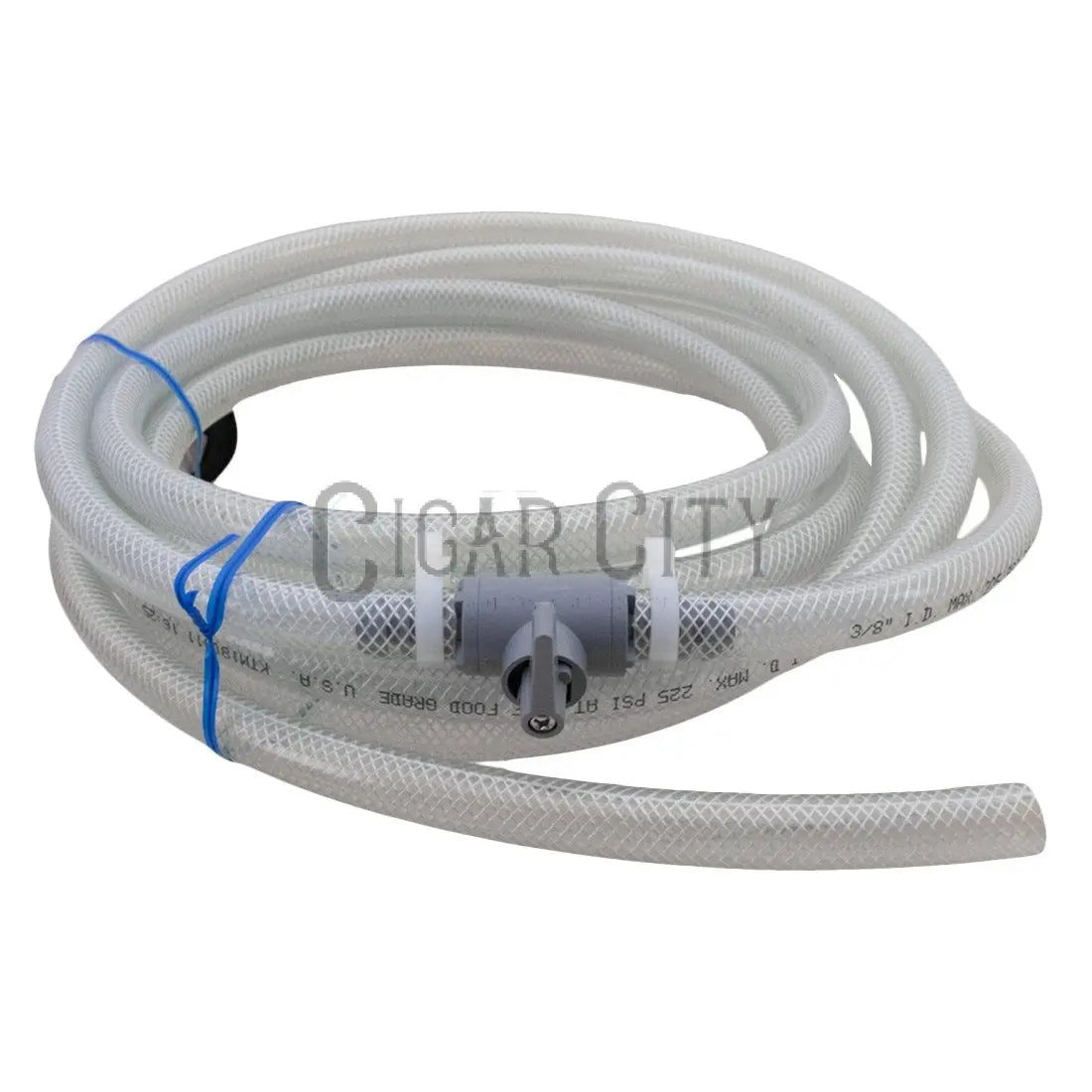

15 Feet Clear Vinyl Tubing

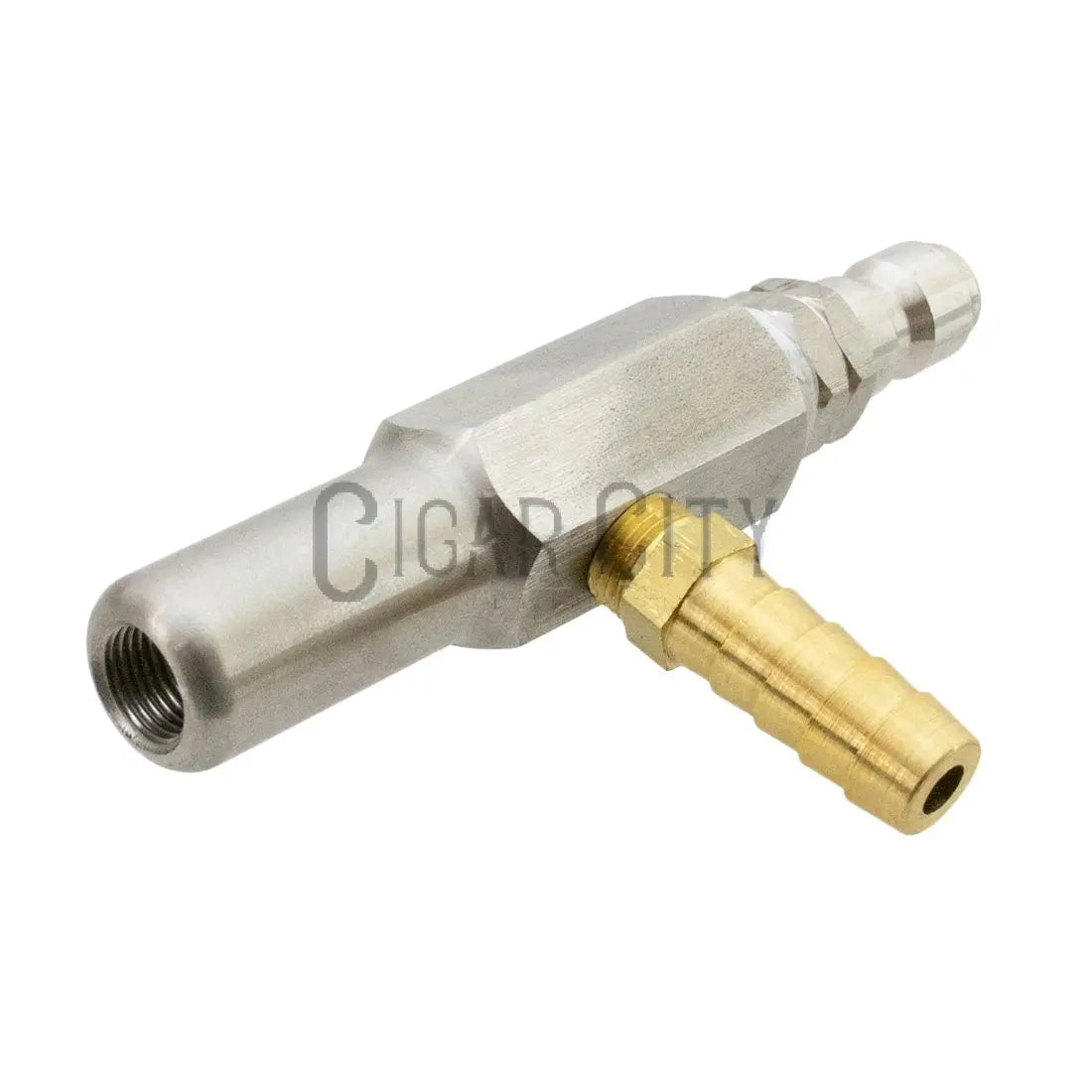

X-Jet Long Range Nozzle
Quick Connect Plug On X-Jet Inlet Hose Barb for Chemical Injection

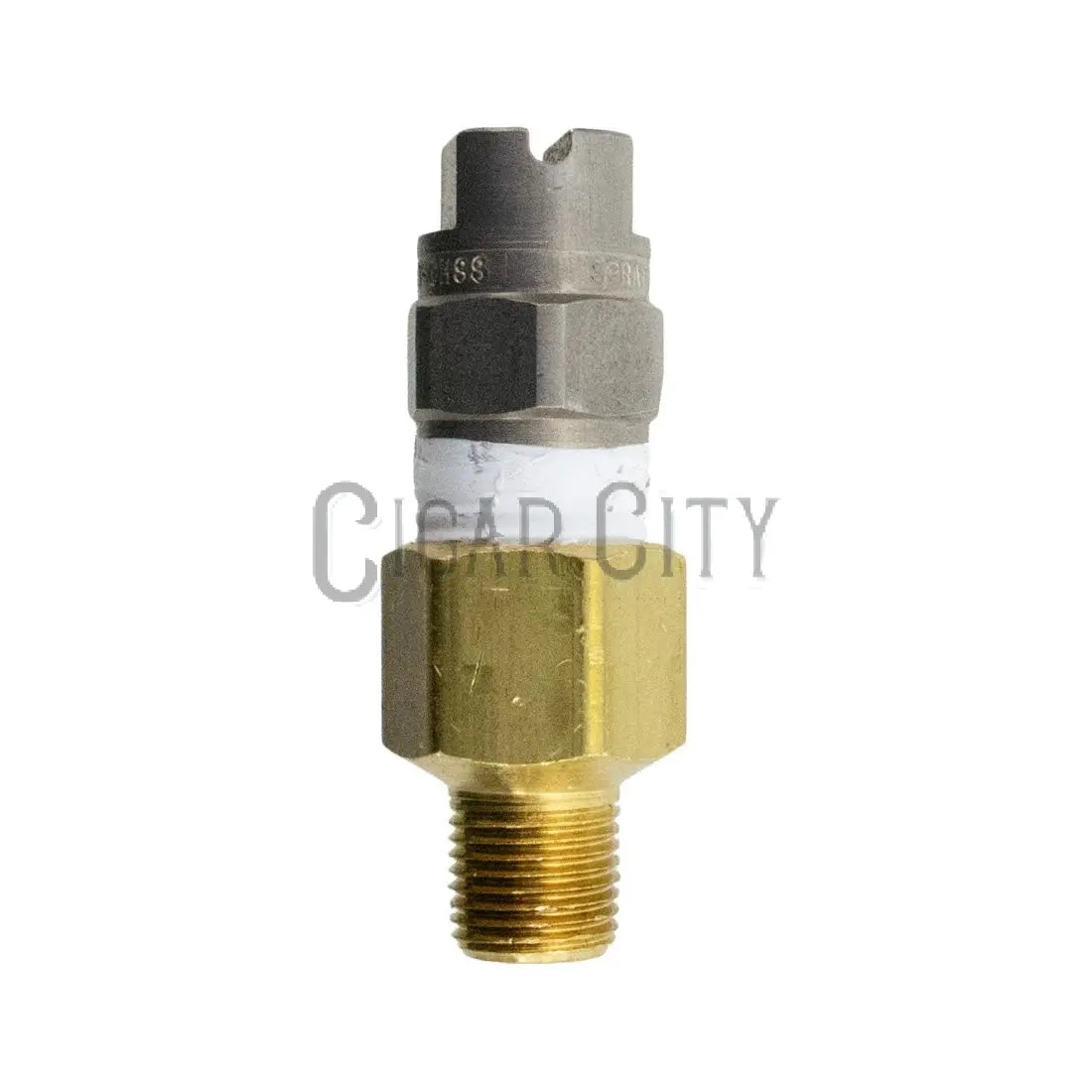

Hose Spray Nozzle Orifice with Internal Low-Pressure Adapter
Low-Pressure Soap Nozzle
14 Detergent Proportioners

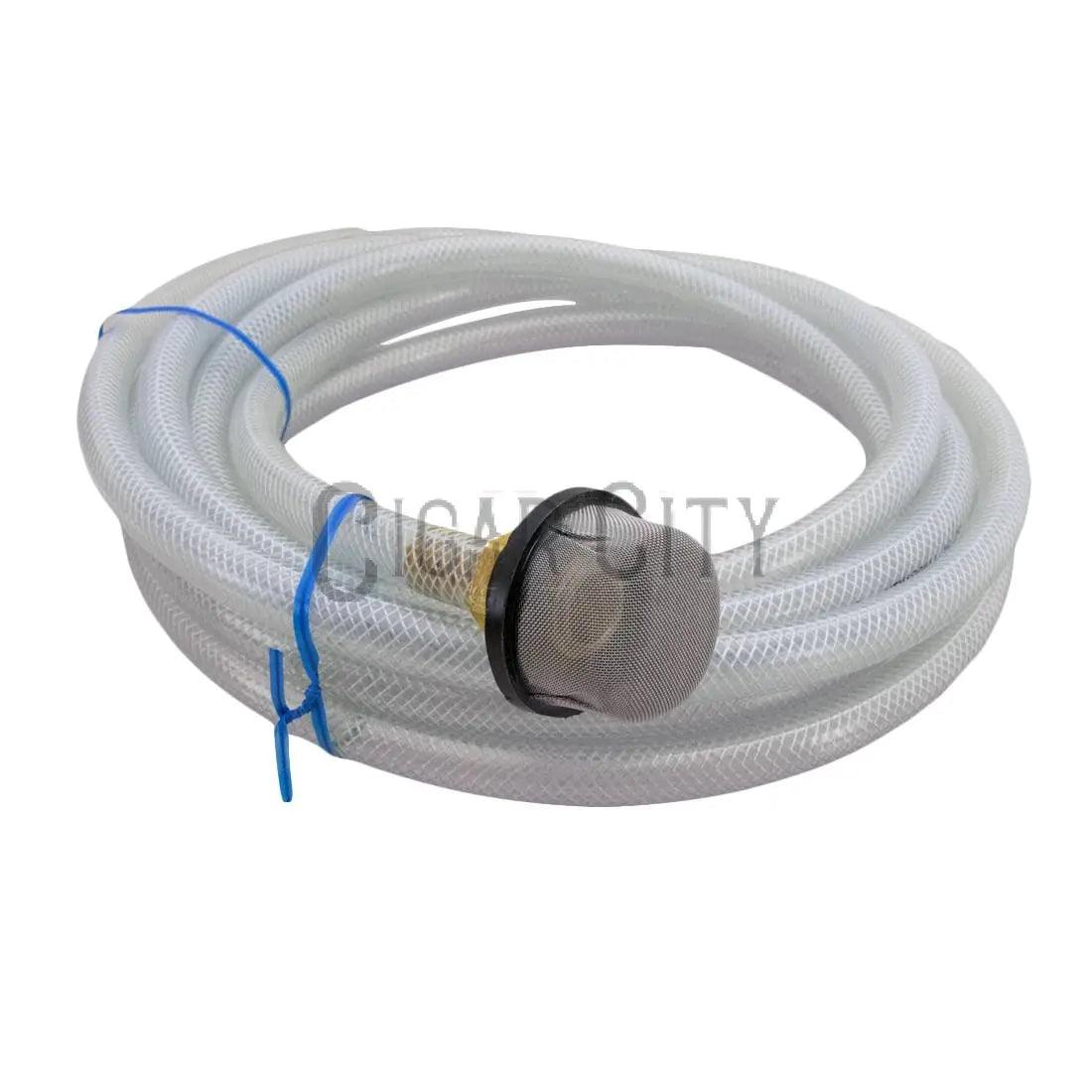

Shut Off Valve Filter Screen with Hose Barb
Check out the details of each kit below:
X-Jet Kit
GPM
PSI
X-Jet Injection Nozzle - #7
2 - 2.5
2000 - 3000
X-Jet Injection Nozzle - #9
3 - 3.5
2000 - 3000
X-Jet Injection Nozzle - #13
4 - 4.5
2500 - 4000
X-Jet Injection Nozzle - #16
5 - 6.5
2500 - 4000
X-Jet Injection Nozzle - #20
7 - 8
2500 - 4000
Use this chart and your Color-Coded Proportioners for the perfect ratio of Water to Chemical Mix.
Color
2 GPM
3 GPM
4 GPM
5 GPM
6 GPM
8 GPM
Open
.8 - 1
1.2 - 1
1.6 - 1
2 - 1
2.4 - 1
3 - 1
Gray
1.4 - 1
2 - 1
2.5 - 1
3 - 1
4 - 1
4.9 - 1
Black
3 - 1
4 - 1
5 - 1
6.5 - 1
8 - 1
11 - 1
Beige*
6 - 1
8 - 1
10 - 1
13 - 1
16 - 1
20 - 1
Red*
9 - 1
12 - 1
16 - 1
20 - 1
24 - 1
28 - 1
White
16 - 1
22 - 1
30 - 1
38 - 1
45 - 1
51 - 1
Blue
20 - 1
27 - 1
37 - 1
46 - 1
55 - 1
61 - 1
Tan (Med)
28 - 1
38 - 1
50 - 1
64 - 1
77 - 1
85 - 1
Green
31 - 1
42 - 1
57 - 1
70 - 1
85 - 1
90 - 1
Orange
35 - 1
48 - 1
64 - 1
80 - 1
96 - 1
102 - 1
Brown
48 - 1
66 - 1
88 - 1
110 - 1
133 - 1
145 - 1
Yellow
70 - 1
96 - 1
128 - 1
158 - 1
191 - 1
215 - 1
Aqua
94 - 1
128 - 1
170 - 1
215 - 1
257 - 1
284 - 1
Purple
146 - 1
200 - 1
240 - 1
300 - 1
400 - 1
501 - 1
Pink
280 - 1
353 - 1
500 - 1
480 - 1
766 - 1
906 - 1
* Typically used when applying undiluted House Wash or 12.5% Sodium Hypochlorite.
