OVERVIEW & BENEFITS

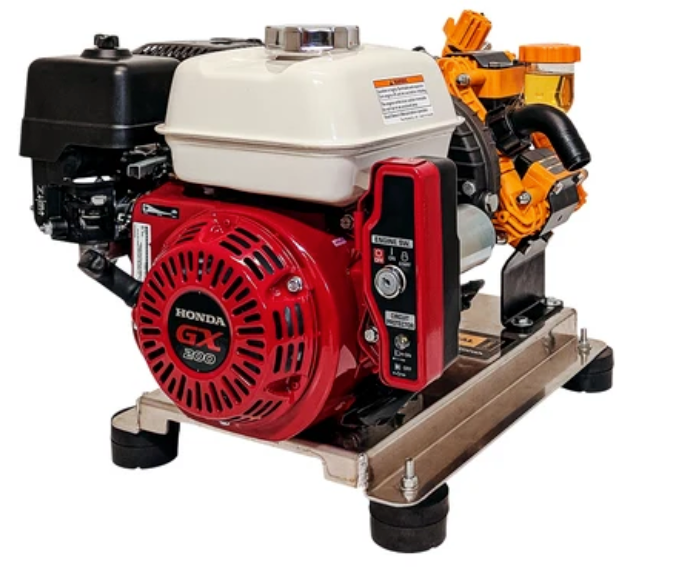

The BE Power Equipment SW1165HEZ Commercial Soft Wash System delivers 11.0 GPM at 300 PSI, giving professional soft wash contractors the high-volume, low-pressure performance needed for residential and commercial exterior cleaning.
Powered by a Honda GX200 196cc engine with recoil and electric start, the SW1165HEZ is built around a CP Z42PPGR diaphragm pump operating at 550 RPM. The combination provides the volume needed to efficiently apply and rinse cleaning solutions while keeping operating pressure well below that of a conventional pressure washer.
The complete system is mounted on an aluminum mobile cart frame with stabilizing feet. The frame also allows easy bolt-down installation, making the SW1165HEZ truck-mount ready for installation on a soft wash trailer, truck bed, or service vehicle.
Key Features & Benefits
- 11.0 GPM high-volume output
- 300 PSI maximum operating pressure
- Honda GX200 196cc commercial engine
- Recoil and electric start
- CP Z42PPGR diaphragm pump
- Pump operates at 550 RPM
- Aluminum mobile cart frame
- Truck-mount ready with easy bolt-down installation
- Single-piece manifold design
- Bolt-on pressure regulator
- 1-inch pump inlet
- 3/4-inch outlet
- 1/2-inch bypass
- Maximum operating temperature of 140°F
- Built for commercial soft washing
- Factory functionally tested before shipping
Built for Professional Soft Washing
The SW1165HEZ is designed around the high-flow, low-pressure requirements of professional soft washing.
At 11 GPM, the system provides substantial solution and rinse volume while operating at up to 300 PSI. This makes it suitable for cleaning exterior surfaces where conventional high pressure may be inappropriate.
Applications including:
- Asphalt shingle and tile roofs
- Wood siding
- Decks and fences
- Painted exterior surfaces
- Stucco
- Cedar and composite cladding
- Screens
- Gutters and fascia
- Commercial building exteriors
Honda GX200 Engine
At the heart of the SW1165HEZ is a Honda GX200 196cc OHV gasoline engine.
The engine features both electric and recoil starting, giving professional contractors convenient electric starting while retaining a manual recoil backup.
Engine Specifications:
Engine: Honda GX200
Displacement: 196cc
Start: Electric & Recoil
Fuel Tank: 3.1 L / 0.8 Gallon
Engine Oil: 10W-30
BE also specifies automatic low-oil shutdown as an engine protection feature.

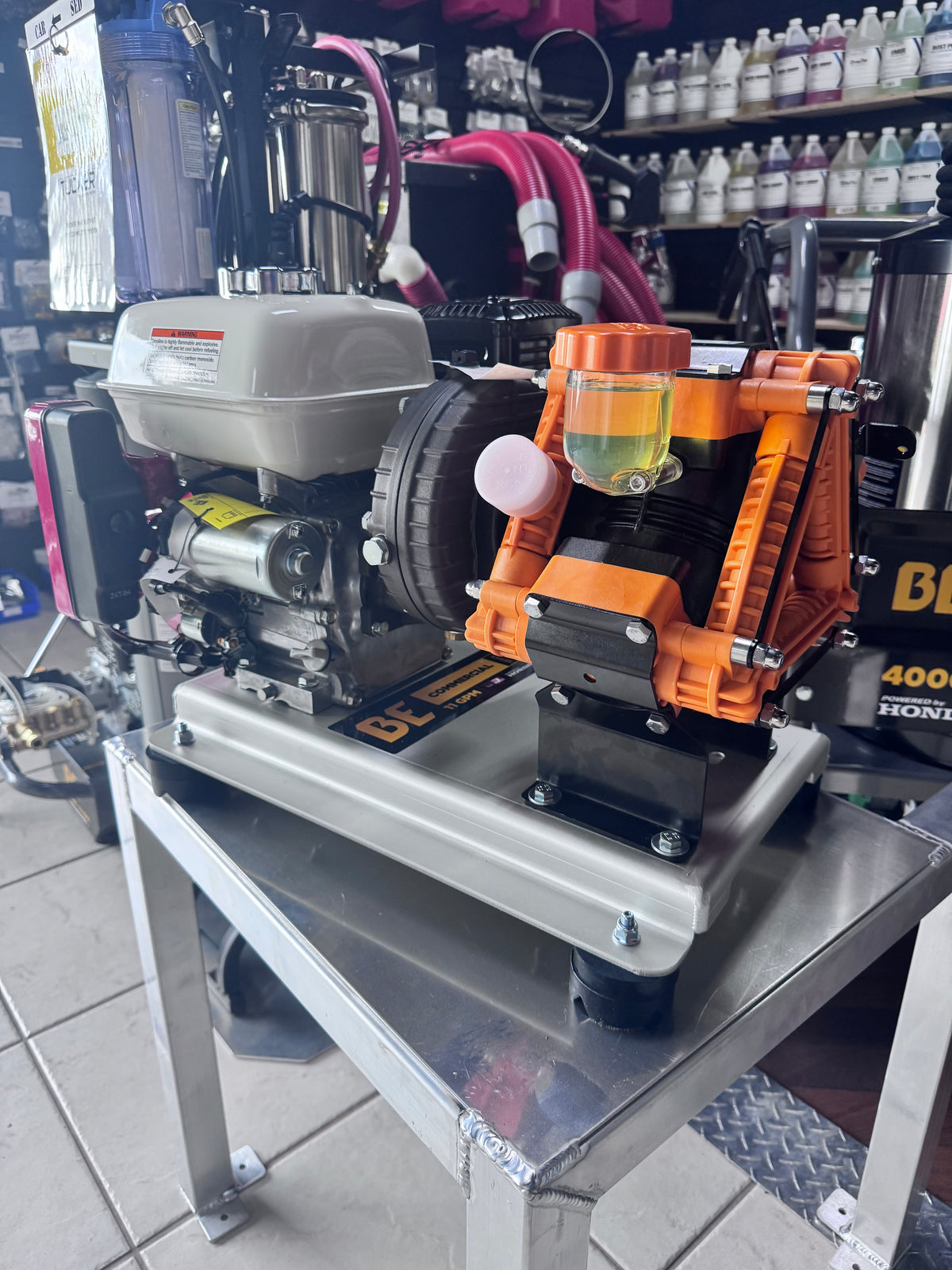

CP Z42PPGR Diaphragm Pump
The SW1165HEZ uses a CP Z42PPGR diaphragm pump designed for high-volume commercial soft wash applications.
The pump operates at 550 RPM, reduced from the engine's higher operating speed, and delivers up to 11.0 GPM at 300 PSI.
Pump Specifications:
Pump Model: CP Z42PPGR
Pump Type: Diaphragm
Flow: 11.0 GPM
Pressure: 300 PSI
Pump Speed: 550 RPM
Pump Oil: 30W Non-Detergent
Inlet: 1 inch
Outlet: 3/4 inch
Bypass: 1/2 inch
Maximum Temperature: 140°F / 60°C
Single-Piece Manifold & Bolt-On Regulator
BE equips the SW1165HEZ with a single-piece manifold, which is designed to reduce potential leak points compared with multi-piece manifold configurations.
The system also incorporates a bolt-on regulator for pressure adjustment. According to BE, the bolt-on mounting is designed to prevent the regulator from backing out or leaking when the pressure adjustment knob is operated.
Mobile or Truck-Mounted Installation

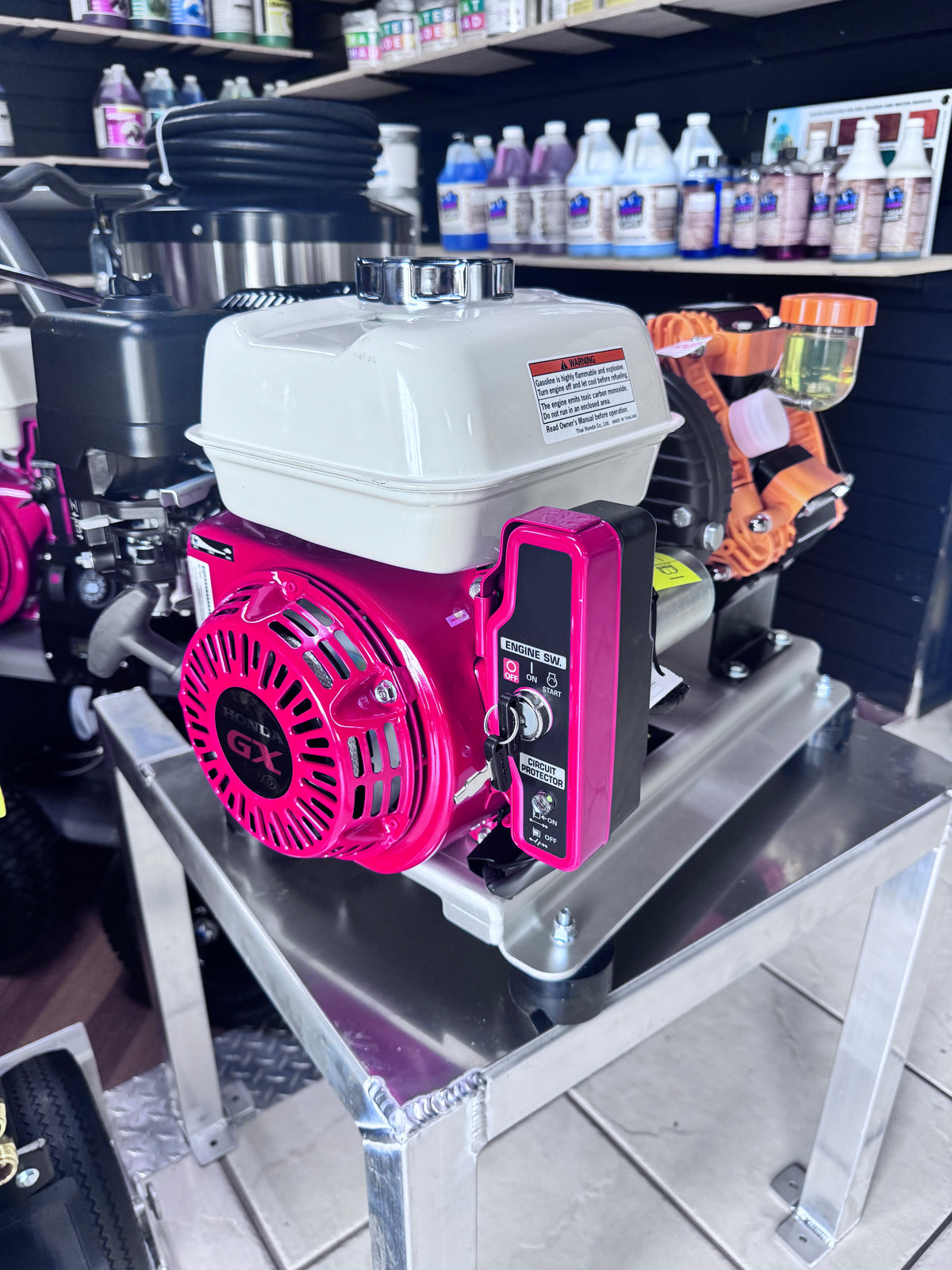

The SW1165HEZ comes installed on an aluminum mobile cart frame with stabilizing feet, allowing the unit to operate as a standalone mobile system.
For contractors building a dedicated soft wash rig, the frame is also designed for easy bolt-down installation on a truck, trailer, or service vehicle.
Included With the SW1165HEZ
The following items are included with the system:
- Engine oil
- Funnel
- Spark plug wrench
- NO PLUMBING
Warranty
Honda Engine: 3-Year Limited Warranty
Pump: 5-Year Limited Warranty
The Honda GX200 engine is covered separately through Honda's manufacturer engine warranty program.
