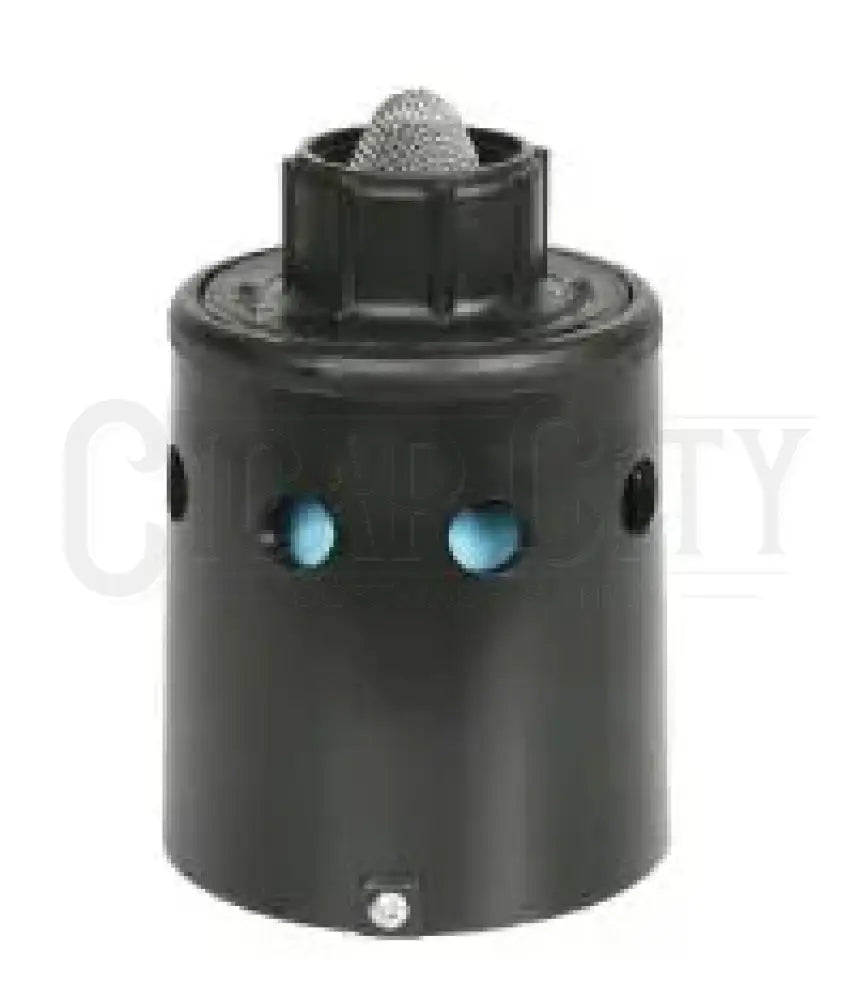

1″ Hudson Self‑Contained Float Valve – Automatic Tank Fill Valve
1″ Hudson Self‑Contained Float Valve – Automatic Tank Fill Valve
Couldn't load pickup availability
This 1″ Hudson Self‑Contained Float Valve is engineered for reliable liquid level control in buffer tanks, livestock troughs, irrigation systems, and soft‑wash setups. Featuring a compact, lever‑free design, it uses fluid pressure to regulate filling—no external float mechanisms needed.
Includes:
-
One float valve with 1″ female NPT inlet connection
-
Glass‑filled nylon body and ABS internal components for chemical and freeze resistance
-
Stainless steel and silicone internals ensure durability and long-term performance
-
Anti‑siphon design prevents backflow and contamination
Performance Specifications:
-
Connection: 1″ FNPT inlet, 1″ FNPT outlet
-
Flow capability: Approximately 80% of incoming flow, ideal for high‑volume refill situations
-
Operating pressure range: 4 – 100 PSI, with positive shut‑off beyond typical buffer tank pressures
-
Maximum temperature: up to 175 °F (approx. 90 °C) depending on seal option
-
Dimensions: roughly 5″ height × 3.75″ diameter
-
Weight: approximately 2 lb
Key Benefits:
-
No float arm or lever eliminates a common failure point—ideal for freeze-prone or high-usage settings
-
Anti-siphon design meets safety standards by preventing backflow contamination
-
High-flow capacity and automatic shutoff maintain consistent water levels without overflow
-
Durable materials resist UV, rust, and abrasive chemicals
-
Compact form factor allows discreet installation inside tanks or enclosures
