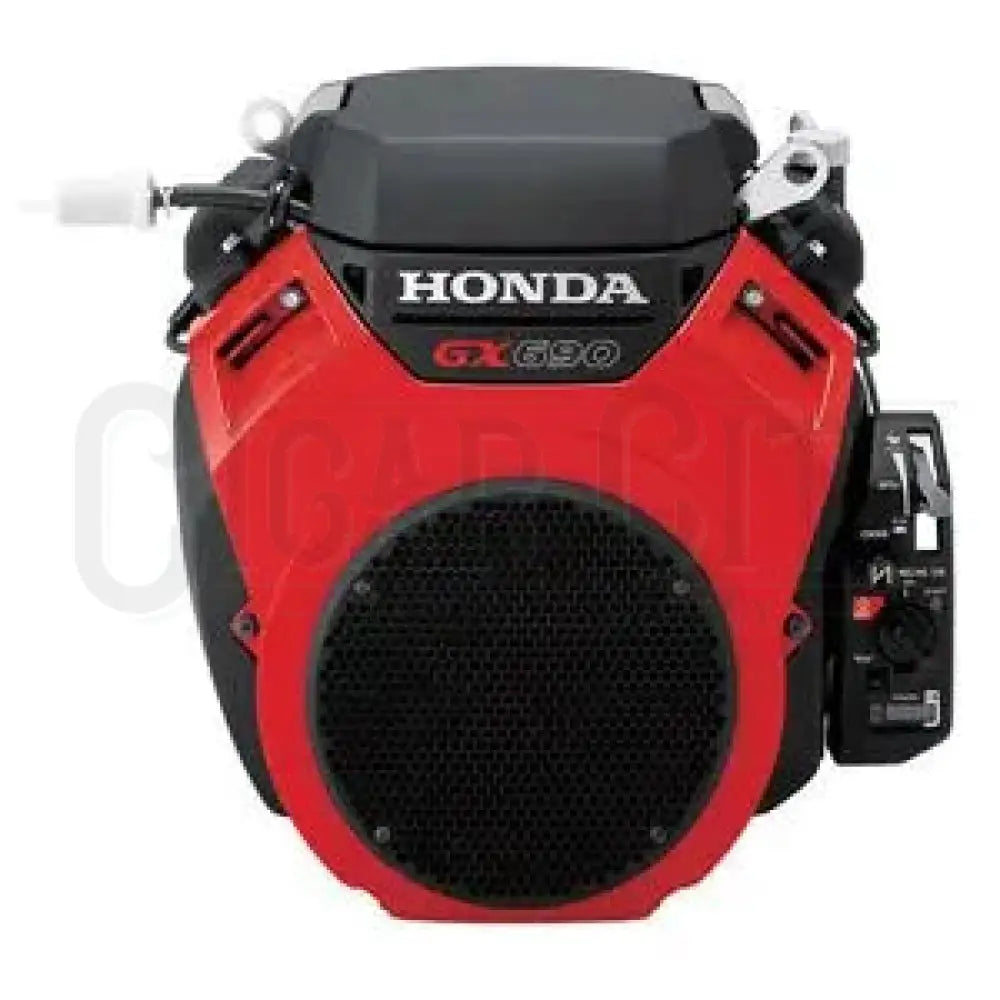

Honda GX690 Bare Engine
Honda GX690 Bare Engine
Regular price
$2,099.99
Regular price
Sale price
$2,099.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Honda 688cc GX Series V-Twin Engine is designed to offer higher horsepower, improved adaptability, quiet operation and greater fuel economy. Meets EPA and CARB emission levels standards. This engine is ideal for grain augers/elevators, pressure washers and semi-trailers with a power pack. Not for sale in CA.
- With control box
- Fuel tank and muffler not included
| Attribute | Specification |
|---|---|
|
item# |
109864 |
|
Brand |
Honda Engines |
|
Manufacture's Warranty |
3 year limited warranty |
|
Ship Weight |
110.0 LB |
|
Engine Displacement |
688 cc |
|
Engine Type |
GX Series OHV V-Twin |
|
Shaft Diameter |
1 1/8 in |
|
Shaft Length |
3.5 in |
|
Start Type |
Electric |
|
Shaft Keyway |
0.25 in |
|
Net Torque |
35.6 ft-lbs. |
|
Crankshaft |
T-type |
|
Cylinders (qty.) |
2 |
|
Cylinder Bore |
Integrated |
|
Net Power Output |
22.1 HP |
|
Compression Ratio |
9.3:1 |
|
Fuel Tank |
No |
| Attribute | Specification |
|---|---|
|
Oil Capacity |
2 qt |
|
Low Oil Shutdown |
No |
|
Low Oil Alert |
Yes |
|
Shaft Rotation (From PTO Shaft Side) |
Counterclockwise |
|
Governor System |
Mechanical |
|
Ignition System |
Electrical, digital CDI w/variable ignition timing |
|
Carburetor |
(2) Barrel, fuel cut solenoid, inner vent |
|
Lubrication System |
Full pressure |
|
Bearing Type |
Ball |
|
Cooling System |
Air cooled |
|
Bore |
3.1 in |
|
Stroke |
2.8 in |
|
Air Cleaner Type |
Dual element |
|
Choke Control |
Manual |
|
Throttle Control |
Manual |
|
Charging System Amps |
20 |
|
Muffler Included |
No |
