OVERVIEW & BENEFITS

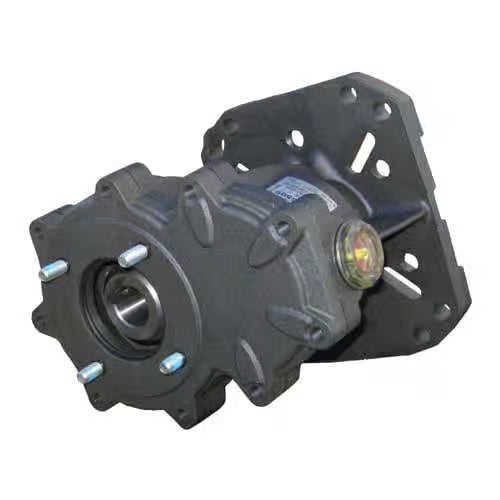

Gear Reducer for 1.125 Keyed Shaft
The General Pump ZGRS1125 Gear Reducer is used with gas engines on a 47 or 66 Series pump. This version has a 2.2:1 reduction ratio and is used with gas engines that have a 1.125" keyed shaft.
Specifications:
- Maximum Engine Horsepower: 25HP
- Maximum Engine Speed: 3600 RPM
- Reduction Ratio: 1:2.2
- Oil Capacity (Series 220 SP Industrial Pump Oil): 9.47 oz.
- Weight: 9.26 lbs.
- Fits Engine Shaft Diameter: 1.125"
Use With These Pump Models:
- 47 Series (1450 RPM versions)
- 66 Series (1450 RPM versions)
Features:
- Eliminates need for belts and pulleys - saves time and money
- Compact design for easier enclosure - Reduced mounting base size
- Self-aligning oversized bearing system - Reduces load on motor and pump bearings
- Self-contained lubrication system - uses 90W gear lube for quiet, long-life operation
- Large capacity crankcase
- Reversible mounting - left or right hand drive engines
- Large, helical cut, hardened steel gears
- Includes reversible dipstick and oil sight glass
