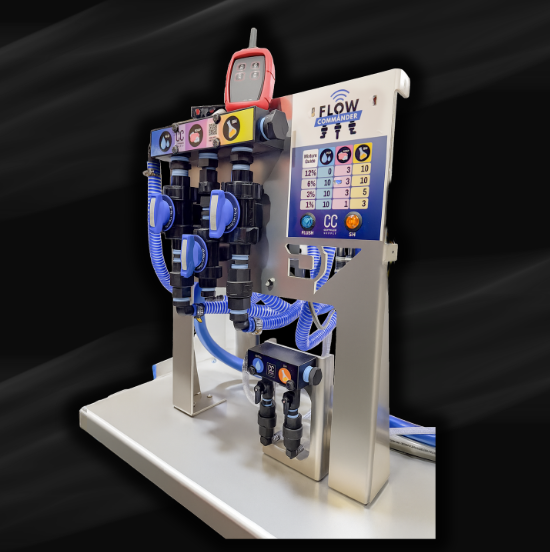

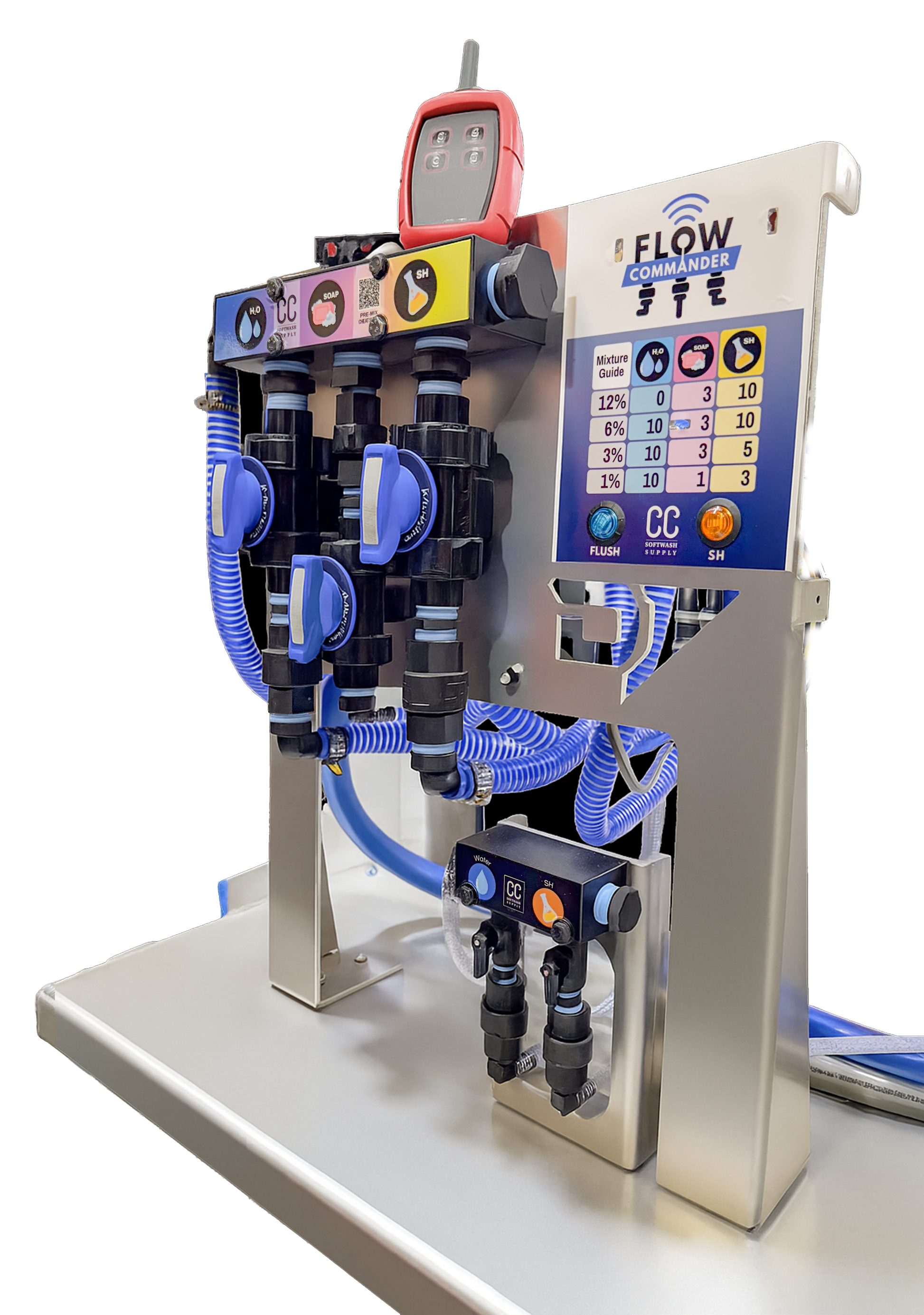

Flow Commander

The Ultimate All-In-One Remote Control System for Pressure Washing Rigs

The Flow Commander is a revolutionary remote control solution built for professional pressure washing and softwash rigs. Designed with simplicity, durability, and expandability in mind, this all-in-one system puts full command of your rig right at your fingertips.

Current lead time of 3-4 weeks before shipping.

Core Capabilities

• Remote Downstream Injector Bypass Control – Switch injectors on or off from anywhere.
• Softwash Flush Valve Control – Flush your softwash system remotely for faster, cleaner transitions.
• Engine Start/Stop Control – Power your rig engines on or off without ever touching the machine.

• Control up to 16 Channels!

Expandable Design

The Flow Commander is engineered to grow with your business. Expansion is simple—no need to open the control box:

• IGX800/GX690 Remote Start/Stop
• Downstream Injector Flush System  - Easily switch between SH & Water for easy flushing.
• Downstream Injector 2 Step System - Easily switch between 2 different chemicals.
• Downstream Injector Bypass
• Downstream Injector Bypass plus  Flush System
• 12v Softwash Pump Control
• Electric Hose Reel Control (Requires 16CH Remote)
• Hotbox Control (Requires 16CH remote)
• Multiple Machine control including GX200/GX390/GX690/IGX800.

Base System Features

Universal Mounting Plate – Easy to install anywhere on your rig.
Plug-and-Play Expansion – Modular design for quick upgrades.
Rugged Housing – Built to handle tough jobsite conditions.
Simple Operation – Intuitive controls, even for new operators.

Why Choose Flow Commander?

With the Flow Commander, you get the freedom to run your entire rig remotely—saving time, improving efficiency, and reducing wear and tear on your equipment. Whether you’re starting small or building a fully loaded rig, the Flow Commander adapts to your needs today and into the future.

What's Included?

FlowCommander Base System:

• Mounting Base
• Back Cover for keeping dust/dirt/water off of electronics
• 10ft 14GA Wiring Harness
• High Quality Waterproof 4CH Industrial Remote
  • No Alibaba/Amazon/Cheap Chinese junk remotes!
• 3-Valve Cyclone 1" Proportioner for SH/Water and 1/2" for Soap
• 3 Way 12v Teejet
• 3/8" Banjo 12v Shutoff Valve (Soap Line)
• 4 Channel Remote
• • CH1: P40 Start
  • CH2: P40 Stop
  • CH3: P40 Flush Mode (No Soap + Water instead of SH)
  • CH4: Open: Optional Plug - 4 wires blunt cut and ready to wire into anything (Red = Power, Black = Ground, Blue = Normally Closed, White = Normally Open)

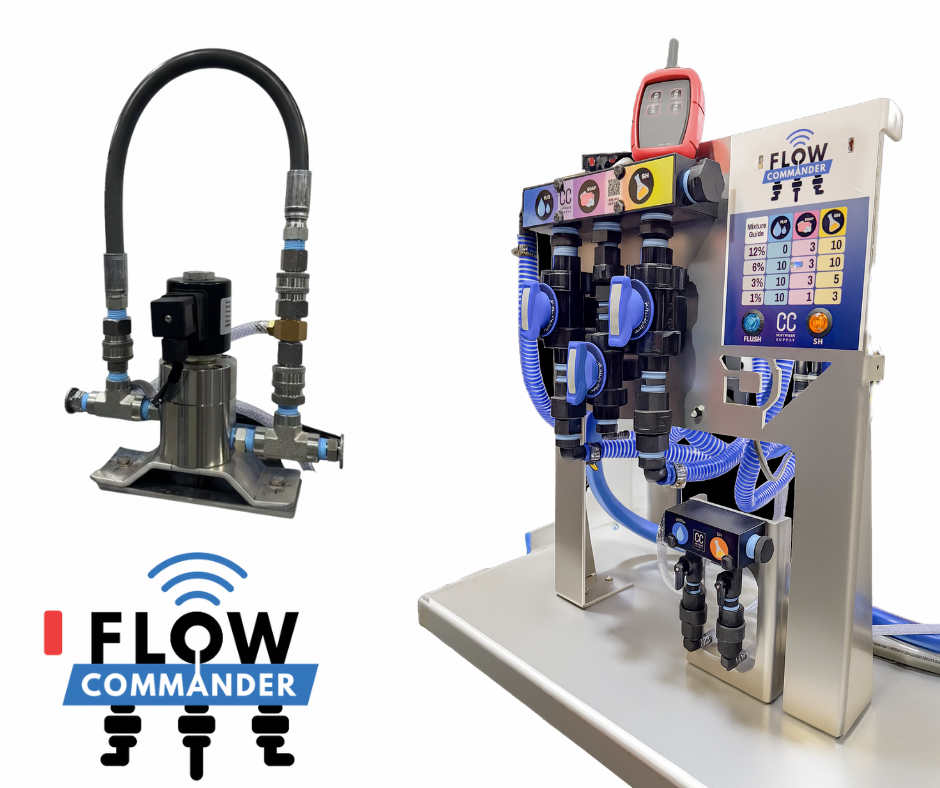

FlowCommander Base System with Downstream Injector Bypass & Flush

• Mounting Base
• Back Cover for keeping dust/dirt/water off of electronics
• 10ft 14GA Wiring Harness
• High Quality Waterproof 4CH Industrial Remote
  • No Alibaba/Amazon/Cheap Chinese junk remotes!
• 3-Valve Cyclone 1" Proportioner for SH/Water and 1/2" for Soap
• 3 Way 12v Teejet
• 3/8" Banjo 12v Shutoff Valve (Soap Line)
• 12v Downstream Injector Bypass Valve
• Bypass Loop with 10ft Wiring Harness & 3/8" SS Connections
• Bypass Valve Mounting Bracket
• 12v Teejet 3/4" 3 Way Valve with 1/4" Barbs (Water Flush / SH Chemical) for Injector
• 8 Channel Remote
  • CH1: P40 Start
  • CH2: P40 Stop
  • CH3: P40 Flush Mode (No Soap + Water instead of SH)
  • CH5: Pressure Washer Engine Start
  • CH6: Pressure Washer Engine Stop
  • CH7: Downstream Bypass Control (Forces through injector and injector switches to SH. When in flush mode, the ball valve opens and the injector switches to water)
  • CH8: Optional Plug (Red = Power, Black = Ground, Blue = Normally Closed, White = Normally Open)

Hoses, mounting hardware and  are not included.
