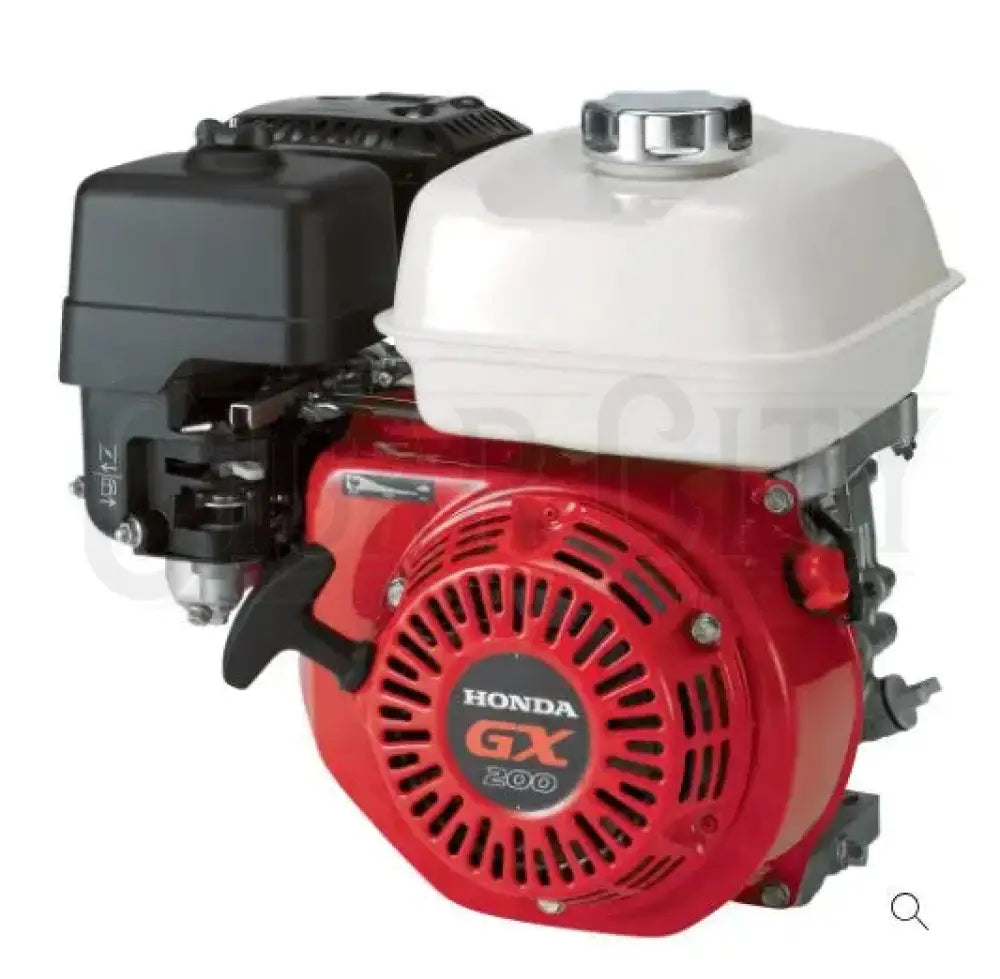

Honda GX200 Bare Engine Pull Start
Honda GX200 Bare Engine Pull Start
Couldn't load pickup availability
The Honda 196cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common application is for non-Honda water pumps; ideal for US made centrifugal pumps.
- Honda 196cc GX OHV air-cooled, 4-stroke, horizontal engine
- Automatic decompression for easy starting
- Heavy-duty ball bearing supported crankshaft
- Double walled heavy-duty tank with in tank fuel strainer
- 50-state compliant engine
| Attribute | Specification |
|---|---|
|
item# |
606511 |
|
Brand |
Honda Engines |
|
Manufacture's Warranty |
3 year limited warranty |
|
Ship Weight |
39.0 LB |
|
Engine Displacement |
196 cc |
|
Engine Type |
GX Series OHV commercial-duty |
|
Shaft Diameter |
5/8 in |
|
Shaft Length |
2.42 in |
|
Start Type |
Recoil |
|
Net Torque |
9.1 ft-lbs. |
|
Crankshaft |
T-type |
|
PTO Height |
4.17 in |
|
Cylinders (qty.) |
1 |
|
Cylinder Bore |
Cast Iron |
|
Net Power Output |
5.5 HP |
|
Compression Ratio |
8.5:1 |
| Attribute | Specification |
|---|---|
|
Fuel Tank |
Yes |
|
Fuel Tank Capacity |
3.3 qt |
|
Oil Capacity |
0.63 qt |
|
Low Oil Shutdown |
Yes |
|
Shaft Rotation (From PTO Shaft Side) |
Counterclockwise |
|
Governor System |
Centrifugal mechanical |
|
Ignition System |
Electronic |
|
Carburetor |
Float |
|
Lubrication System |
Splash |
|
Cooling System |
Air cooled |
|
Bore |
2.7 in |
|
Stroke |
2.1 in |
|
Air Cleaner Type |
Dual element |
|
Choke Control |
Manual |
|
Throttle Control |
Manual |
|
Muffler Included |
Yes |
