CAT Pumps 7232 Fixed Brass Chemical Injector - 2.1 Mm Orifice, 250 PSI, 3.0 GPM PU7232

Fixed Chemical Injector

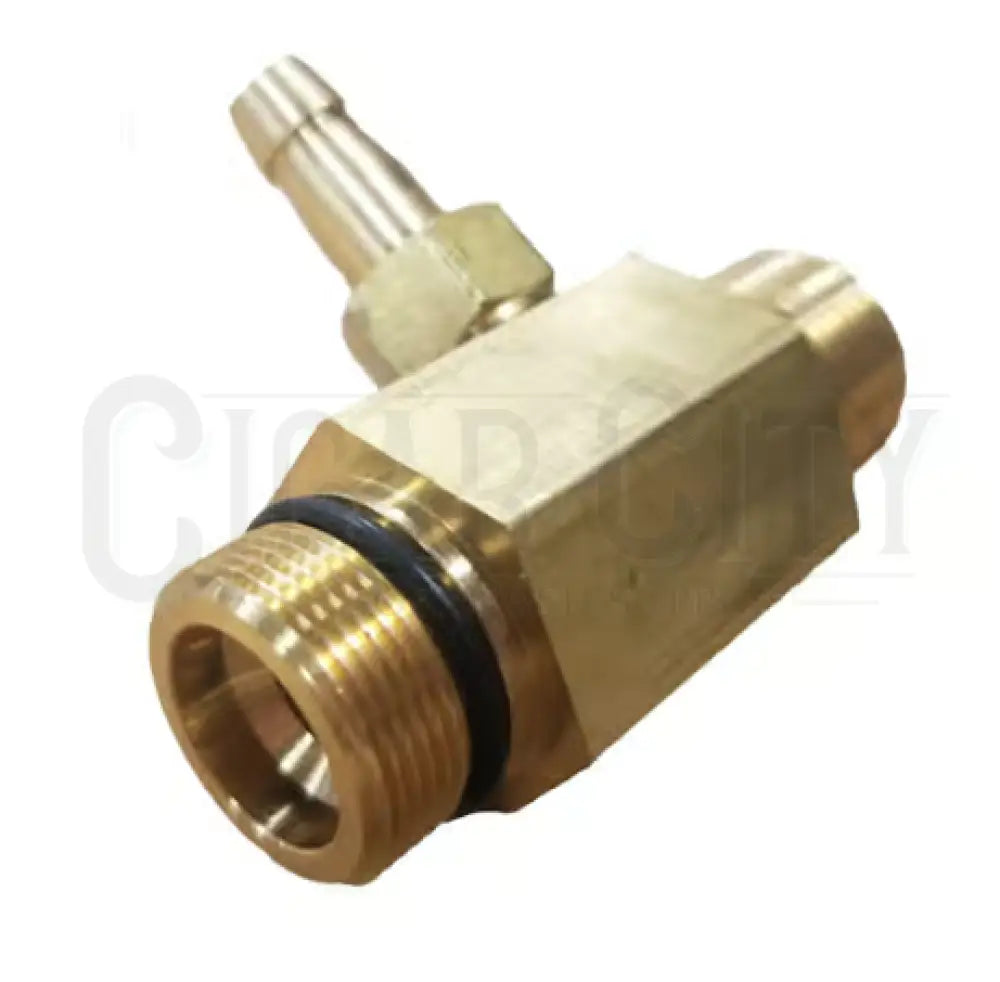

CAT Pumps 7232 a fixed chemical injector for 3DX30GSI Pumps. Injector's orifice measures 2.1 mm. Constructed with brass for use in wet environments such as car washes. Handles a maximum flow rate of 3.0 GPM and a maximum pressure of 250 PSI. Equipped with an M18x1.0 inlet port and a discharge port measuring 3/8" NPTM.

Specifications:

• Orifice: 2.1 mm
• Maximum GPM: 3.0
• Maximum Pressure: 250 PSI
• Maximum Chemical Draw: 37.2 oz/min
• Pressure Drop Across Injector at System Pressure (2500 PSI): 141 PSI
• Material: Brass
• Hose Barb: ¼"
• Tapped Barb: 8/32" UNF
• Inlet Port: M18x1.0
• Discharge Port: 3/8" NPTM
• Dimensions: 2 x 1 x 1.75"
• Weight: 0.29 lbs.
• Compatible with 3DX30GSI Pumps
