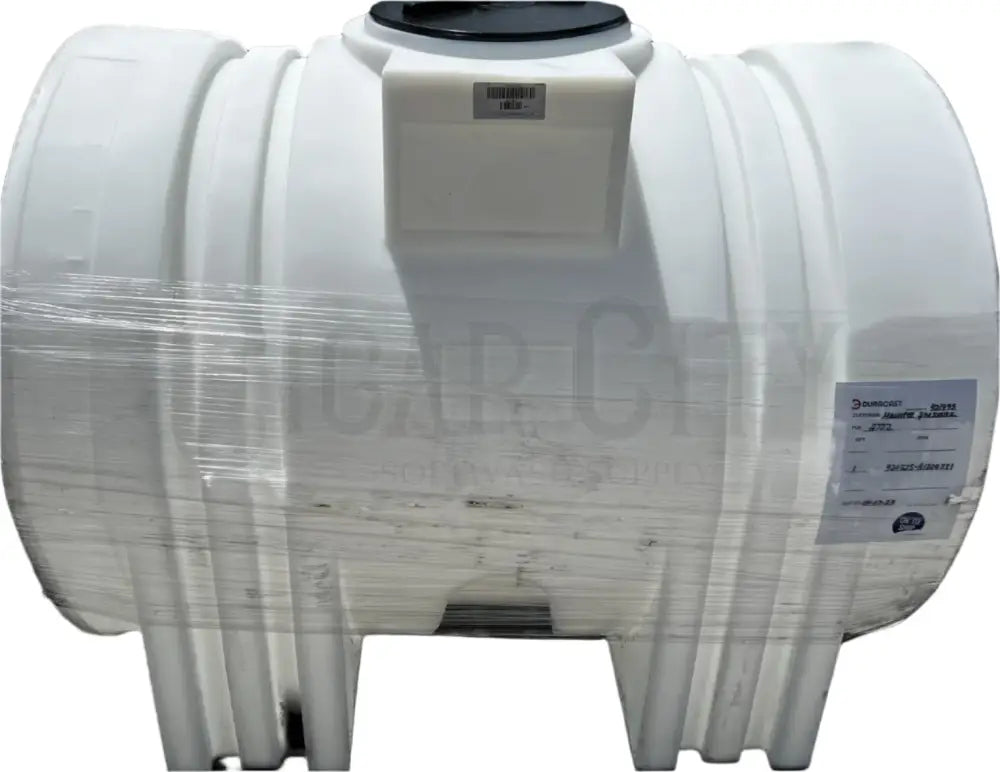

525 Gallon Poly Horizontal Leg Tank – Model TNK525
525 Gallon Poly Horizontal Leg Tank – Model TNK525
Couldn't load pickup availability
LTL Order Notice: As of 09/2025 To help prevent fraudulent LTL shipments, a valid driver’s license must be provided for all LTL shipments. You will be contacted after purchase.
The 525 Gallon Poly Horizontal Leg Tank (TNK525) provides large-volume liquid storage in a compact, transport-friendly design. Crafted from UV-stabilized, high-density polyethylene, this tank is both durable and chemical-resistant, making it ideal for softwash systems, sprayer setups, agricultural use, or general utility applications.
Its built-in molded legs act as baffles to reduce sloshing while ensuring stability on trailers, trailers, or flat surfaces. With integrated gallon indicators and a wide threaded fill opening, it offers convenient monitoring and easy filling.
Key Features
-
Capacity: 525 gallons
-
Orientation: Horizontal “leg tank” design with built-in baffles for stability
-
Material: UV-resistant, high-density polyethylene (HDPE) suitable for bleach, water, and other chemicals
-
Fill Lid: 16″ threaded, vented for easy access
-
Outlet: Standard 2″ female-threaded bulkhead fitting
-
Gallon Markings: Molded-in for quick visual level checks
-
Mounting: Ready for secure tie-down; optional bands available for transport security
Specifications
-
Model: TNK525
-
Dimensions: Approx. 71″ L × 49″ W × 54″ H
-
Weight (Empty): ~130–140 lbs
-
Material Rating: FDA/NSF-safe resin with UV stabilizer
-
Max Temp: ~120°F
-
Orientation: Horizontal with leg supports, flat bottom
