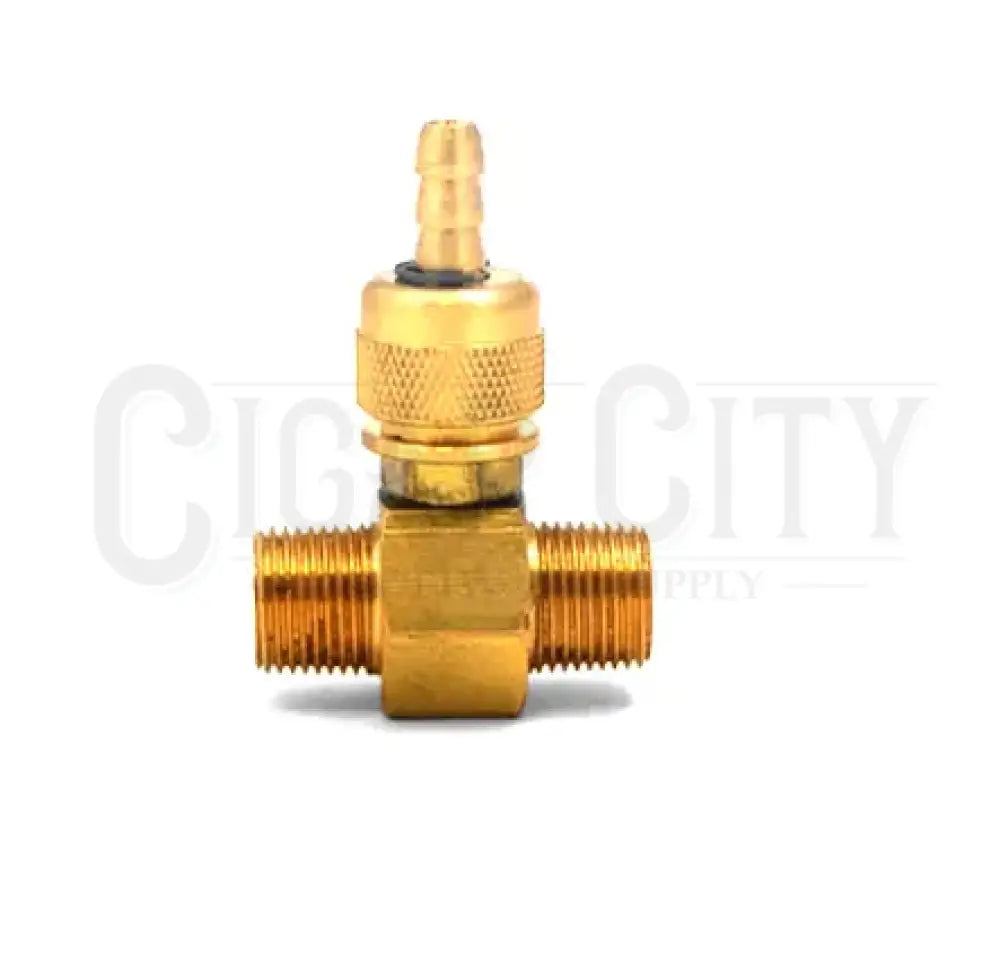

3/8″ Adjustable Acid Chemical Injector – 2.3mm Orifice – 22.0325

The 3/8″ Adjustable Acid Chemical Injector (22.0325) is a downstream injection fitting designed for use with low pH chemicals, such as acids and specialty detergents. Featuring a 2.3mm orifice, this injector is calibrated for optimal draw rates in softwash, pressure washing, and industrial cleaning applications.

The adjustable metering knob allows for precise control of chemical dilution ratios, while the chemical-resistant construction ensures long-term reliability in harsh environments. This injector is built to handle acid-based cleaners and other aggressive solutions.

Key Features:

• Inlet/Outlet Size: 3/8″ male NPT

• Orifice Size: 2.3mm

• Adjustable Metering: Fine-tune chemical draw rate

• Compatible Chemicals: Acid-based solutions, low pH cleaners, degreasers

• Durable & chemical-resistant body

• Application: Softwash, downstream injection, fleet washing, surface cleaning

Specifications:

• Model: 22.0325

• Flow Rate Range: ~2–5 GPM (varies by system pressure)

• Orifice Diameter: 2.3mm

• Connection Type: 3/8″ MPT inlet and outlet

• Material: Acid-resistant housing and seals

• Max Pressure: Up to 4000 PSI

• Temperature Rating: Up to 180°F

• Draw Rate: Adjustable via metering knob
