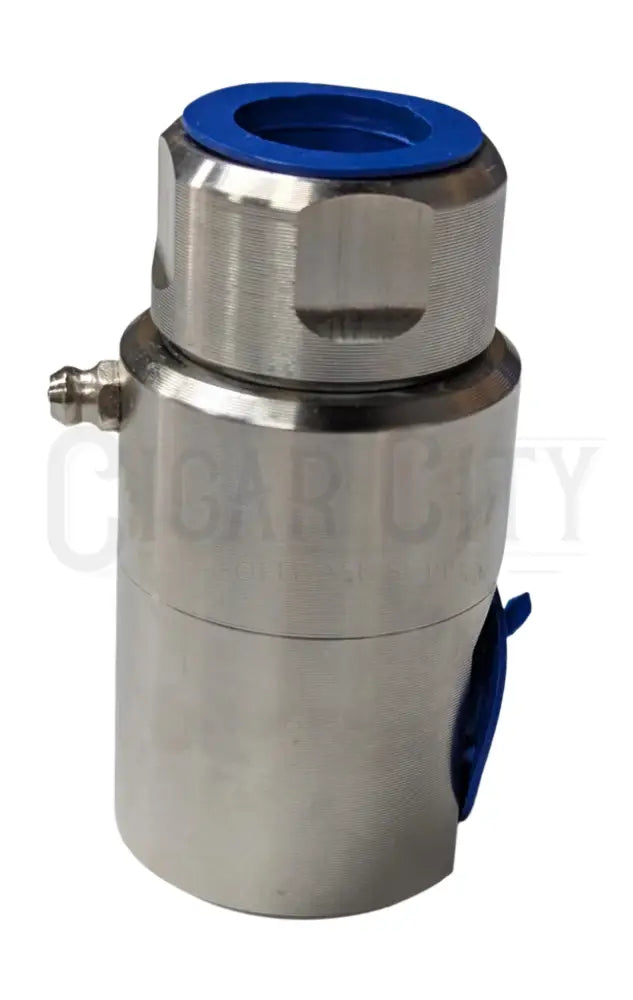

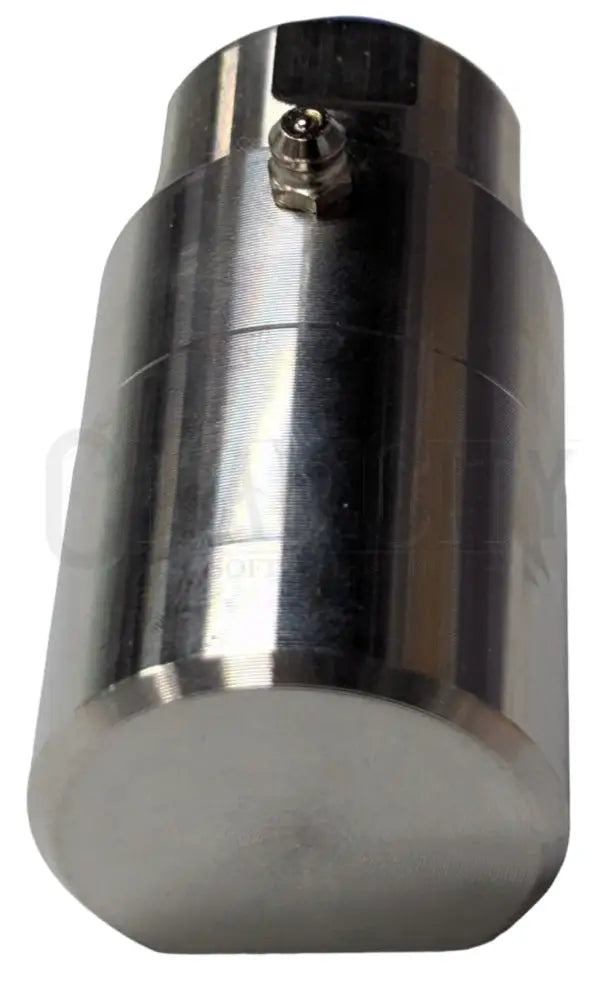

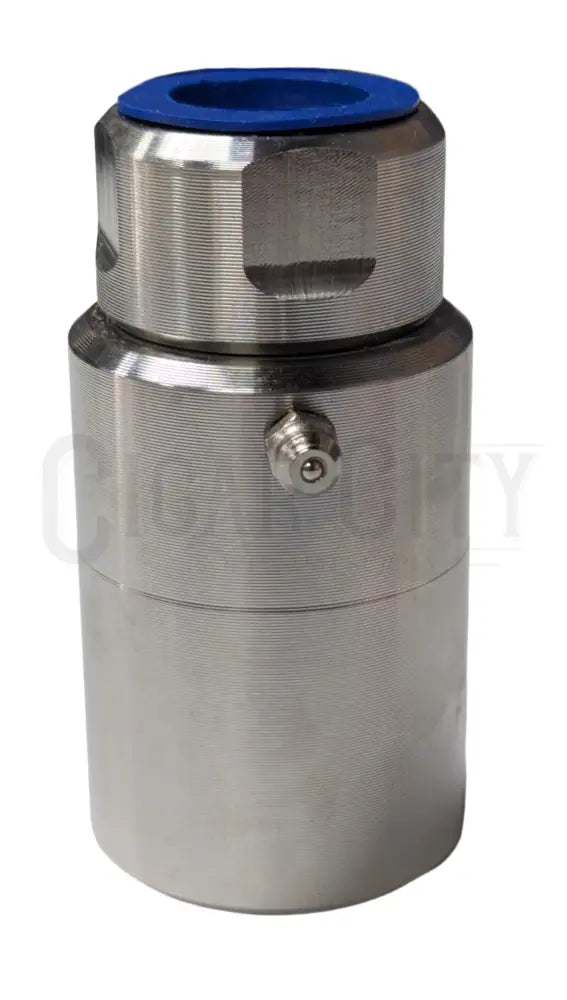

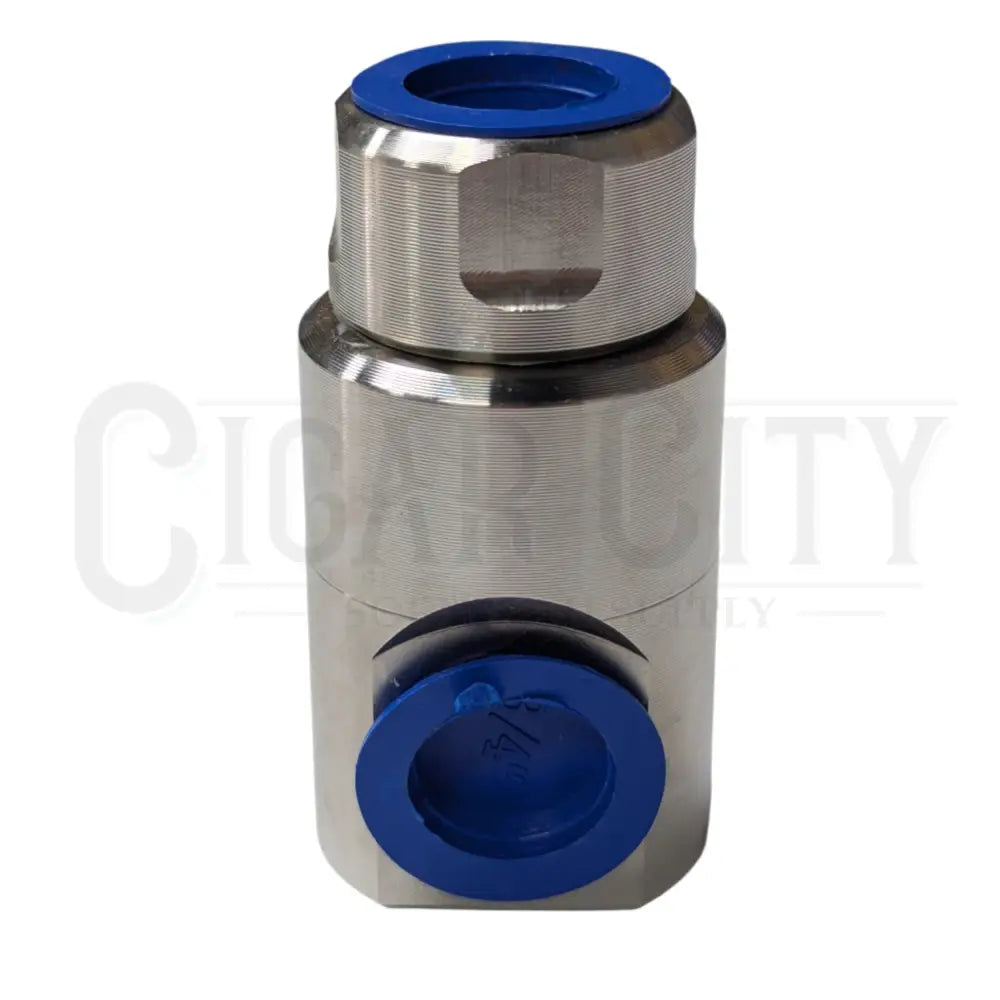

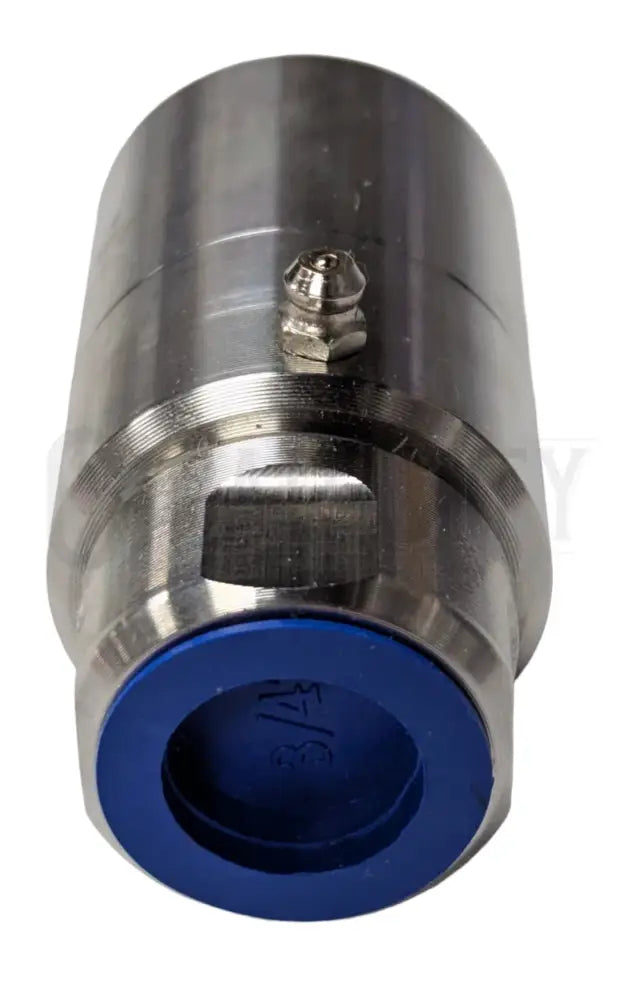

3/4″ Super Swivel for Hose Reels – 90° Stainless Steel Swivel – Model 5034

The 3/4″ Hose Reel Super Swivel (Model 5034) is a high-performance, heavy-duty 90-degree swivel designed to provide smooth, leak-free rotation on hose reels in softwash, pressure washing, and industrial fluid systems. Built with a stainless steel body and precision ball bearings, this swivel eliminates hose twisting and kinks while withstanding high pressures and chemical exposure.

Compatible with most commercial-grade hose reels, the 5034 Super Swivel is ideal for use with 3/4" hoses carrying water, bleach, surfactants, or other softwash solutions.

Key Features:

• Connection Size: 3/4" Female NPT inlet x 3/4" Male NPT outlet

• Design: 90° elbow swivel for compact, reel-mounted applications

• Material: Stainless steel body with hardened steel or brass internals (varies by model)

• Seal Type: Viton or Buna seals for chemical resistance

• Full-flow design for unrestricted water or chemical flow

• Ideal for: Softwash systems, pressure washers, and chemical spray rigs

• Extends hose life by preventing binding and strain

Specifications:

• Model Number: 5034

• Thread Size: 3/4" FPT x 3/4" MPT

• Swivel Type: 90-degree super swivel

• Material: Stainless steel housing

• Seal Material: Viton (standard)

• Max Pressure: Up to 5000 PSI (depending on model version)

• Max Temperature: 250°F

• Rotation: Smooth, continuous under pressure

• Applications: Hose reels, softwash trailers, chemical sprayers, industrial washdown
