Comes Unassembled

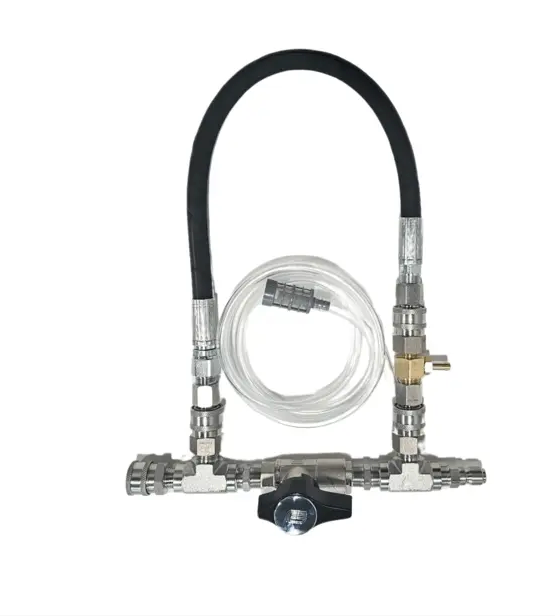

The 2.1 Chemical Injector DN10 Bypass Kit is a complete solution designed for softwash systems and pressure washers requiring precise chemical injection with high-flow bypass control. Featuring a DN10 ball valve and premium fittings, this bypass kit enables quick switching between soap and rinse functions, extending pump life and reducing chemical waste.

Ideal for systems operating in the 2.1 orafice flow range, this kit delivers professional-grade control and is a favorite among softwash contractors who want efficient chemical delivery and clean rinsing in one reliable package.

Kit Includes:

• DN10 Stainless Steel Bypass Ball Valve

• 2.1 High-Performance Chemical Injector

• Brass or stainless quick-connect fittings (based on availability)

• Pre-plumbed hose barbs or compression adapters

• PTFE tape and thread sealant (may vary by kit)

Performance Specifications:

• Flow Rate: Optimized for 2.1 GPM softwash systems

• Valve Type: DN10 full-flow bypass valve

• Compatible With: Bleach, surfactants, and other softwash chemicals

• Inlet/Outlet: 3/8″ FNPT or quick connect

• Rated Pressure: Up to 3,000 PSI

• Application: Downstream chemical injection and rinse switching

• Installation: Inline or looped into rinse/soap hose routing

Key Benefits:

• Quickly switch between rinse and soap modes

• Extends pump life by bypassing chemicals when not needed

• Clean, professional appearance with minimal fittings

• Simplifies system setup for mobile or trailer softwash rigs

• Compatible with most proportioner and injector systems
