OVERVIEW & BENEFITS
Spray nozzles designed for softwash and pressure washing systems. Each tip delivers a different spray pattern for various cleaning tasks, and the universal 1/4″ quick-connect base makes swapping tips fast and easy. Ideal for surfaces ranging from delicate to heavy-duty.
Includes:
-

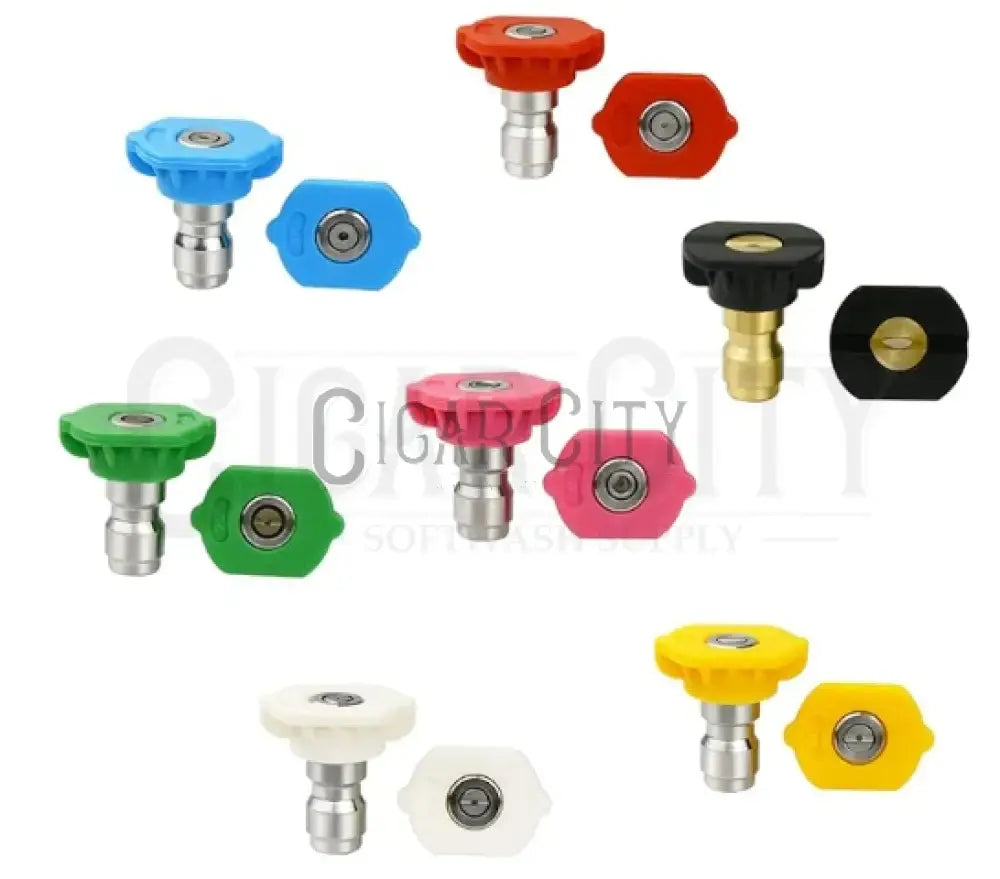

Set of 5 color-coded nozzles
-
Spray patterns: 0° (Red), 15° (Yellow), 25° (Green), 40° (White), 65° Soap (Black)
-
1/4″ quick-connect plug (standard size)
Performance Specifications:
-
Inlet Size: 1/4″ QC (Quick Connect)
-
Material: Stainless steel core with molded plastic heads
-
Spray Angles: 0°, 15°, 25°, 40°, 65°
-
Max Pressure: Up to 4,000 PSI
-
Flow Rate: Varies by tip (typically 2.0 to 5.0 GPM)

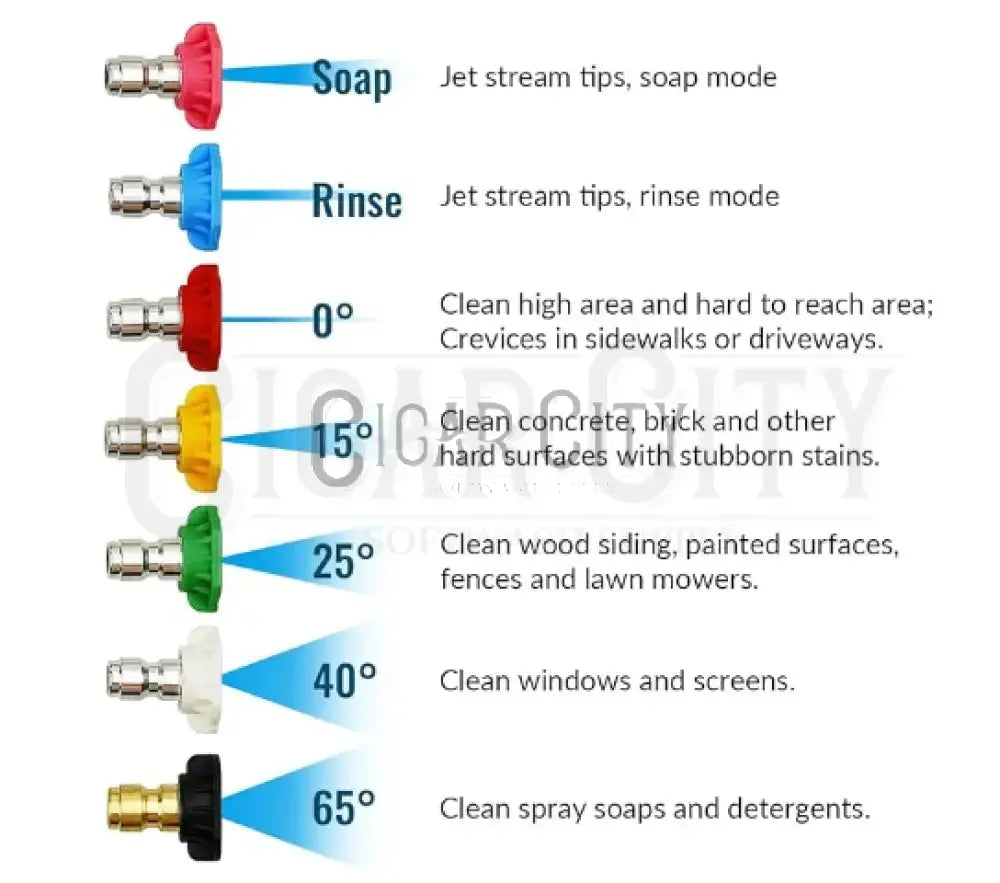

Color Code Reference:
-

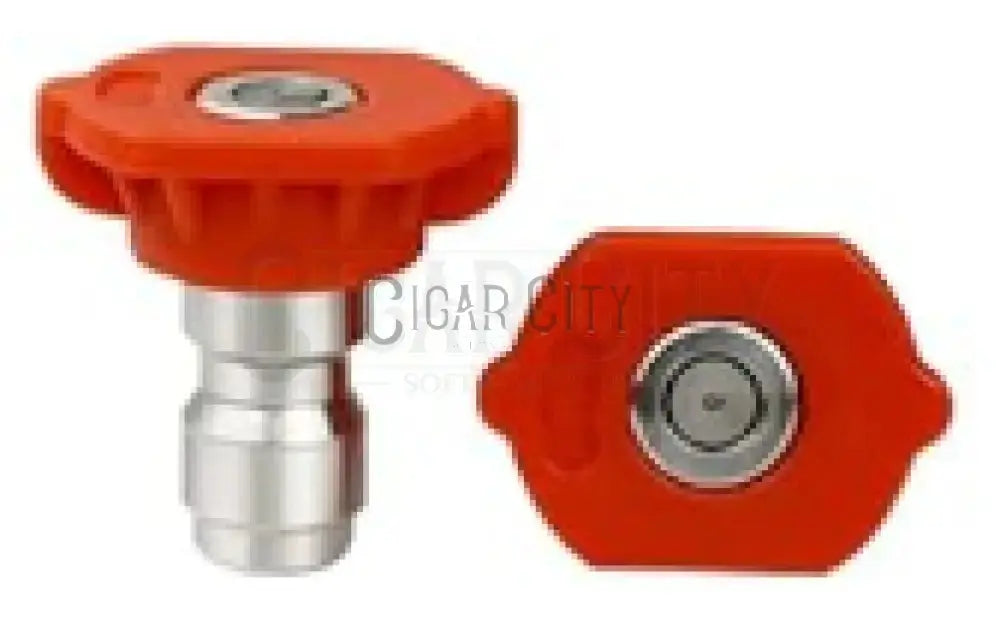

Red (0°): High-pressure pinpoint blast
-

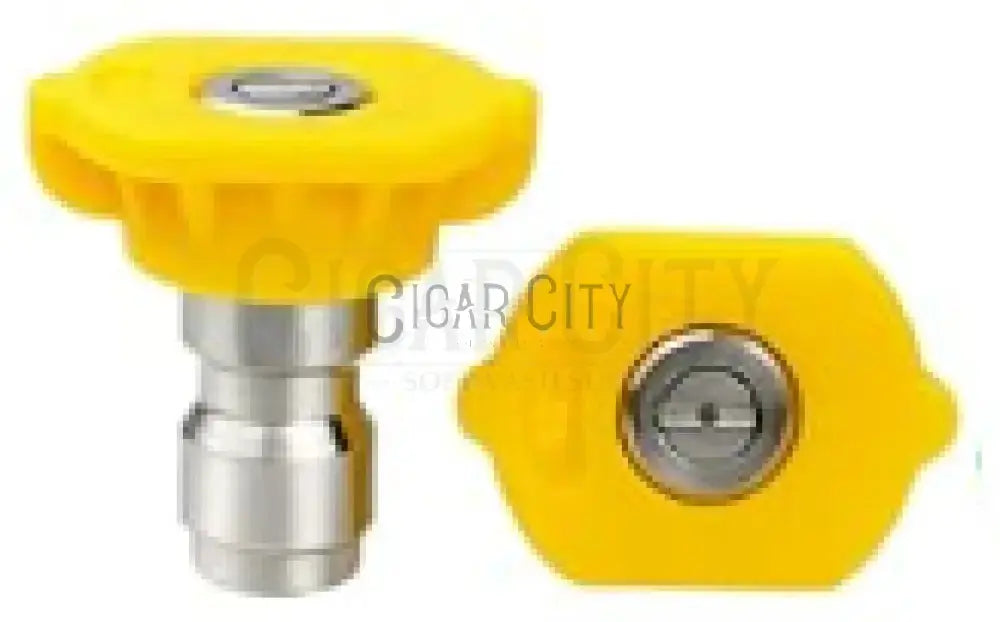

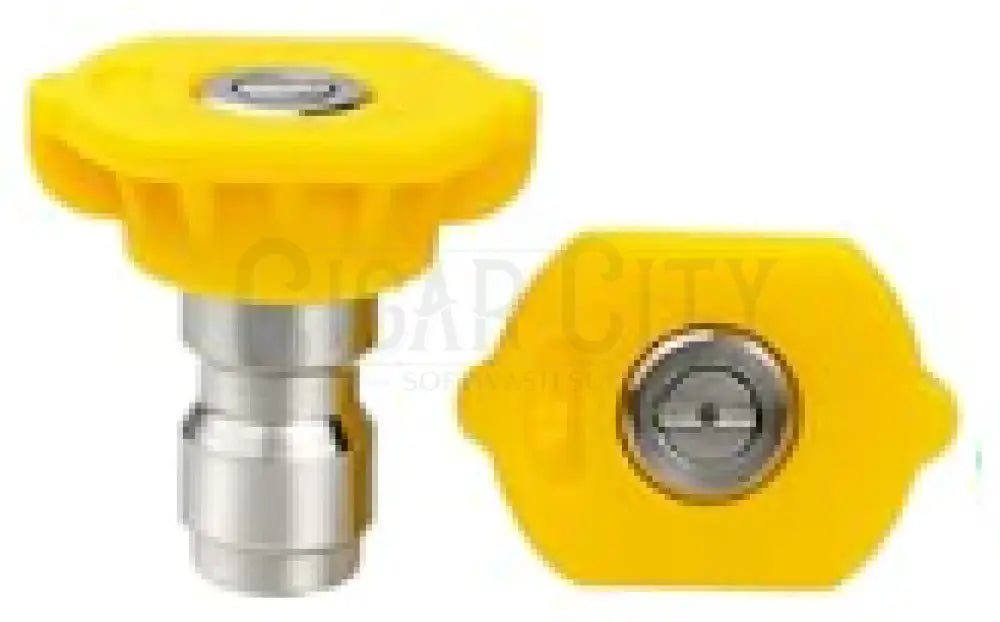

Yellow (15°): High-pressure stripping
-

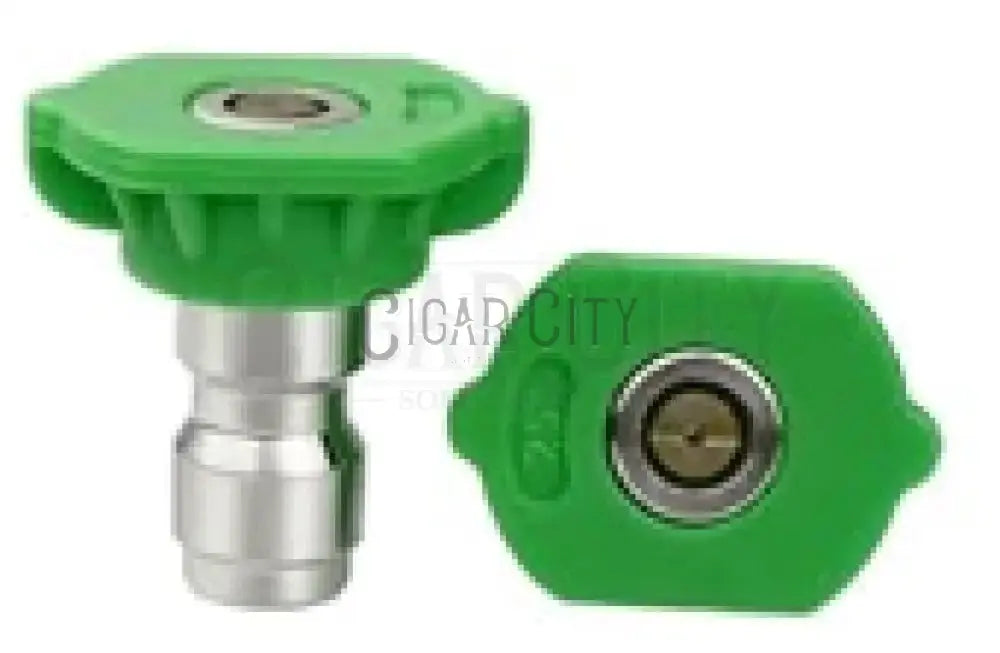

Green (25°): General-purpose cleaning
-

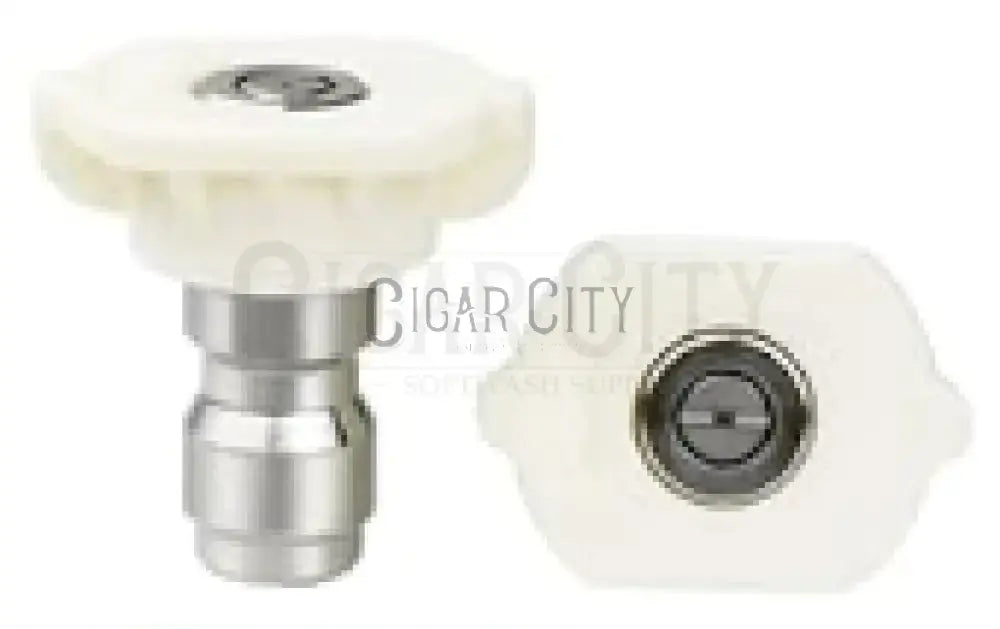

White (40°): Gentle rinse for soft surfaces
-

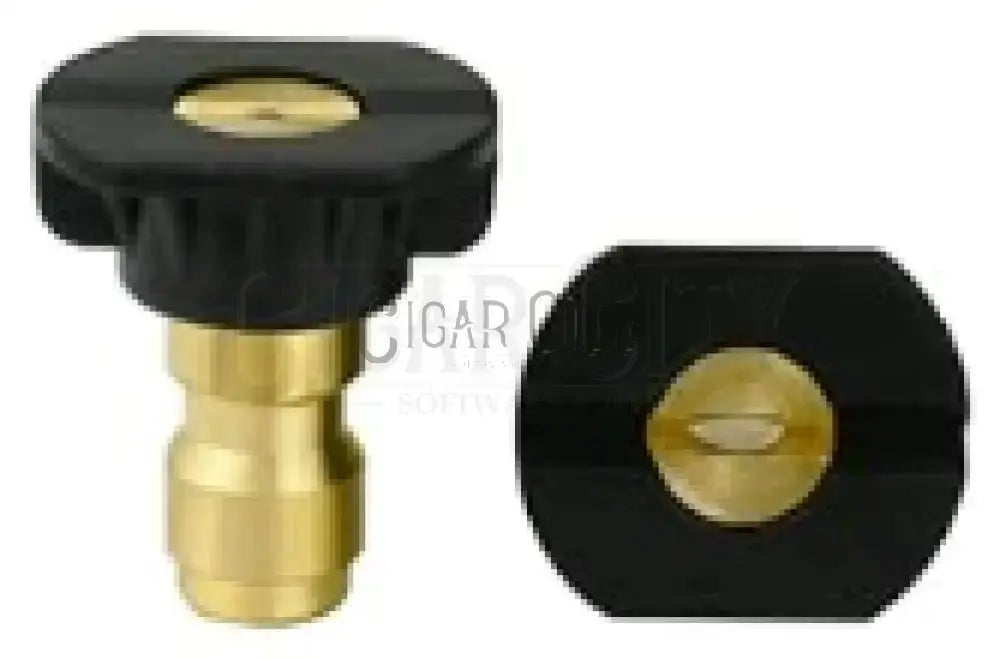

Black (65°): Low-pressure soap application
Key Benefits:
-
Universal 1/4″ quick-connect base fits most pressure washer wands
-
Color-coded design makes it easy to grab the right spray angle
-
Durable stainless steel orifice resists wear from chemicals and high PSI
-
Ideal for softwash, pressure wash, foam, and detergent systems
-
Compact storage size – fits in tool bags or nozzle holders
