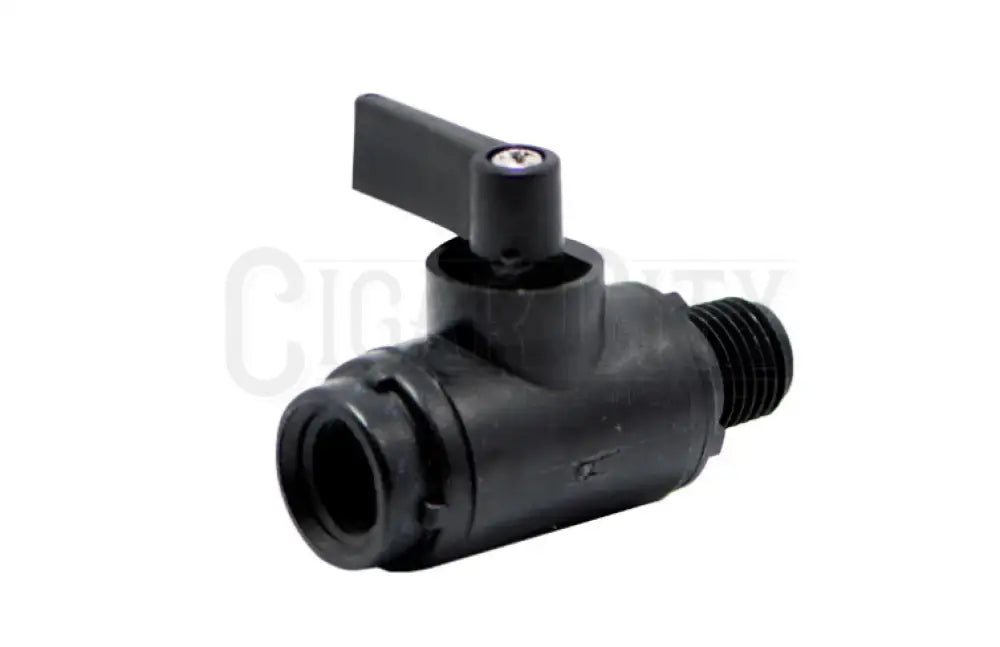

1/4″ FNPT x 1/4″ MNPT Polypropylene Ball Valve – Series 226 with Viton Seals

The 1/4″ FNPT x 1/4″ MNPT Series 226 Ball Valve is a compact, chemical-resistant shutoff valve made from durable polypropylene. Outfitted with Viton® seals, this valve is ideal for controlling flow in softwash systems, chemical sprayers, and low-pressure water or fluid transfer lines.

Includes:

• One (1) polypropylene ball valve

• Female NPT inlet x Male NPT outlet (1/4″)

• Viton® O-rings for chemical compatibility

• Molded polypropylene body for lightweight strength

Performance Specifications:

• Inlet: 1/4″ FNPT

• Outlet: 1/4″ MNPT

• Body Material: Glass-reinforced polypropylene

• Seal Material: Viton® (fluoroelastomer)

• Series: 226

• Pressure Rating: Up to 125 PSI

• Temperature Range: 0°F to 180°F

• Flow Control: Full port, 1/4-turn shutoff

Key Benefits:

• Excellent chemical resistance to surfactants, acids, and bleach

• Viton® seals provide superior sealing in harsh environments

• Compact and lightweight for small hose or tank assemblies

• Quarter-turn ball valve for fast open/close operation

• Corrosion-proof polypropylene for outdoor or mobile system use
