OVERVIEW & BENEFITS

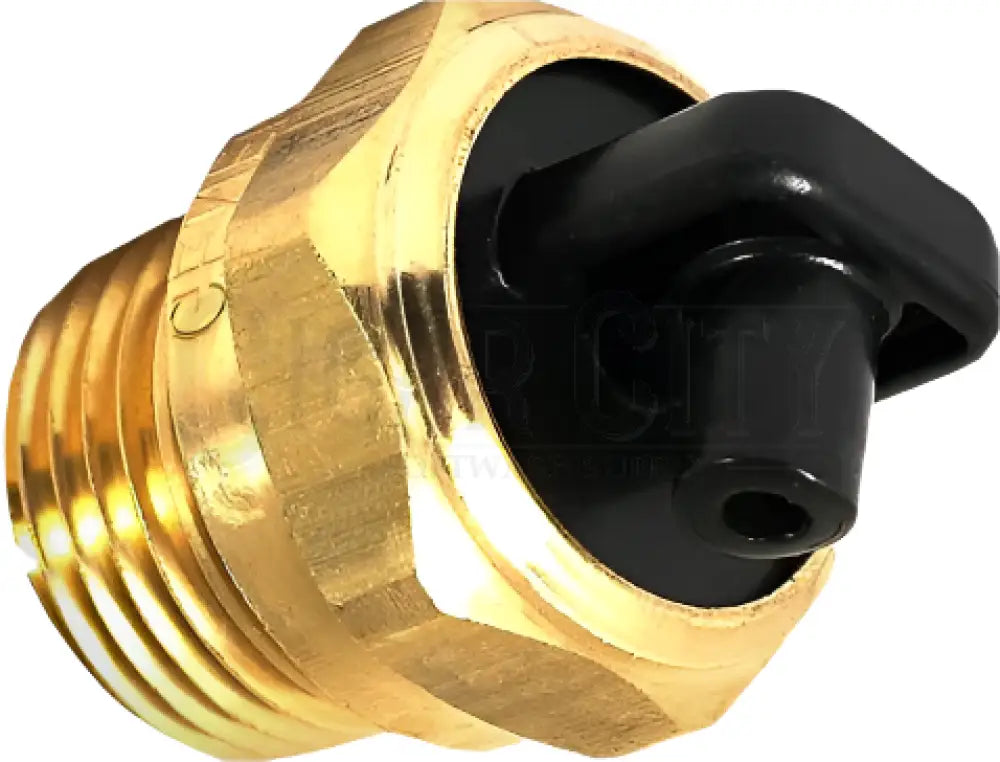

The General Pump 100558 Thermal Relief Valve is a compact, high-performance safety device designed to protect pressure washer and softwash systems from overheating. This thermal relief valve automatically opens at 145°F, allowing hot water to discharge and preventing damage to pumps and hoses.
Includes:
-
One (1) thermal relief valve
-
1/2″ Male NPT threaded inlet
-
Compact body design for tight installations
Performance Specifications:
-
Size: 1/2″ MPT (Male Pipe Thread)
-
Activation Temperature: 145°F (62.8°C)
-
Material: Brass body with internal stainless and high-temp components
-
Model Number: 100558
-
Brand: General Pump
-
Discharge Type: Poppet-style, automatic reset
-
Application: Pressure washer pumps, softwash pumps, or high-temp rinse systems
Key Benefits:
-
Protects pump systems from heat-related damage during bypass or extended idle
-
Automatically resets after cooling, no manual reset required
-
Compact size fits directly into pump manifold or discharge line
-
Rugged construction withstands demanding field environments
-
Easy to install on most 1/2″ MPT-compatible pumps or tees
