Teejet 1" 12V 3 Way Electric Shutoff Valve
Teejet 1" 12V 3 Way Electric Shutoff Valve
Regular price
$338.50
Regular price
Sale price
$338.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

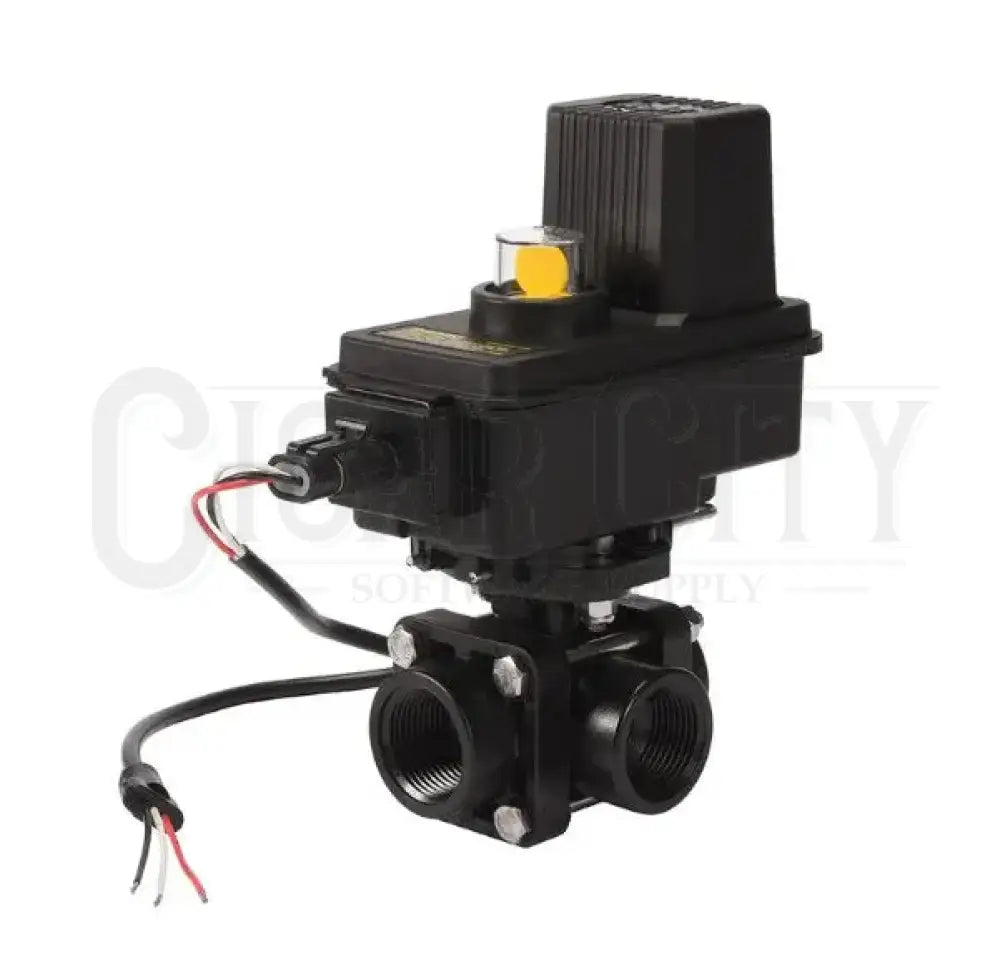

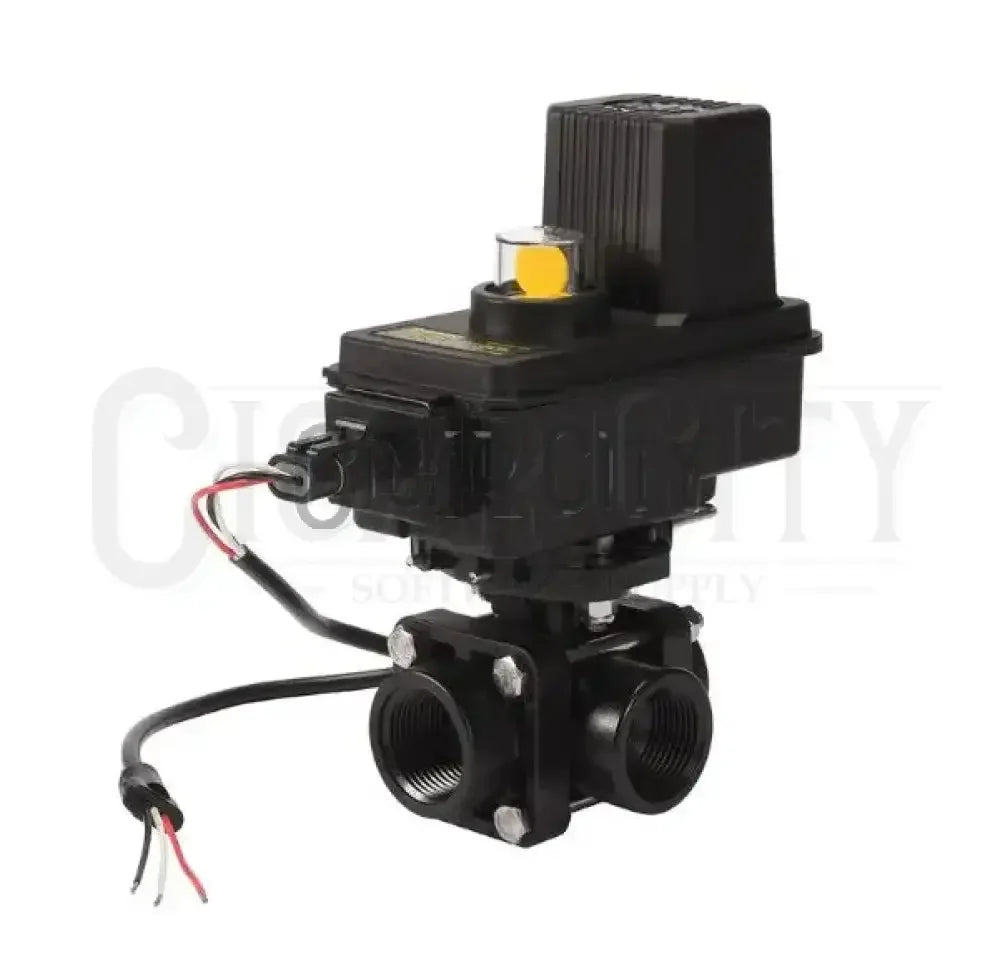

1" NPT Outlet Threads, 12 VDC 3-Way Valve, Polypropylene Ball, Positively Switched w/ 0.5-Meter Cable.
DirectoValve 344 Series Electric Shutoff Valve from Spraying Systems/TeeJet.
344B shutoff ball valves are available with E or EC Series motors and with cable or DIN electrical connections.
L shaped brackett CP98498SS.
Features:
-22RPM, 0.7 second shutoff fully open to close.
-Flexible inlet/outlets provide quick simple plumbing for a single valve.
-Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.
-Stainless steel stem with optional polypropylene or stainless steel ball.
-Maximum pressure rating is 300 psi (20 bar).
-The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop.
-The flow rate for the 344BEC 3-way valve is 24 GPM (91 l/min) with a 5 psi
DirectoValve 344 Series Electric Shutoff Valve from Spraying Systems/TeeJet.
344B shutoff ball valves are available with E or EC Series motors and with cable or DIN electrical connections.
L shaped brackett CP98498SS.
Features:
-22RPM, 0.7 second shutoff fully open to close.
-Flexible inlet/outlets provide quick simple plumbing for a single valve.
-Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.
-Stainless steel stem with optional polypropylene or stainless steel ball.
-Maximum pressure rating is 300 psi (20 bar).
-The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop.
-The flow rate for the 344BEC 3-way valve is 24 GPM (91 l/min) with a 5 psi
