Remote Thermostat 86-250 Degree

Remote Thermostat 86-250 Degree

Regular price $59.99
Regular price Sale price $59.99
Sale Sold out
Shipping calculated at checkout.


The thermostat turns the boiler on and off at a predetermined temperature by responding to the water temperature. Most thermostats have two major components, a switch and a sensor. Temperature changes affect the sensor, which in turn operates the switch. The rise in temperature creates a break in an electrical circuit to turn the boiler off. when the sensor cools, the circuit is completed and the burner resumes firing.

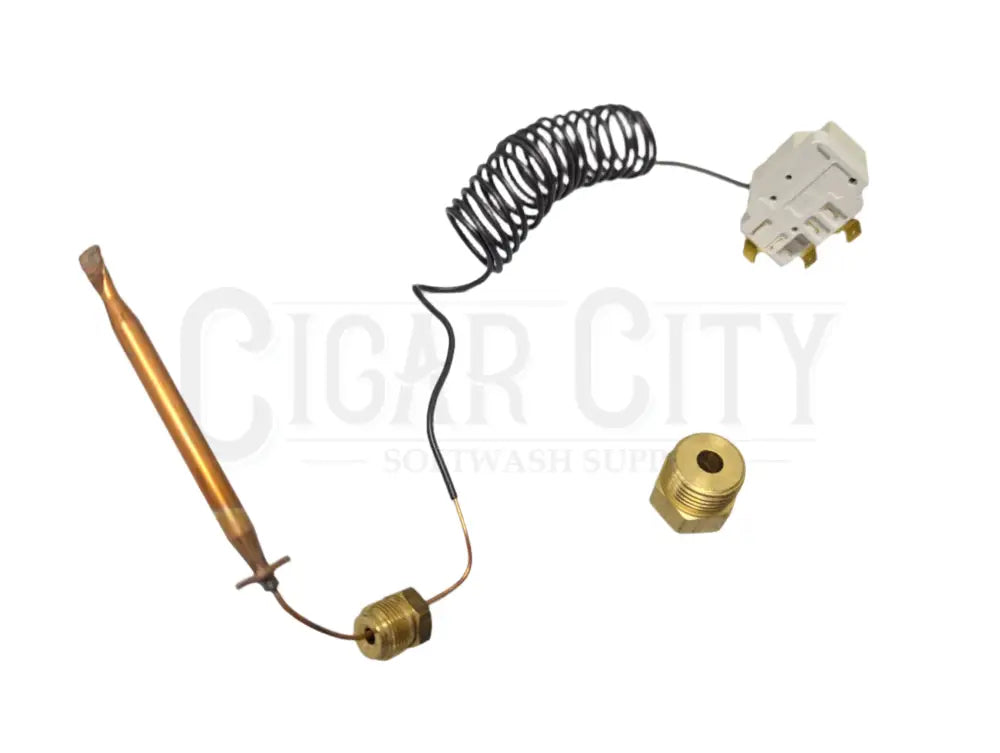

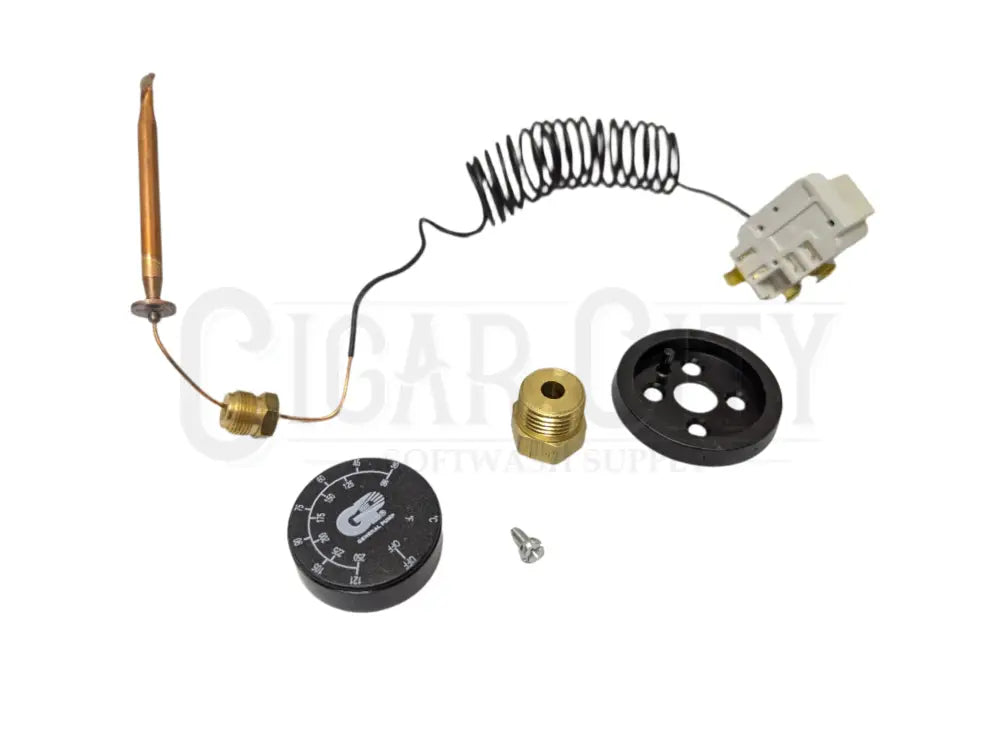

The GP Remote Probe Thermostat is a capillary tube thermostat. It relies on a viscous liquid to respond to temperature changes and open/close the switch. A capillary thermostat consists of a sensing bulb and tube with an extremely small internal diameter partially filled with a special compound, which expands when heated and activates the switch. This thermostat can be mounted at a distance from the sensing bulb.

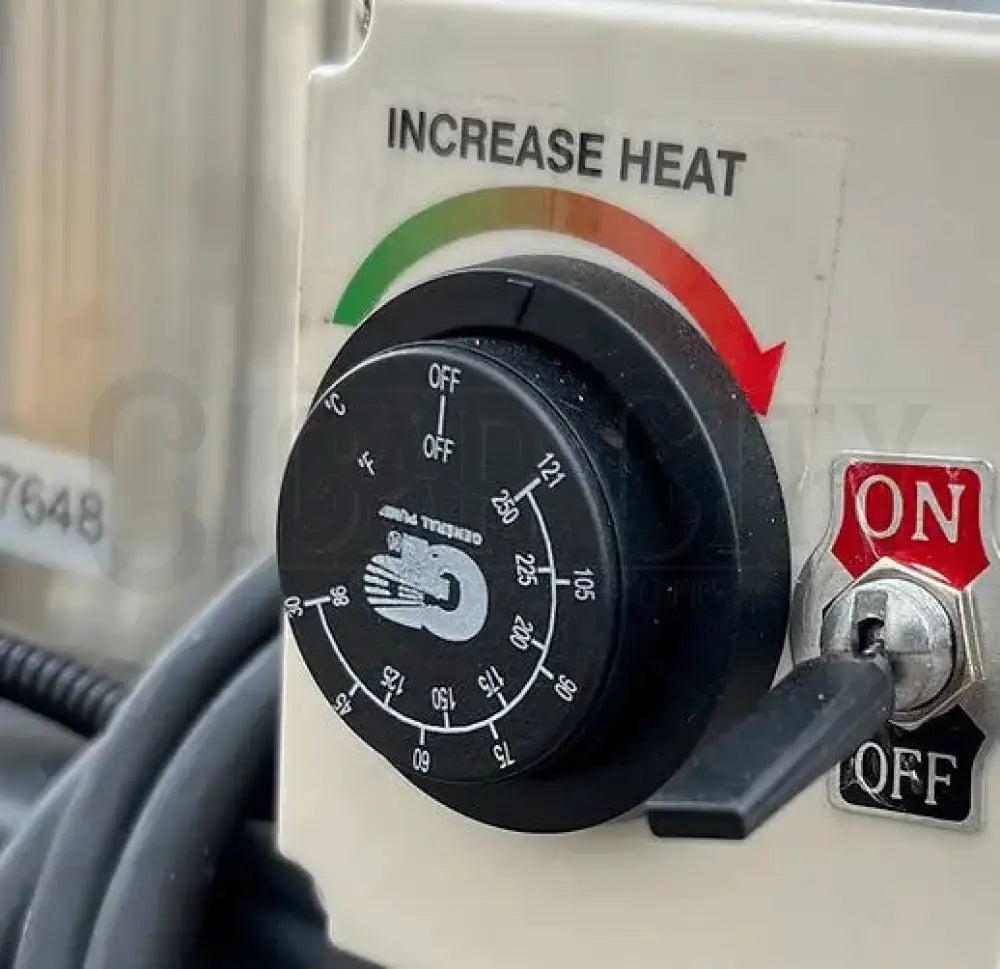

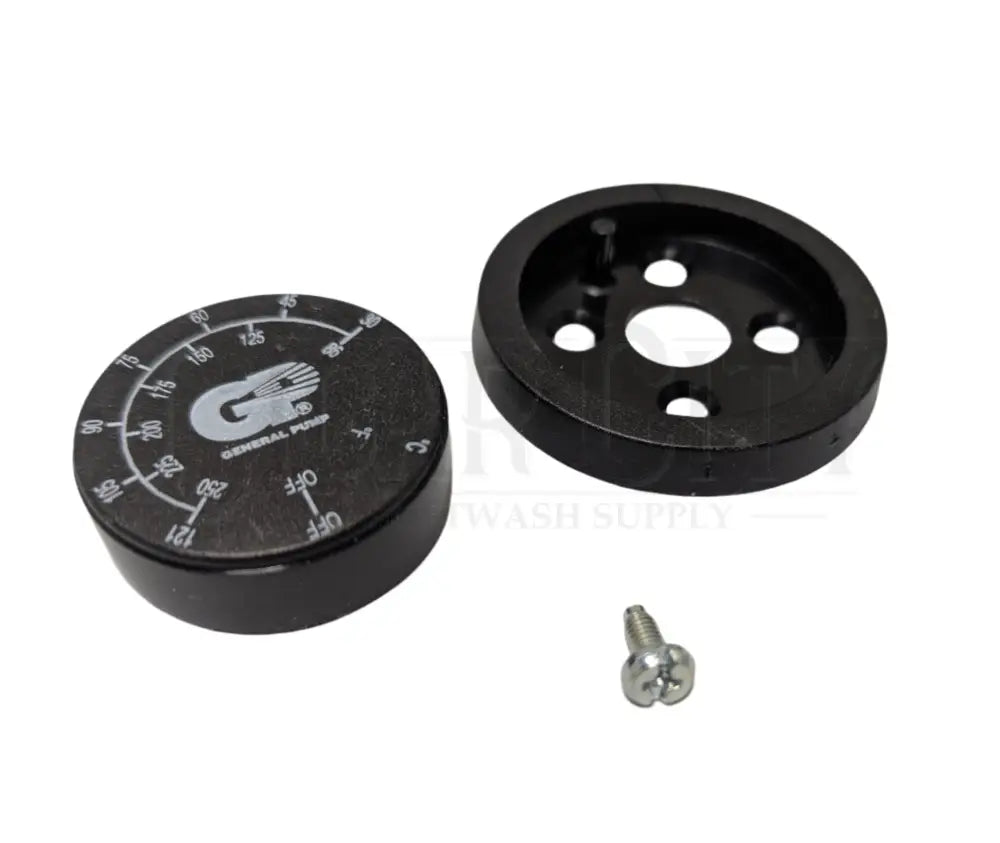

  • Panel mounted dual-scale knob
  • Rapid response
  • Nickel plated probe resists corrosion
  • 60 inch insulated capillary tube
  • UL/CAS approved
  • Temperature Range: 86 to 250 Degrees F.
  • Maximum Pressure: 4000 PSI
  • Electric Rating: 16(4)-380V
  • Sensing Element: Nickel-Plated Copper
