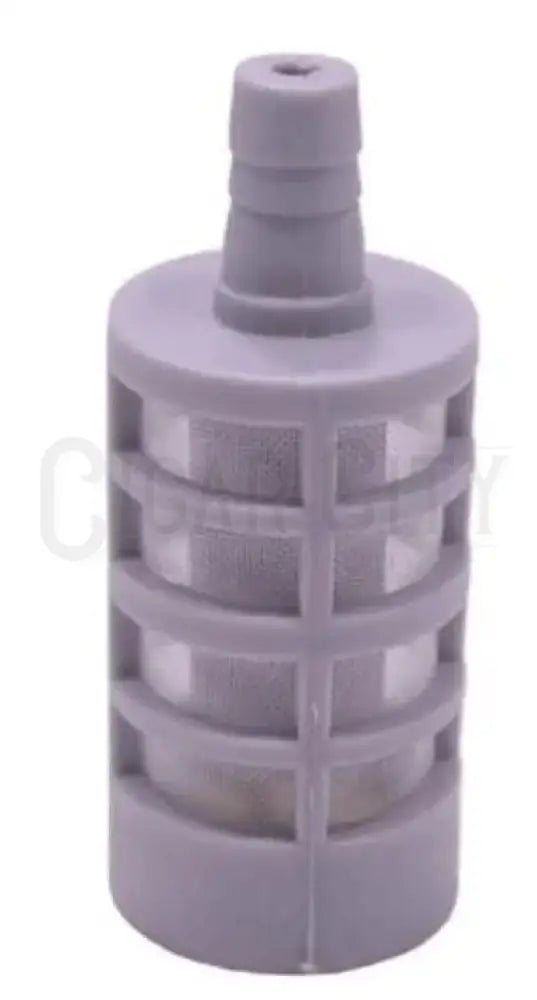

1/4″ Plastic Chemical Filter with Check Valve – Inline Suction Filter for Softwash Systems

The 1/4″ Plastic Chemical Filter with Check Valve is a compact inline suction filter designed to protect softwash and chemical injection systems from debris and backflow. Featuring an integrated check valve and mesh filter screen, this unit ensures smooth, debris-free chemical flow while preventing unwanted reverse siphoning.

Includes:

• One (1) 1/4″ barbed inline chemical filter

• Integrated check valve to prevent backflow

• Removable filter screen for easy cleaning

• Lightweight plastic body resistant to harsh chemicals

Performance Specifications:

• Inlet/Outlet: 1/4″ hose barb (fits 1/4″ ID tubing)

• Material: Chemical-resistant polypropylene or PVC plastic

• Check Valve: Integrated spring-loaded one-way valve

• Filter Type: Fine mesh screen (typically 50–100 mesh)

• Operating Pressure: Up to 150 PSI

• Temperature Range: 40°F to 120°F

• Application: Suction-side chemical filtration for softwash, metering pumps, bleach tanks

Key Benefits:

• Protects pump and nozzle components from debris and clogging

• Built-in check valve prevents chemical backflow and cross-contamination

• Transparent or semi-clear body for easy visual inspection

• Tool-free disassembly for quick cleaning and maintenance

• Compatible with SH, surfactants, and other softwash chemicals
